This 6-channel unit – loaded with unique features – produces warm audio full of energy and presence. So, take full control of your mix and get ready to create something the crowd has never heard before – either performing solo or back-to-back with another DJ.

KEY FEATURES

ELITE SOUND QUALITY

Feel the warmth of natural sound and hear every detail. Studio-quality 64-bit mixing and dithering processing, 32-bit high-quality A/D and D/A converters, a low-jitter clock circuit, and many other components all work to  produce a full low-end, vibrant mids, and precise highs.

6 CHANNELS WITH A WIDE RANGE OF INPUTS

You’re free to create your perfect setup with 6 channels and a host of different input types.

4-BAND EQ AND COMPRESSOR

Take full control of your mix with the newly developed 4-band EQ. A built-in compressor enables further adjustment of the loudness of your tracks.

EFFECTS FOR MORE CREATIVE EXPRESSION

The expanded send/return section enables you to add external FX, or even combine them with built-in FX. Create unique sounds; the possibilities are nearly limitless

3-BAND MASTER ISOLATOR

Effortlessly control the tone of your entire mix with the 3-band master isolator, featuring new boost/cut curves and adjustments to the crossover frequencies and other parameters. Grab the large dials and drive the crowd wild by drastically changing the sound.

DUAL HEADPHONES OUTPUT AND BOOTH EQ

The DJM-V10 makes back-to-back monitoring simple and comfortable. You can tweak the sound in the DJ booth just the way you like.

Lockable power cable

A lockable power cord is included for added reliability and to avoid accidental disconnections.

*In selected regions, a non-lockable power cable is supplied instead.

DJM-REC compatible

Record and archive your mixes via iPhone or iPad, upload your sounds to cloud services or effortlessly live-stream your sessions. Find out more.

rekordbox

Make full use of rekordbox's low-latency DVS feature for intuitive, smooth scratching. Find out more.

Serato DVS-ready

Use Serato DVS to control and scratch with CDJs or turntables (Serato DJ Club Kit license required, available separately).

TRAKTOR DVS-ready

Enjoy DVS control via Native Instruments’ TRAKTOR PRO 3 (available separately) . Use it to intuitively control and scratch with digital audio files stored on your computer. Find out more about the Pioneer DJ Certified program.

ShowKontrol

The DJM-V10 supports the extended PRO DJ LINK ShowKontrol protocol. This enables DJs, technical producers, LJs, and VJs to use all the key information from the DJM-V10, such as fader and knob positions, to align sound and visuals to create shows that blow audiences away.

SPECIFICATIONS

Main Features: MIDI Control

Full assignable: MIDI controls

ProDJ Link: Yes

Booth EQ: Yes

P-Lock Fader Caps: Yes

Auto Standby: Yes

DVS Control: rekordbox

Serato DJ Pro

TRAKTOR PRO 3

What's in the Box

DJM-V10

Power Cord

Warranty (for some regions)

Quick Start Guide

Precautions for Use

Specifications

Sampling Rate: 96 kHz

Width: 437.6 mm

Height: 107.9 mm

Depth: 467 mm

Weight: 11.9 kg

Frequency Range: 20 - 40000 Hz

A/D Converter: 32 bit

D/A Converter: 32 bit

S/N Ratio Line: 105 dB

S/N Ratio Phono: 88 dB

S/N Ratio Mic: 79 dB

Distortion: < 0.005 % (LINE)

Channels; EQ4 band, EQ Range

[Hi/Low] -∞ ~ +6 dB / [Hi Mid/Low Mid] -26 dB ~ +6 dB dB

COMP: Yes

Performance Control: Channels 6

Filter: HPF. LPF

SEND

Short Delay

Long Delay

Dub Echo

Reverb

2 Externals (1/4-inch TS jack)

MULTI I/O

1/4-inch jack

USB (Type A)

Beat FX

Delay

Echo

Ping Pong

Spiral

Helix

Reverb

Shimmer

Flanger

Phaser

Filter

Trans

Roll

Pitch

Vinyl Brake

FX Frequency: Yes

X-PAD: Yes

rekordbox Quantize: Yes

Master Isolator: Yes

Crossfader Type: Magvel Fader

Curve Assignable: Yes

Fader Curve: 3

Mic Connection: XLR / 1/4-inch Jack Combo, 1/4-inch TRS Jack, Talkover

3 Position Switch

Talkover Attenuator: Yes

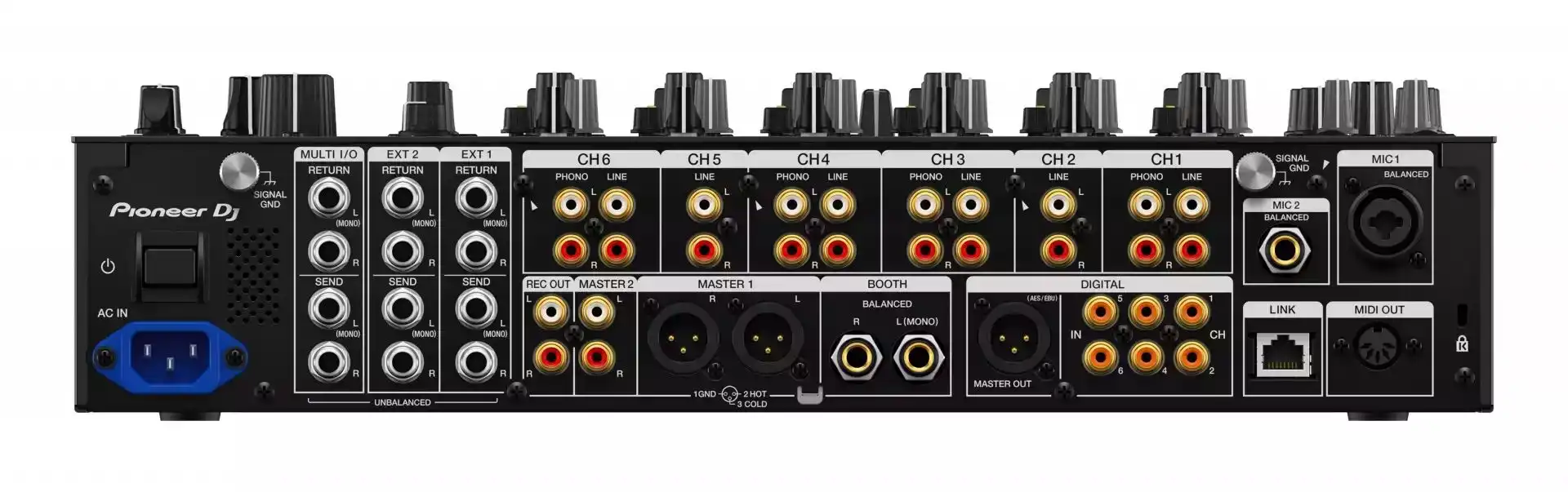

Terminals

Inputs

6 DIGITAL (Coaxial)

6 LINE (RCA)

4 PHONO (RCA)

Send/Return

3 SEND (1/4-inch TS jack)

3 RETURN (1/4-inch TS jack)

LAN: 1

USB

2 USB B ports

1 USB A port

Outputs

2 MASTER (XLR, RCA)

1 BOOTH (1/4 inch TRS Jack)

4 HEADPHONE MONITOR (1/4 inch Jack, mini-jack)

1 REC OUT (RCA)

1 DIGITAL (AES/EBU)

1 MIDI (DIN)
