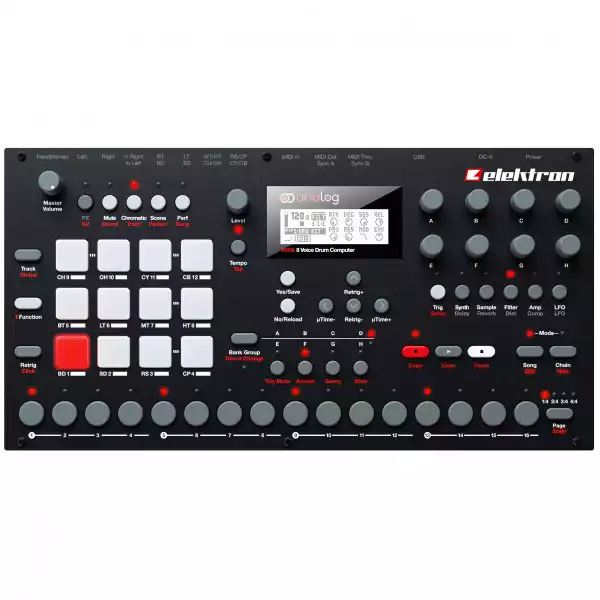

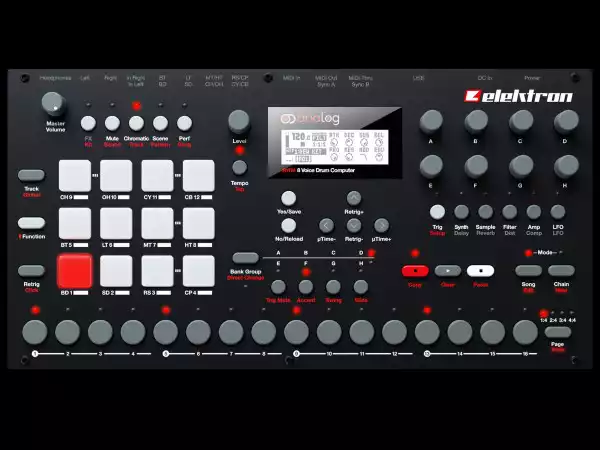

The Analog Rytm is a one stop solution beat machine. Distinguished by the power of analog drum sounds fused with samples. Perfected by the immediacy of drum pads coupled with Elektron sequencing. The depth of the kick drums, the bite of the snare drums, those cavernous toms, the airy shimmer of the hihats. The meticulously engineered analog circuit designs make the Analog Rytm come alive. Let us be clear. The eight drum voices sound brilliantly deep

Elevated by samples

For ultimate percussive flexibility, every drum voice can be spiced up with customizable samples. Fill the sample storage to the brim and explore completely new sound territories. The perfect unity of analog drum sounds and samples simply goes beyond.

Maximized playability

Twelve drum pads offer a quick and spontaneous way of creating rhythms. And the Elektron step sequencer stands ready for grid based action. The combination gives both instant results and the opportunity of detailed editing. The perfect beat awaits.

Stats at a glance

• 8 drum voices
• 1x analog percussion sound generator per voice
• 1x analog multimode filter per voice
• 1x analog overdrive per voice
• 1x filter envelope per voice
• 1x amp envelope per voice
• 1x LFO per voice

• Sample playback per voice
• 12 track Elektron sequencer
• 12x velocity & pressure sensitive pads
• Reverb & delay send FX
• Analog master compression & distortion
• Chromatic, performance, scene modes

Drum voice features (×8)

• Fully analog signal path
• 1× specialized analog percussion sound generator
• 1× sample playback engine
• 1× analog overdrive circuit
• 1× 2-pole analog multi-mode filter
• 1× panning VCA pair
• 1× filter envelope
• 1× amp envelope
• 2× individual effect sends
• 1× assignable LFO
• 1× dedicated LFO fade envelope

Storage

• 128 Projects (+Drive)
• 128 Kits per Project
• 128 Patterns per Project
• 16 Songs per Project
• 4096 Sounds (+Drive Sound Library)
• 128 Sounds per Project
• 127 samples per Project
• 1 GB +Drive sample storage
• 127 factory samples

Send effects

• Send Effects
• Delay
• Reverb

Master effects

• Analog stereo distortion
• Analog stereo compressor

Sequencer

• 12 drum tracks
• 1 FX track
• Up to 64 steps per pattern
• Individual track lengths
• Trig mute, accent, swing, slide functions
• Micro timing
• Parameter locks
• Chromatic mode
• Scene mode
• Performance mode
• Sound-per-step change
• Assignable Retrig
• Instant Pattern, Kit and Sound reload
• Full real-time control

Hardware

• 12 velocity, pressure sensitive, and backlit pads
• 122×32 pixel backlit LCD
• MIDI In/Out/Thru with DIN Sync Out
• 2 × 1/4″ impedance balanced main out jacks
• 4 × 1/4″ dual mono separate voice out jacks
• 1 × 1/4″ audio in stereo jack
• 1 × 1/4″ stereo headphone jack
• 48 kHz, 24-bit D/A and A/D converters
• Flash-EEPROM upgradable OS
• USB 2.0 port

Balanced audio outputs

• Headphones out level: +15 dBu (55 Ω )
• Main outputs level: +15 dBu
• Output impedance: 440 Ω unbalanced

Unbalanced audio inputs

• Input level: +15 dBu maximum
• Audio input impedance: 9 k Ω

Electrical specifications

• Unit power consumption: 14 W typical, 20 W maximum.
• Recommended power supply: 12 V DC, >2 A

Physical specifications

• Sturdy steel chassis
• Dimensions: W340× D176× H63mm (13.4×6.9×2.4″ ) (including power switch, knobs and rubber feet)
• Weight: approximately 2.4 kg (5.3 lbs)
