SPL Director Mk2 Black DAC - Pretpojačalo
Aktualna cijena vrijedi za gotovinsko, virmansko ili jednokratno kartično plaćanje. Za obročno kartično plaćanje primjenjuje se navedena cijena za obročno plaćanje.
JAMSTVO NAJNIŽE CIJENE
Pronašli ste isti proizvod po nižoj cijeni? Kontaktirajte nas.
Ako pronađete isti proizvod, u istoj konfiguraciji i pod usporedivim uvjetima kupnje, po nižoj javno dostupnoj cijeni kod drugog trgovca u Republici Hrvatskoj, javite nam se prije kupnje.
Nakon provjere ponude, nastojat ćemo vam ponuditi povoljniju cijenu.
info@player.hr
The director sets the tone.

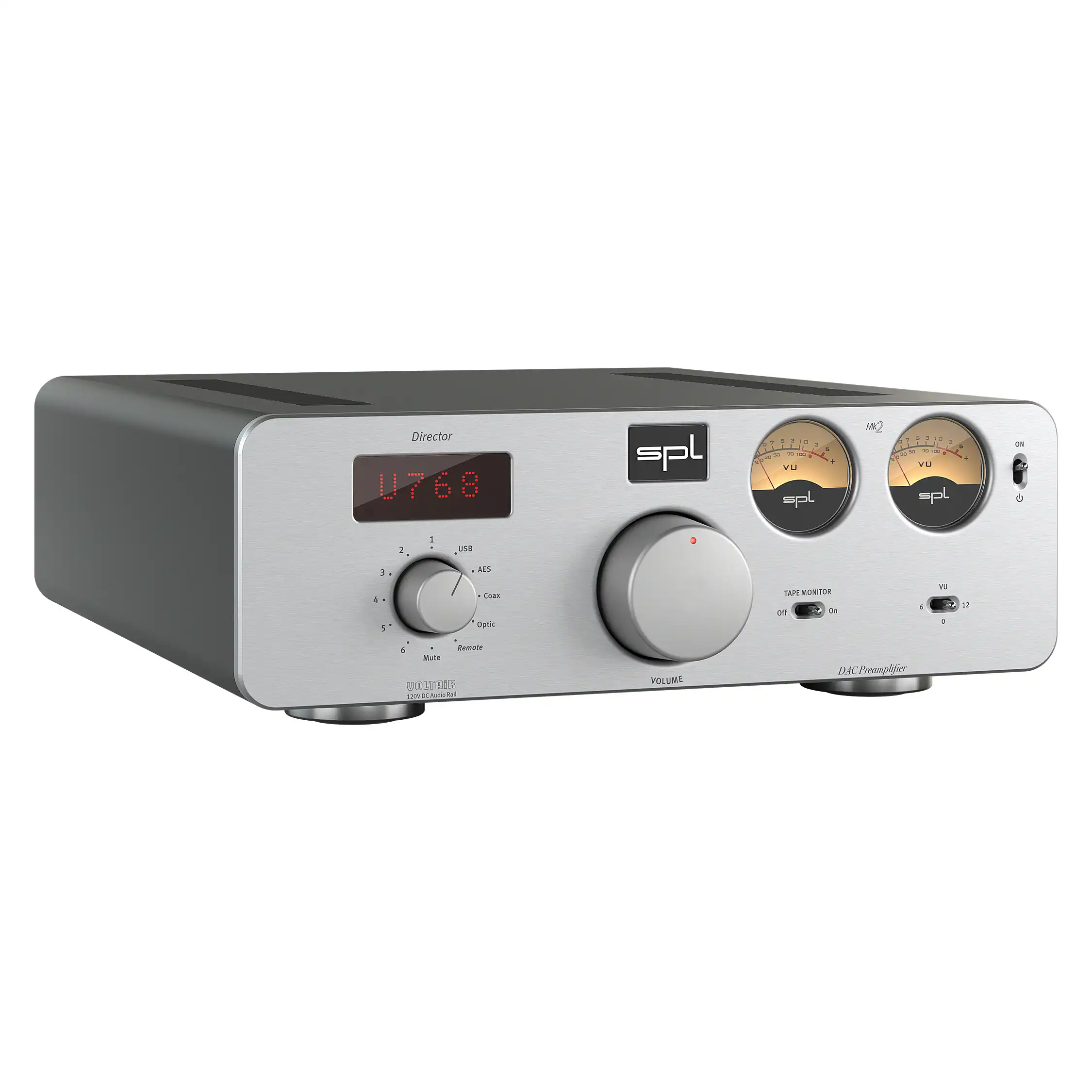

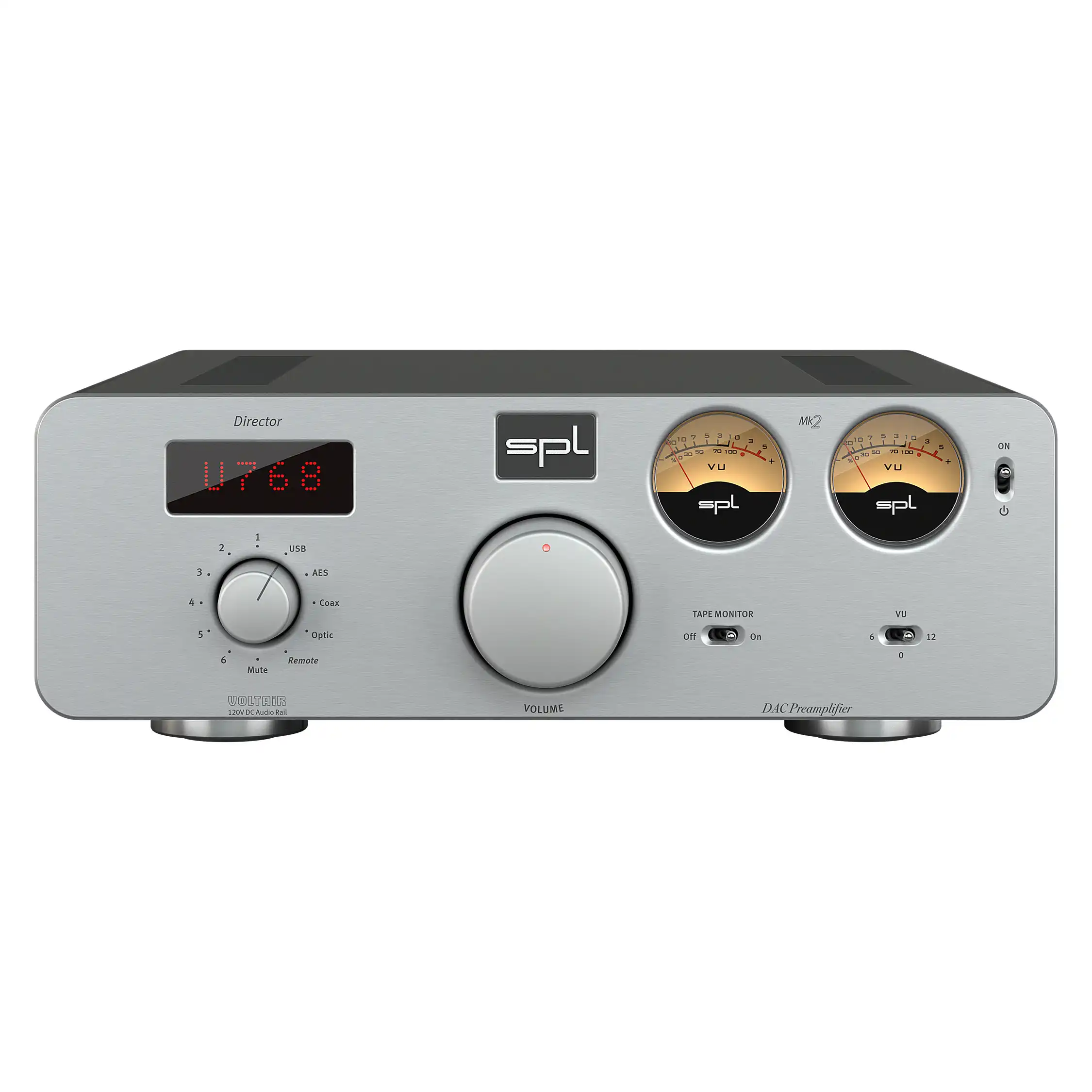

The central unit of the HiFi system is the preamplifier. With remote source selection and volume control, tape monitor path, retro-look-VU-meters, premium DA-converter and the all superior VOLTAiR technology, the Director Mk2 caters for musical blockbusters.

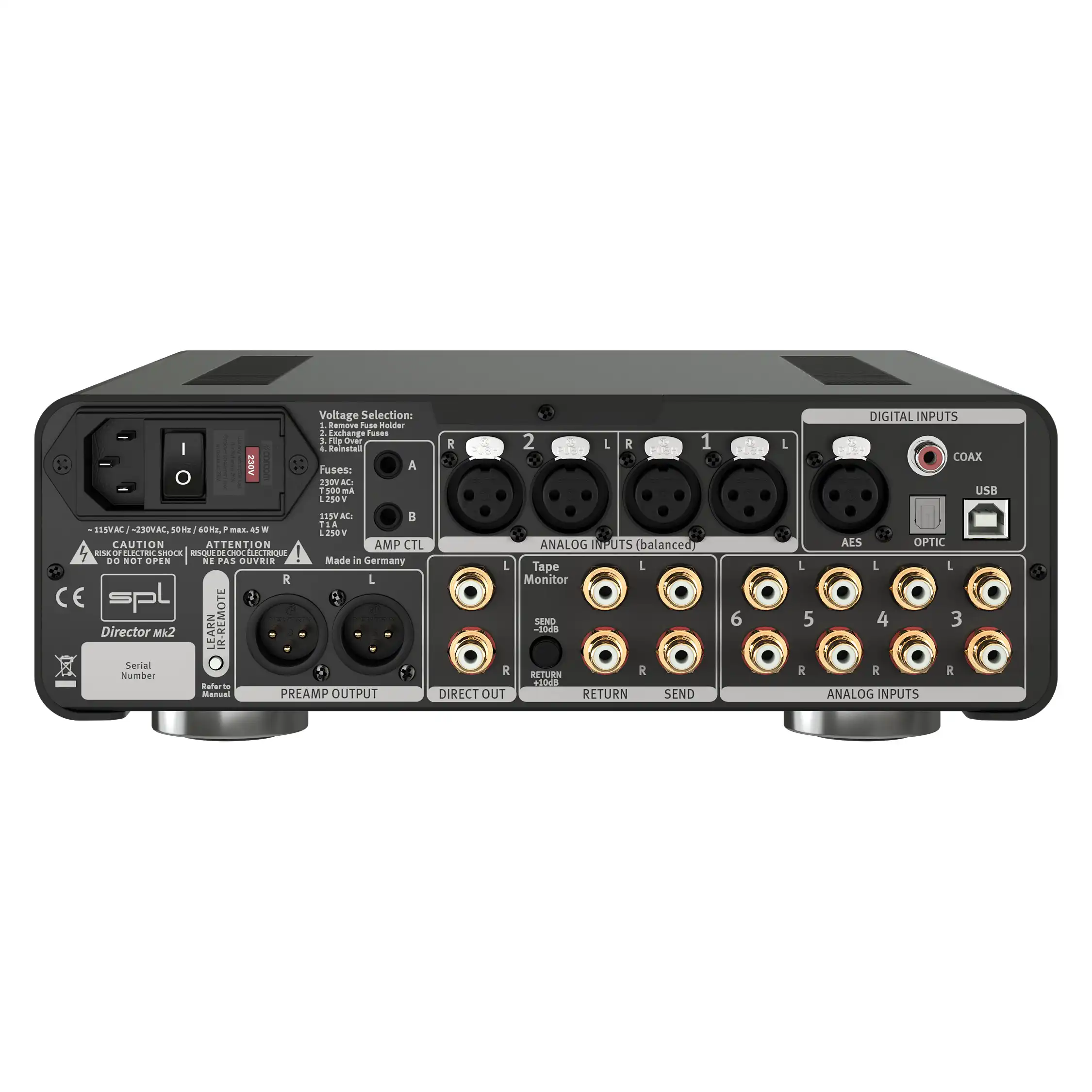

Analog Inputs & Outputs: XLR (balanced), RCA
Maximum input & output gain: 32.5 dBu
Input impedance (RCA): 47 kΩ
Input impedance (XLR): 20 kΩ
Output impedance: 75 Ω
Common mode rejection (XLR): -81 dBu
Frequency range (0 dBu): 10 Hz – 100 kHz
Crosstalk (0 dBu, 1 kHz): -103 dBu
THD + N (0 dBu, 1 kHz, analog): 0.0030 %
THD + N (0 dBu, 1 kHz, digital): 0.0016 %
Noise (A-weighted): -99 dBu
Dynamic range: 132 dB
Digital Inputs, DAC768
AES/EBU (XLR), PCM sample rates: 44.1/48/88.2/96/176.4/192 kHz
Coaxial SPDIF (RCA), PCM sample rates: 44.1/48/88.2/96/176.4/192 kHz
Optical SPDIF (Toslink F06), PCM sample rates: 44.1/48/88.2/96/with Glass fibre <1m: 176.4/192 kHz
USB (B), PCM sample rates: 44.1/48/88.2/96/176.4/192/352.8/384/705.6/768 kHz
USB (B), DSD over PCM (DoP), sample rates: 2.8 (DSD64), 5.6 (DSD128), 11.2 (DSD256) MHz
0 dBFS calibrated to: 15 dBu
Internal Linear Power Supply with Shielded Toroidal Transformer
Operating voltage for analog audio: +/- 60 V
Operating voltage for relays and LEDs: + 12 V
Mains Power Supply
Mains voltage (selectable, see fuse chamber): 230 V AC / 50; 115 V AC / 60 Hz
Fuse for 230 V: T 0.5 A
Fuse for 115 V: T 1 A
Power consumption: max. 40 VA
Stand-by power consumption: < 0.3 W
Dimensions & Weight
W x H x D (width x height incl. feet x depth): 278 x 100 x 300 mm
Unit weight: 4.55 kg
Shipping weight (incl. packaging): 5.9 kg
