ASTEROID 3000
TACKASTI LASER - ZELENA I CRVENA DIODAFalling star
Laser burst universe
STAR series, from the standard laser effect, we add the feeling of 3D, inside we use high precision grating technology, the beam angle is very wide >60 degree high power endurable, when no signal from the DMX512, The effect is similar to one of a laser being shone on a mirror ball.
SPECIFIKACIJE:
Glavni ulaz: AC100-240V, 50/60Hz
Osiguraĉ: 250V 1A Slow Blow (20mm Glass)
Ukupna snaga: 30W
Kontrola muzike: Internal microphone
Snaga lasera: 40mW 532nm Green CW 100mW 650nm Red CW
Klasifikacija lasera: Clasa 3B
Standard sigurnosti: EN60825-1 2007
Temperatura: 10~40

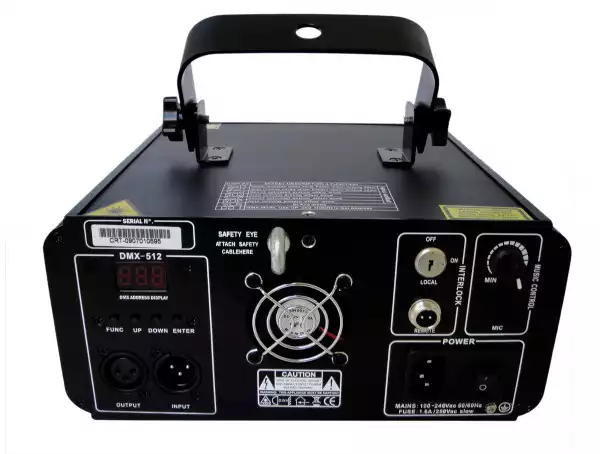

DMX konekcija: 3 pins XLR Male/Female
DMX kanali: 6 / 10 / 9 kanalaTezina: 2.6 Kg
SPECIFICATIONS:
Laser Power：50mW-G+100mW-R Laser color: Green and Red Rating Power：25W Laser Modulation：TTL Modulation Signal，Frequency 0～1KHz Scan System：High speed step motor drive and grating scan Control Port: DMX512 input and output port Interlock Emergency switching port Control Mode：Inside 4 in one mode DISCO Pub Sound control Mixture Standard DMX512 signal Control Control Function: precision Step motor to orientation. Multi laser work together with out cable. Safety：Blanking, Auto Blackout in Client Demo Effect：Blanking rotating zoom retroflexion moving strobe ,Creat light wall and light tunnel and cloud sea with the fog. Power：AC100V-240V ，50Hz～60Hz Work Environment：10～40°C Indoor Workplace： KTV Room, DISCO, Pub, Night Club, Family party etc Size：240×220×120mm Weight：2.8kg
Download:Uputstvo za upotrebuEnglish Manual
