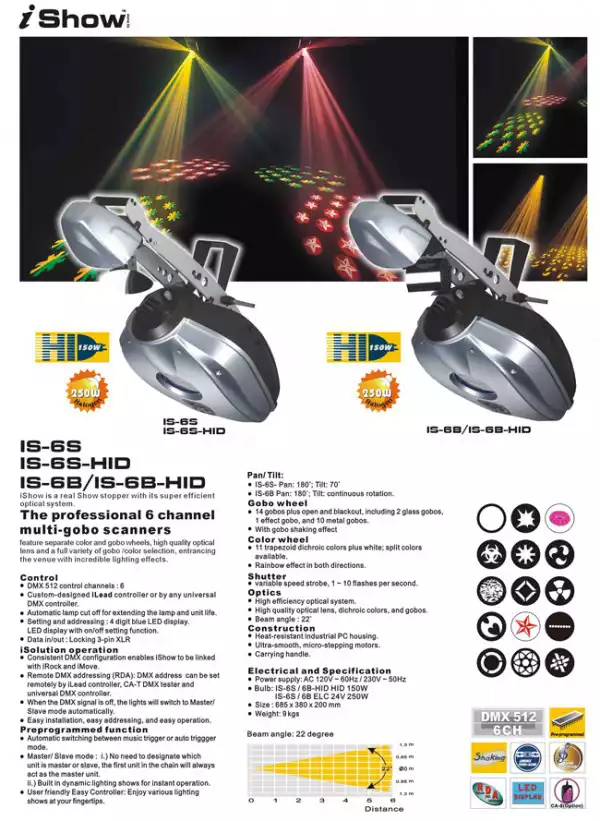

Control
DMX 512 control channels : 6
Custom-designed iLead controller or universal DMX controllers.
Automatic lamp off in standby for extending the lamp and unit life.
Setting and addressing : 4 digit blue LED display. LED display with on/off setting function.
Data in/out : Locking 3-pin XLR
iSolution operation:
Consistent DMX configuration enables iShow to be linked with iRock and iMove.
DMX address can be set remotely by iLead controller. No need to calculate the DMX channels of each fixture in the chain.
When the DMX signal is off, the lights will switch to Master/Slave mode automatically.
Easy installation, easy addressing, and easy operation.
Pre-programmed function
Automatic switching between music trig or auto trig mode.
Master/ Slave mode :
i.) No need to designate which unit is master or slave, the first unit in the chain will always act as the master unit.
ii.) Built in dynamic lighting shows for instant operation.
User friendly Easy Controller: Enjoy various lighting shows at your fingertips. Please refer to the diagram below.
Pan/ Tilt:
IS-6S- Pan: 180°; Tilt: 70°
IS-6B Pan: 180°; Tilt: continuous rotation.
Gobo wheel:
14 gobos plus open and blackout, including 1 replaceable gobo, 2 glass gobos, 1 effect gobo, and 10 metal gobos.
With gobo shaking effect
Color wheel:
11 trapezoid dichroic colors plus white; split colors available.
Rainbow effect in both directions.
Shutter
variable speed strobe, 1 ~ 10 flashes per second.
Optics:
High efficiency optical system.
High quality optical lens, dichroic colors, and gobos.
Beam angle : 22°
Construction:
Heat-resistant industrial PC housing.
With ultra-smooth, micro-stepping motors.
Carrying handle.
Electrical and Specification:
Power supply: AC 120V ~ 60Hz / 230V ~ 50Hz
Bulb : ELC 24V 250W
Size : 685 x 380 x 200 mm
Weight: 9.4 kgs
