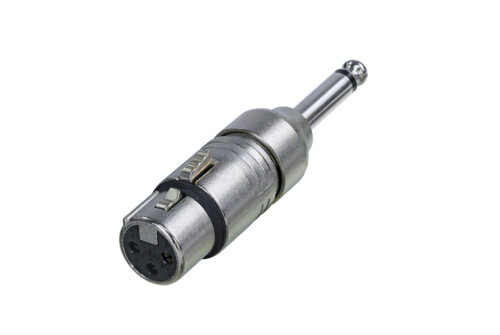

Neutrik NA2FP
Šifra: 18166
0.00 EUR
*Cijena sa popustom može se ostvariti ukoliko se plaća gotovinom, virmanom (preko računa) ili debitnom i kreditnom karticom odmah i odjednom.
Prikazana cijena je za komad.
Garantiramo najnižu cijenu na tržištu!
U slučaju da pronađete isti proizvod po povoljnijoj cijeni,
molimo Vas da nas kontaktirate na:
info@player.hr
3 pole XLR female – Mono 1/4" plug (tip, sleeve contact)
Wired according to IEC 268-12:
Pin 2: signal
Pin 1 and 3: connected to ground
| Product | |
| Title | NA2FP |
| Connection Type | Adapter |
| Electrical | |
| Contact resistance | ≤ 3 mΩ (XLR) |
| Contact resistance | ≤ 6 mΩ |
| Dielectric strength | 1.5 kV dc / > 1 kVdc (XLR/Plug) |
| Insulation resistance | > 2 GΩ |
| Mechanical | |
| Wiresize | |
| Wiring | according to IEC 268-12 pin 2 = signal, pin 1 and 3 connected to ground |
| Locking device | Latch lock |
| Material | |
| Contact plating | 2 µm Ag over 2 µm Ni |
| Contacts | Brass (CuZn39Pb3) (plug) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | gal Cu/Ni |
| Environmental | |
| Temperature range | -20 °C to +65 °C |
