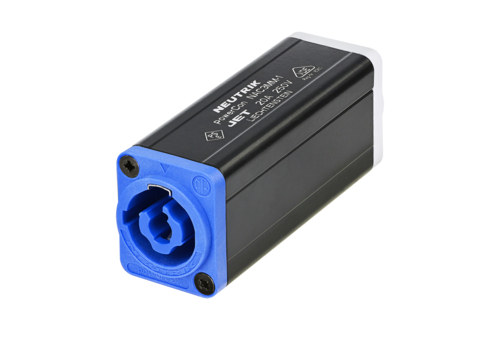

Neutrik NAC3MM-1
Šifra: 18165
0.00 EUR
*Cijena sa popustom može se ostvariti ukoliko se plaća gotovinom, virmanom (preko računa) ili debitnom i kreditnom karticom odmah i odjednom.
Prikazana cijena je za komad.
Garantiramo najnižu cijenu na tržištu!
U slučaju da pronađete isti proizvod po povoljnijoj cijeni,
molimo Vas da nas kontaktirate na:
info@player.hr
powerCON NAC3MPXXA (power in) - powerCON NAC3MPXXB (power out), CBC coupler for linking power cables with NAC3FXXA/B.
| Product | |
| Title | NAC3MM-1 |
| Connection Type | Adapter |
| Gender | male |
| Electrical | |
| Contact resistance | ≤ 3 mΩ |
| Dielectric strength | 4 kVdc |
| Insulation resistance | > 0.1 GΩ (after damp heat test IEC 68-2-30) |
| Rated current per contact | 16 A rms |
| Rated voltage | 250 V ac |
| Mechanical | |
| Lifetime | > 1000 mating cycles |
| Locking device | Quick Lock |
| Material | |
| Contact plating | 2 µm Ag |
| Locking element | Steel Ck67 |
| Shell | Polyamide (PA 6.6 30 % GR) |
| Contacts | Bronze (CuNi1Si0.2) |
| Environmental | |
| Flammability | UL 94 V-0 |
| Protection class | IP 20 (mated) |
| Safety Requirements | EN/IEC 61984 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 °C to +80 °C |
