Neutrik NC3FXX-B
Aktualna cijena vrijedi za gotovinsko, virmansko ili jednokratno kartično plaćanje. Za obročno kartično plaćanje primjenjuje se navedena cijena za obročno plaćanje.
JAMSTVO NAJNIŽE CIJENE
Pronašli ste isti proizvod po nižoj cijeni? Kontaktirajte nas.
Ako pronađete isti proizvod, u istoj konfiguraciji i pod usporedivim uvjetima kupnje, po nižoj javno dostupnoj cijeni kod drugog trgovca u Republici Hrvatskoj, javite nam se prije kupnje.
Nakon provjere ponude, nastojat ćemo vam ponuditi povoljniju cijenu.
info@player.hr

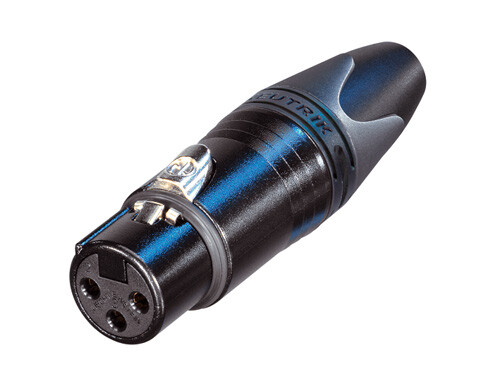

3 pole female cable connector with black metal housing and gold contacts.
The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
| Product | |
| Title | NC3FXX-B |
| Connection Type | XLR |
| Gender | female |
| Electrical | |
| Capacitance between contacts | ≤ 4 pF |
| Contact resistance | ≤ 3 mΩ |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 10 GΩ (initial) |
| Rated current per contact | 16 A |
| Rated voltage | < 50 V |
| Mechanical | |
| Cable O.D. | 3.5 - 8.0 mm |
| Insertion force | ≤ 20 N |
| Withdrawal force | ≤ 20 N |
| Lifetime | > 1000 mating cycles |
| Wiresize | max. 2.5 mm² |
| Wiresize | max. 14 AWG |
| Wiring | Solder contacts |
| Locking device | Latch lock |
| Material | |
| Boot | Polyurethan |
| Contact plating | 0.2 µm Au hard alloy over 2 µm Ni |
| Contacts | Bronze (CuSn8) |
| Insert | Polyamide (PA66) |
| Locking element | Zinc diecast (ZnAl4Cu1) / Ck 67 (spring) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell coating | Black KTL |
| Strain relief | Polyacetal (POM) |
| Environmental | |
| Flammability | UL 94 V-0 |
| Standard compliance | IEC 61076-2-103 |
| Protection class | IP 40 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 °C to +80 °C |
