Neutrik NJ3FP6C
Aktualna cijena vrijedi za gotovinsko, virmansko ili jednokratno kartično plaćanje. Za obročno kartično plaćanje primjenjuje se navedena cijena za obročno plaćanje.
JAMSTVO NAJNIŽE CIJENE
Pronašli ste isti proizvod po nižoj cijeni? Kontaktirajte nas.
Ako pronađete isti proizvod, u istoj konfiguraciji i pod usporedivim uvjetima kupnje, po nižoj javno dostupnoj cijeni kod drugog trgovca u Republici Hrvatskoj, javite nam se prije kupnje.
Nakon provjere ponude, nastojat ćemo vam ponuditi povoljniju cijenu.
info@player.hr

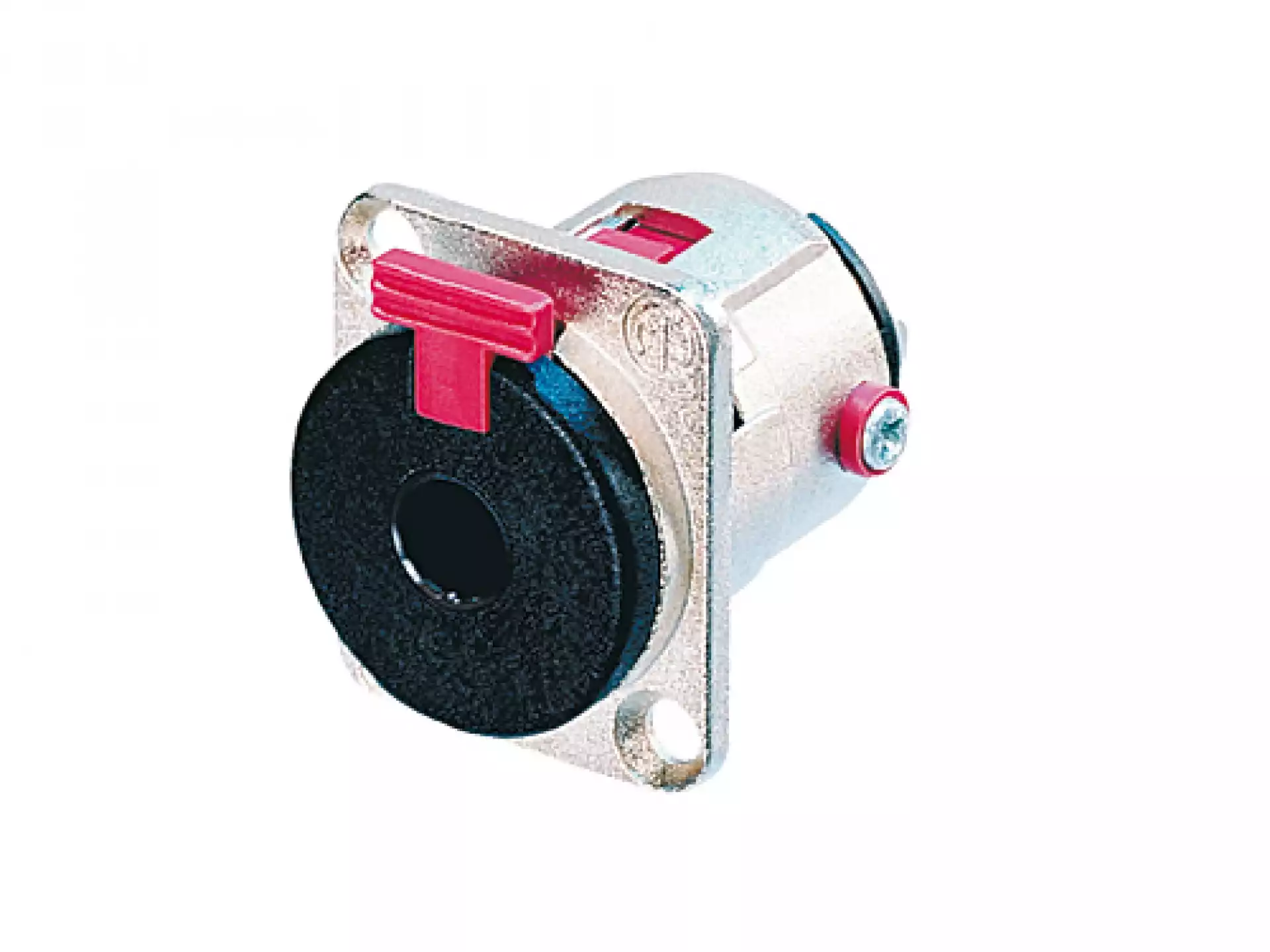

Locking 1/4" phone jack, D-size shell, nickel metal housing and silver contacts
The 3 pole phone jack panel mount version provides stable and secure connections where accidental disconnect or shock and vibration may occur. It latches with standard A-gauge mono or stereo plugs. Plug locks-in automatically when mating and unlocks only by pressing red release tab. Standard D size front panel appearance. Selectable grounding options.
Product
Title NJ3FP6C
Connection Type Jack
Gender female
Electrical
Contact resistance < 6 mΩ (initial)
Dielectric strength 1 kVdc
Insulation resistance ≥ 1 GΩ @ 500 V dc
Rated current per contact 10 A
Mechanical
Insertion force < 30 N
Withdrawal force < 20 N
Lifetime > 10000 mating cycles
Locking force > 80 N
Wiresize 1 mm²
Wiresize 18 AWG
Wiring Solder contacts
Locking device Latch lock
Mounting direction Front mounting
Chassis shape D
Material
Contact plating 2 µm Ag
Contacts Copper alloy (CuSn6) (Ground)
Insert Polyamide (PA 6.6 30 % GR) UL94 V-0
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Nickel
Strain relief Polyacetal (POM)
Environmental
Standard compliance EIA RS 453, IEC 60603-11
Solderability Complies with IEC 60068-2-20
Temperature range -25 °C to +70 °C
