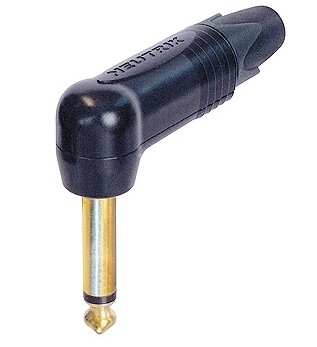

Neutrik NP2RX-B - Kutni mono 6.3mm crni konektor
Aktualna cijena vrijedi za gotovinsko, virmansko ili jednokratno kartično plaćanje. Za obročno kartično plaćanje primjenjuje se navedena cijena za obročno plaćanje.
JAMSTVO NAJNIŽE CIJENE
Pronašli ste isti proizvod po nižoj cijeni? Kontaktirajte nas.
Ako pronađete isti proizvod, u istoj konfiguraciji i pod usporedivim uvjetima kupnje, po nižoj javno dostupnoj cijeni kod drugog trgovca u Republici Hrvatskoj, javite nam se prije kupnje.
Nakon provjere ponude, nastojat ćemo vam ponuditi povoljniju cijenu.
info@player.hr
2 pole 1/4" professional right-angle phone plug, gold contacts, black shell
The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88mm jack pitch).
The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip.
The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.
| Product | |
| Title | NP2RX-B |
| Connection Type | Plug |
| Gender | male |
| Electrical | |
| Contact resistance | depends on mating connector mΩ |
| Dielectric strength | 1 kVdc |
| Insulation resistance | > 2 GΩ (initial) |
| Rated current per contact | depends on mating connector A |
| Rated voltage | < 50 V |
| Mechanical | |
| Cable O.D. | 4 - 7 mm |
| Lifetime | > 1000 mating cycles |
| Wiresize | 1 mm² |
| Wiresize | 18 AWG |
| Wiring | Solder contacts |
| Material | |
| Bushing | Polyacetal (POM) + PU |
| Contact plating | 0.2 µm Au |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Black chromium |
| Strain relief | Polyacetal (POM) |
| Environmental | |
| Standard compliance | IEC 60603-11 / EIA RS-453 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -20 °C to +65 °C |
