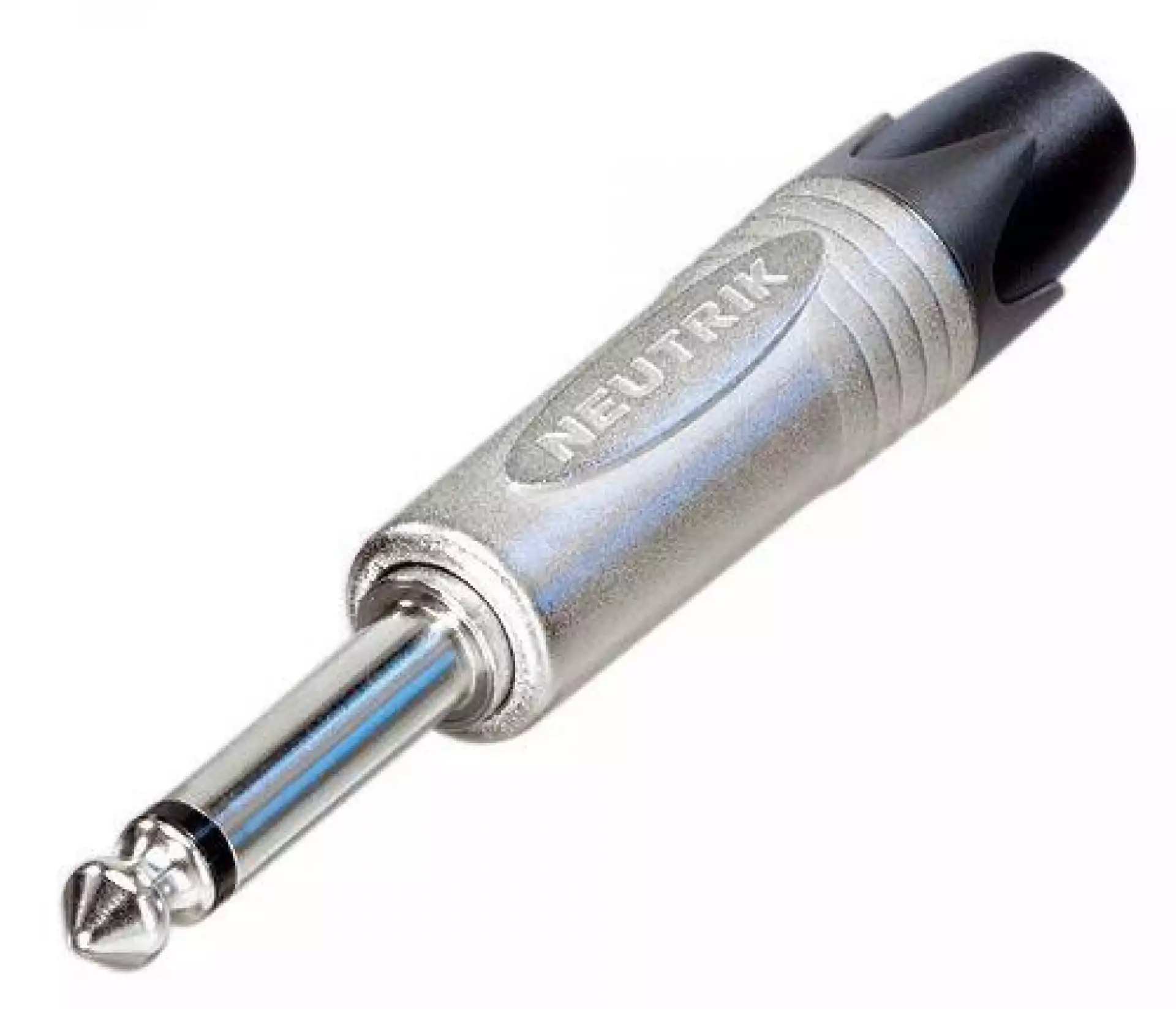

Neutrik NP2X - Mono 6.3mm Jack

Name: Neutrik NP2X - Mono 6.3mm Jack - Player doo
Brand: Neutrik
SKU: 01262
Availability: schema.org
Rating: 88 (20 reviews)

Šifra: 01262

Garantiramo najnižu cijenu na tržištu!
U slučaju da pronađete isti proizvod po povoljnijoj cijeni,
molimo Vas da nas kontaktirate na:
info@player.hr

Prijavi povoljniju cijenu Obavijesti me ako cijena padne Postavi pitanje

Opcija:

NEUTRIK NP2X

Product
Connector Type	Plug
Gender	male
Electrical
Contact resistance	depends on mating connector mΩ
Dielectric strength	1 kVdc
Insulation resistance	> 2 GΩ (initial)
Insulation resistance	≥ 1 GΩ (after damp heat test)
Rated current per contact	≤ 15 A
Mechanical
Cable O.D.	4 - 7 mm
Wire size	1 mm²
Wire size	18 AWG
Wiring	Solder contacts
Material
Bushing	Polyacetal (POM) + PU
Contact plating	2 µm Ni (Su)
Contacts	Brass (CuZn39Pb3)
Insert	Polyamide (PA 6.6 30 % GR)
Shell	Zinc diecast (ZnAl4Cu1)
Shell plating	Nickel
Strain relief	Polyacetal (POM)
Environmental
Standard compliance	IEC 60603-11 / EIA RS-453
Solderability	Complies with IEC 68-2-20
Temperature range	-20 °C to +65 °C
