Neutrik NP2XL
Šifra: 18150
0.00 EUR
*Cijena sa popustom može se ostvariti ukoliko se plaća gotovinom, virmanom (preko računa) ili debitnom i kreditnom karticom odmah i odjednom.
Prikazana cijena je za komad.
Garantiramo najnižu cijenu na tržištu!
U slučaju da pronađete isti proizvod po povoljnijoj cijeni,
molimo Vas da nas kontaktirate na:
info@player.hr

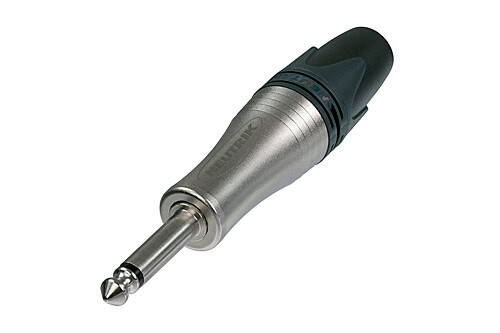

2 pole 1/4'' professional phone plug, up to 10 mm cable O.D.
The professional 1/4'' jumboPLUG for thick instrument and loudspeaker cables offers an ergonomic barrel and incorporates the proven features and benefits of the standard PX range.
| Product | |
| Title | NP2XL |
| Electrical | |
| Contact resistance | ? mΩ depends on mating connector |
| Dielectric strength | 1 kVdc |
| Insulation resistance | > 2 GΩ (initial), ≥ 1 GΩ (after damp heat test) |
| Rated current per contact | ? A depends on mating connector |
| Rated voltage | < 50 V |
| Mechanical | |
| Cable O.D. | ≤ 10 mm |
| Lifetime | > 1000 mating cycles |
| Wiresize | 1 mm² |
| Wiresize | 18 AWG |
| Environmental | |
| Standard compliance | IEC 60603-11 / EIA RS-453 |
| Temperature range | -20 °C to +65 °C |
