Neutrik NTP3RC-Stereo mini-jack kutni konektor
Šifra: 06686
0.00 EUR
*Cijena sa popustom može se ostvariti ukoliko se plaća gotovinom, virmanom (preko računa) ili debitnom i kreditnom karticom odmah i odjednom.
Prikazana cijena je za komad.
Garantiramo najnižu cijenu na tržištu!
U slučaju da pronađete isti proizvod po povoljnijoj cijeni,
molimo Vas da nas kontaktirate na:
info@player.hr

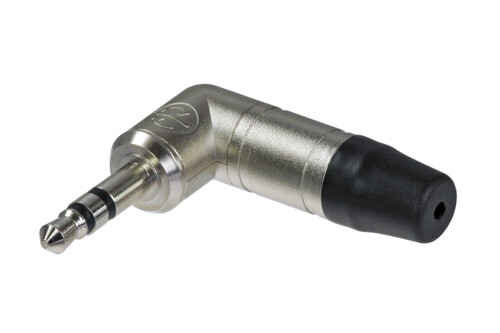

3 pole 3.5 mm audio plug, solder termination, chuck type strain relief, bushing, black housing, gold contacts
The only right-angled metal bodied 3.5 mm jack plug with chuck type strain relief for secure cable retention. It accepts cables from 2.0 to 4.5 mm.
| Product | |
| Connector Type | Plug |
| Gender | male |
| Electrical | |
| Contact resistance | depends on mating connector mΩ |
| Dielectric strength | 1 kVdc |
| Insulation resistance | > 2 GΩ (initial) |
| Insulation resistance | ≥ 1 GΩ (after damp heat test) |
| Rated current per contact | ≤ 15 A |
| Mechanical | |
| Cable O.D. | 2 - 4.5 mm |
| Wire size | 0,22 mm² |
| Wire size | 24 AWG |
| Wiring | Solder contacts |
| Material | |
| Bushing | Brass (CuZn39Pb3) + PU, black Cr |
| Contact plating | 0.2 µm Au |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 6.6 15 % GR) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Black chromium |
| Strain relief | Polyacetal (POM) |
| Environmental | |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -20 °C to +65 °C |
