CORDIAL CCM 10 FP- nebalansirani audio kabel XLR-TS(jack)
Aktualna cijena vrijedi za gotovinsko, virmansko ili jednokratno kartično plaćanje. Za obročno kartično plaćanje primjenjuje se navedena cijena za obročno plaćanje.
JAMSTVO NAJNIŽE CIJENE
Pronašli ste isti proizvod po nižoj cijeni? Kontaktirajte nas.
Ako pronađete isti proizvod, u istoj konfiguraciji i pod usporedivim uvjetima kupnje, po nižoj javno dostupnoj cijeni kod drugog trgovca u Republici Hrvatskoj, javite nam se prije kupnje.
Nakon provjere ponude, nastojat ćemo vam ponuditi povoljniju cijenu.
info@player.hr

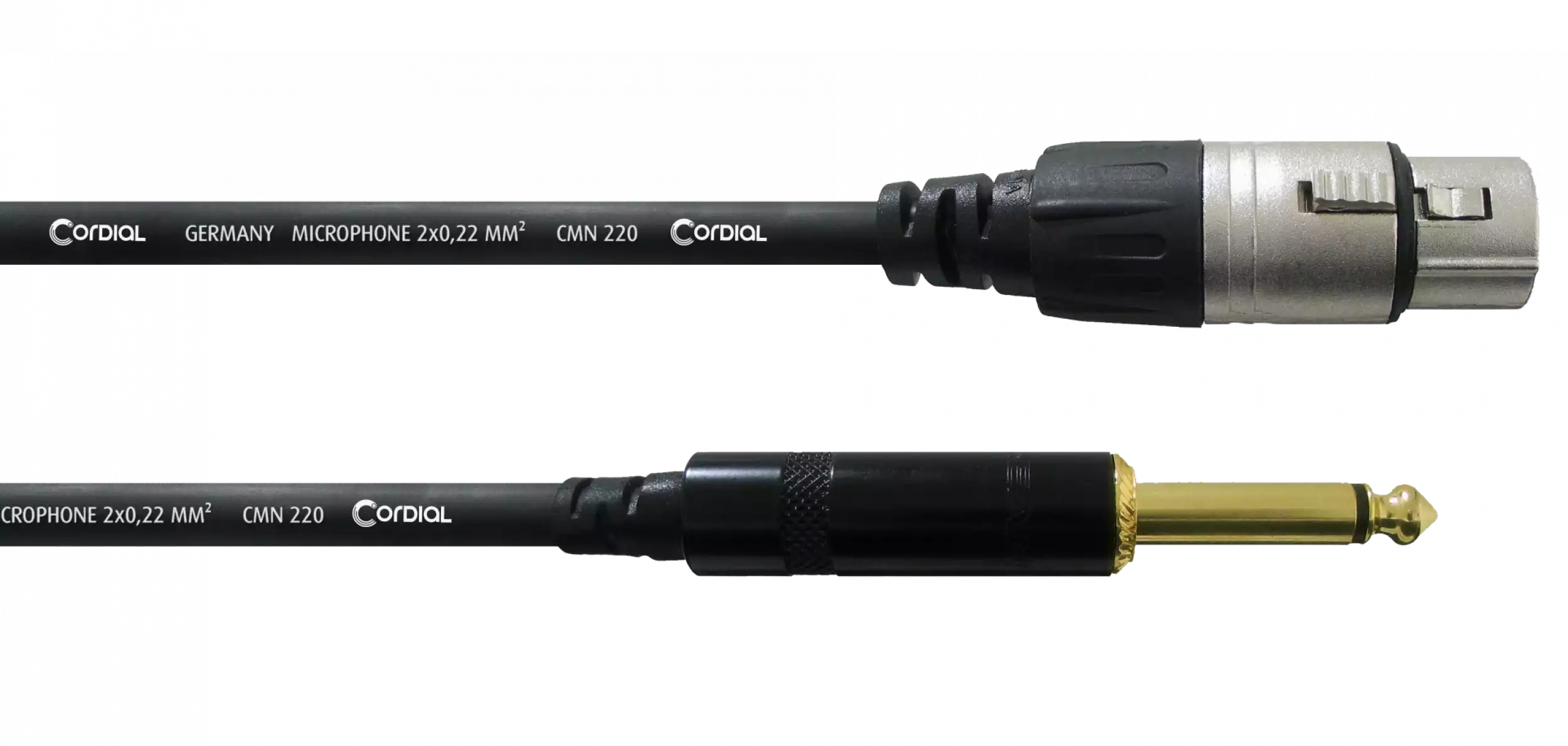

XLR to 6.3 mm mono plug
The CCM FP is used for unbalanced transmission of audio signals, for example from a microphone to audio workstations or mixers, when there's only a mono jack input available. Pin 1 and 3 of the XLR plug are soldered together. With a conductor area of 2x 0.22 mm² (both conductors are soldered together) and a spiral shielding of bare CU wires (90% coverage), it ensures undistorted signals in daily use. The moulded-on bend protection sleeve (plug openable) protects the sensitive areas from cable breakage and ensures solid mating cycles.
The hand-soldered REAN® by NEUTRIK® connectors offer the usual NEUTRIK quality at lower prices. The conductor composition of 28 individual strands (0.10 mm diameter each) makes it particularly flexible and easy to wind.
cable essentials cable 1
Jacket PVC
cable assign FP
connector brand REAN ®
plugs
1 XLR female 3-pole
1 1/4" Plug mono
Technical facts
Conductor area 0.22 mm²
AWG AWG 24
Composition of conductor 28 x 0.10 mm
Material bare copper
Conductor resistance < 80 Ohm/km
Shielding spiral shield (90% coverage)
Capacity cond.-cond. (pF/m) < 80 pF/m
category Microphone
diameter 5.9 ± 0.2 mm
Conductor isolation LDPE
