MAIN FEATURES
37-note velocity-sensitive slim keyboard with aftertouch

11 sound engines:
• Virtual Analog
• Samples
• Wavetable
• FM
• Granular
• Physical modelling
• Vector Synthesis
• Harmonic
• Phase distortion
• Vocoder
• Karplus Synthesis

Over 1800 in-built sounds
• Expandable to more than 10.000 sounds via Arturia software

400px color screen and navigation encoder

10 Preset Buttons for quick sound access

4 macro controls for quick editing
• Brightness
• Timbre
• Time
• Movement

12 insert FX

4 dedicated knobs to control FX including dedicated Delay/Reverb

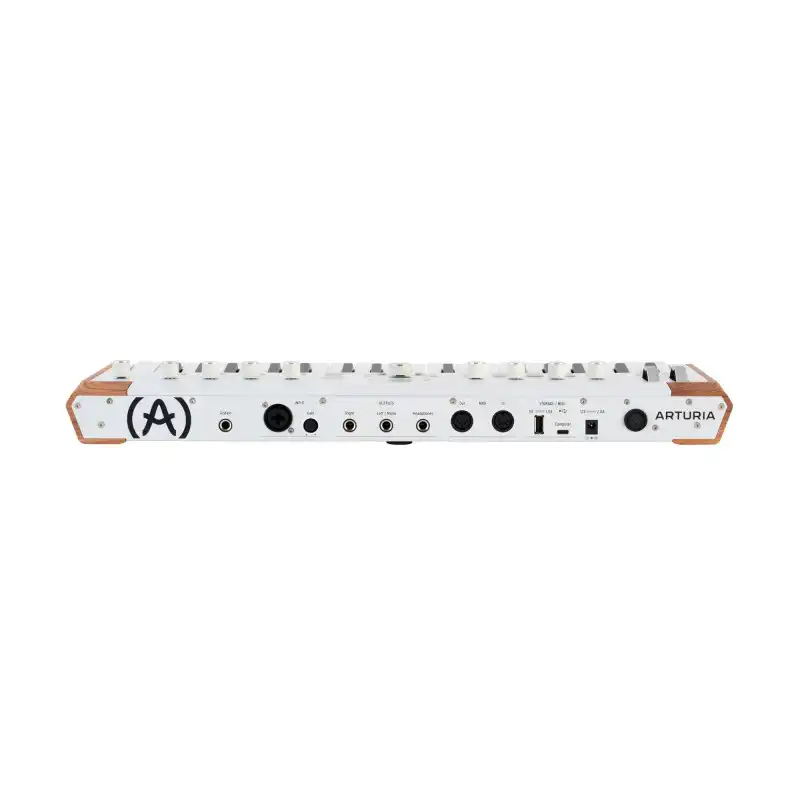

MIDI I/O, balanced stereo output, balanced mic/line mono input

USB-C connection and USB-A host

Bluetooth audio input and WiFi for wireless control

Arpeggiator, Chord & Scale modes

*On-device multi-instrument editing and creation is not available on AstroLab 37

PLATFORM SPECIFICATIONS

Windows
• Win 10+ (64bit)
• 4 GB RAM
• 4GB free hard disk space
• OpenGL 2.0 compatible GPU
• ARM processors not supported on Windows

Required configuration
• Works in Standalone, VST, AAX, Audio Unit, NKS.
* NKS compatibility unavailable for Analog Lab

Apple
• Mac OS 11+
• 4 GB RAM
• 4 cores CPU, 3.4 GHz (4.0 GHz Turbo-boost) or Apple Silicon CPU
• 4GB free hard disk space
• OpenGL 2.0 compatible GPU

Work with ASC
• An elegant and simple solution to help you install, activate, and update your Arturia software instruments.

WHAT'S IN THE BOX
Box content
• Registration card
• USB Cable (C/A)
• Power supply

Size & weight
• Size (mm): 59 x 515 x 214 mm
• Size (in): 2.32 x 20.28 x 8.43 in
• Weight (kg): 1.95 kg
• Weight (lb): 4.30 lb

POLYPHONY
AstroLab optimizes Polyphony for each instrument to ensure the best reliability and performance:
• Pianos, EPs and organs have 48 voices
• Most synths have 8 voices

Buchla Easel V, Synthi V, KORG MS-20 V are monophonic.

Pigments and Augmented instruments’s polyphony may vary depending on engine and effect usage.

PRESET COMPATIBILITY

V Collection 11 instruments and Pigments are supported except for Mellotron V* and CP-70 V. See FAQ for more information of supported instruments and versions.

*Mellotron presets are available as presets of AstroLab's Sampler instrument.
