MARTIN WISMAN MZA 610
Garantiramo najnižu cijenu na tržištu!
U slučaju da pronađete isti proizvod po povoljnijoj cijeni,
molimo Vas da nas kontaktirate na:
info@player.hr

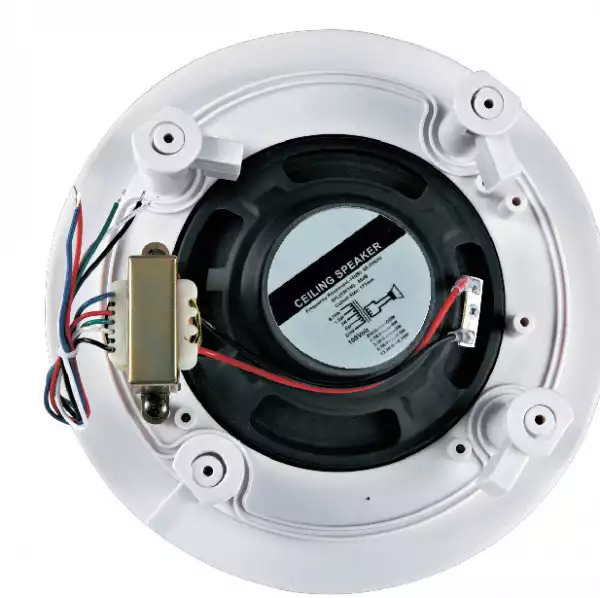

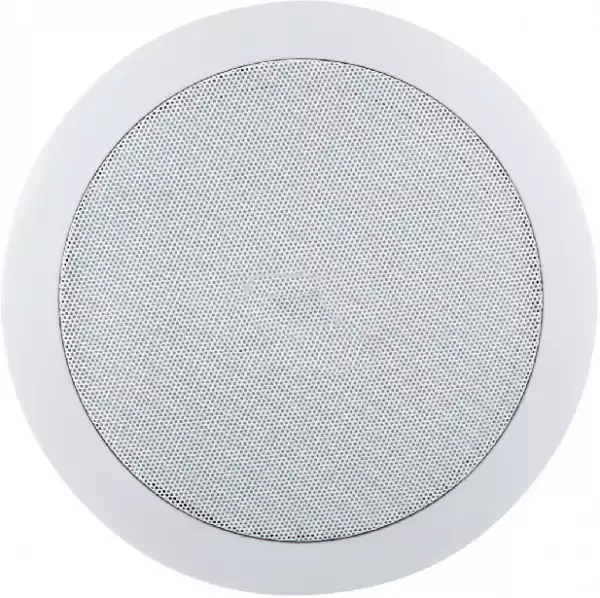

● 6'' standard ceiling speaker
● Economy range ceiling speaker
● Dual cone speaker system of paper woofer
● 4 power taps at 100V output
Specification
Model
MZA 610
MZA 815
Power Taps @100V
1.25W, 2.5W, 5W, 10W
1.87W, 3.75W, 7.5W, 15W
Power Taps @70V
0.62W, 1.25W, 2.5W, 5W
0.93W, 1.87W, 3.75W, 7.5W
Impedance
Black: Com/1KΩ
/2KΩ/4KΩ/ 8KΩ
Black: Com /670Ω
/1.3KΩ/2.6KΩ/5.3KΩ
SPL(1W/1M)
89dB
90dB
Max. SPL (Rated W/1M)
99dB
102dB
Frequency Response (-10dB)
80-20KHz
80-20KHz
Finish
Baffle: ABS, White
Grille: Steel, White
Baffle: ABS, White
Grille: Steel, White
Speaker Driver
6" ×1
8" ×1
Cutout Size
205mm
245mm
Dimensions
232 ×107mm
275 ×110mm
Weight
0.9Kg
1.4Kg
Mounting
Flush-mount dog ears
Flush-mount dog ears
6"+1.5" Coaxial ceiling speaker, 1.25W-2.5W-5W-10W
● 6'' standard ceiling speaker
● Economy range ceiling speaker
● Dual cone speaker system of paper woofer
● 4 power taps at 100V output
Specification
|
Model |
MZA 610 |
MZA 815 |
|
Power Taps @100V |
1.25W, 2.5W, 5W, 10W |
1.87W, 3.75W, 7.5W, 15W |
|
Power Taps @70V |
0.62W, 1.25W, 2.5W, 5W |
0.93W, 1.87W, 3.75W, 7.5W |
|
Impedance |
Black: Com/1KΩ /2KΩ/4KΩ/ 8KΩ |
Black: Com /670Ω /1.3KΩ/2.6KΩ/5.3KΩ |
|
SPL(1W/1M) |
89dB |
90dB |
|
Max. SPL (Rated W/1M) |
99dB |
102dB |
|
Frequency Response (-10dB) |
80-20KHz |
80-20KHz |
|
Finish |
Baffle: ABS, White Grille: Steel, White |
Baffle: ABS, White Grille: Steel, White |
|
Speaker Driver |
6" ×1 |
8" ×1 |
|
Cutout Size |
205mm |
245mm |
|
Dimensions |
232 ×107mm |
275 ×110mm |
|
Weight |
0.9Kg |
1.4Kg |
|
Mounting |
Flush-mount dog ears |
Flush-mount dog ears |
