TPA 350 - Public Address Power Amplifier

Power supply: 230 V AC, 50 Hz ~
Output power: 350 W RMS
Output type: 70 V, 100 V or 4-16 W
Output current: 70 V 5 A / 100 V 3.5 A
Line input: 300 mV, 10 kOhms
Output-connectors: Screw conn, terminal block
Frequency range: 80 Hz - 16 kHz
Distortion: 0.5 % (1 kHz)
S/N-ratio: Aux: 90 dB
Dimensions: 483 x 385 x 92 mm
Weight: 16 kg
1 Line In / 1 Line Out
70 V, 100 V PA outputs
4-16 ohm output for connecting a passive speaker system
Master control

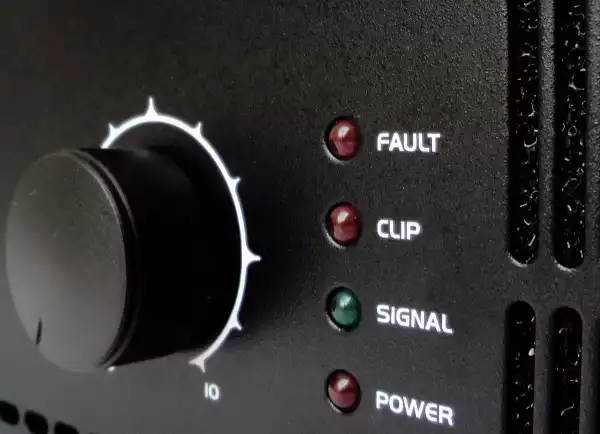

Signal, clip, fault indicator
19” dimensions
Protection-circuits: over load, short circuit, turn-on delay, over heating, DC offset protection
Load detection and power control






MODEL


TPA 350



















Rated Output Power


350W













Output1


4 to  16 Ohms




Output2


70V




Output3


100V




Output current


3.6A @70V











2 5A @100V











Frequency Response


+/-2dB(60Hz to 16kHz)




THD


0.1%




Signal/Noise


>96dB




Input Signal


0dB    10kOhms




Power Supply


230V~50Hz




Power Supply Fuse


10A









Pecondary coil Fuse


10A









Net weight


12,2KG









Weight


14.2KG
