TPM 30 - 30W Mixer Amplifier (XLR Balance Mic input + Phantom Power)
The basic public address mixer amplifiers have power ratings 30W.They are featured of 3 balanced miaophone inputs, 2 aux inputs and 2 EMC inputs.Priority muting is achived via EMC I-2 for overriding other inputs except Mic I onfront panel.Individual gain controls are provided for Mlc 1-3 and Aux 1-2, bass and treblecontrols and master volume control are provided for overall tone control.70V, 100V and low impedance 4-16ohms speaker outputs are provided. Extensiveprotection from short-circuit, overload and high temp.

Features• Mixer amplifier for paging and background music system• Rated power 30W• 2U rack mount (less than 3350W) and 3U rack mount design• 70V, 100V and low impedance 4-16ohm speaker output• Three balanced Mic inputs• Mic I (phone jack) with VOX priority and VOX level on front panel• Mic 2-3 by XLR type on rear panel with phantom power• Two Aux Inputs and 2 line inputs for spare use• Two EMC priority Inputs• EMC 1 has priority over all inputs exept MIC 1• Mic 1-3, Aux 1-2 and master volume controls and bass / treble tone control• Short circuit, overload and high temp protection
Optional• DC 24V available on less than 500W model• Pinel with / without handhold• Faults monitoring module, it can output short circuit  sitnal to achieve main/spare amplifier switch

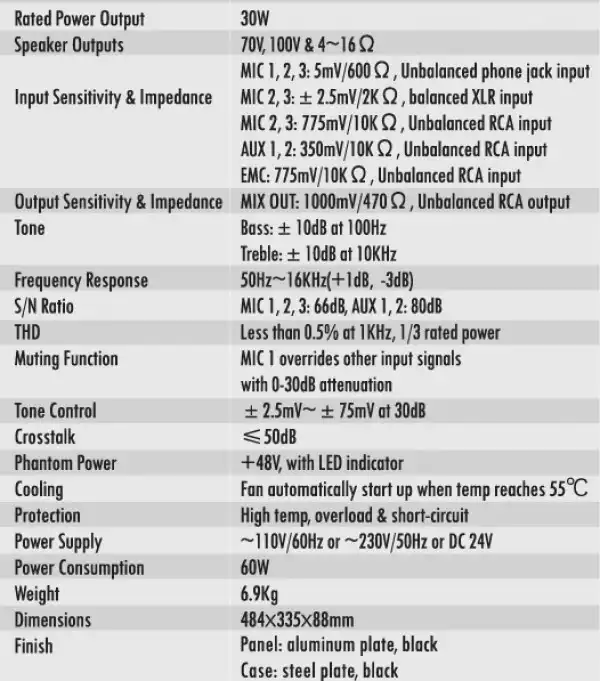

Specification

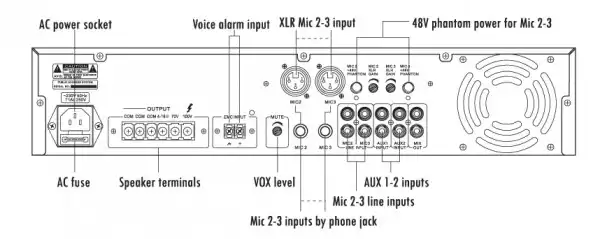

2U Rear Panel

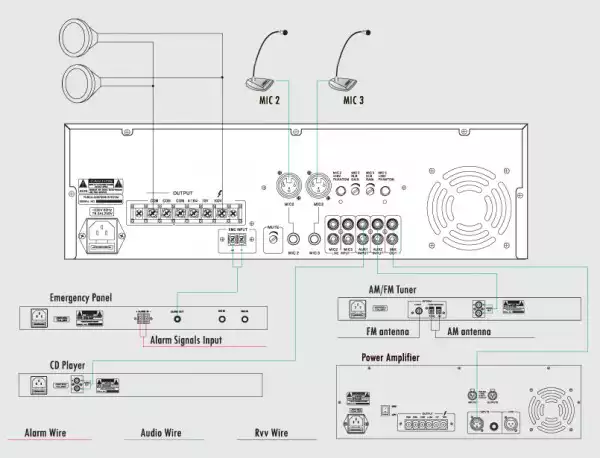

Connections
