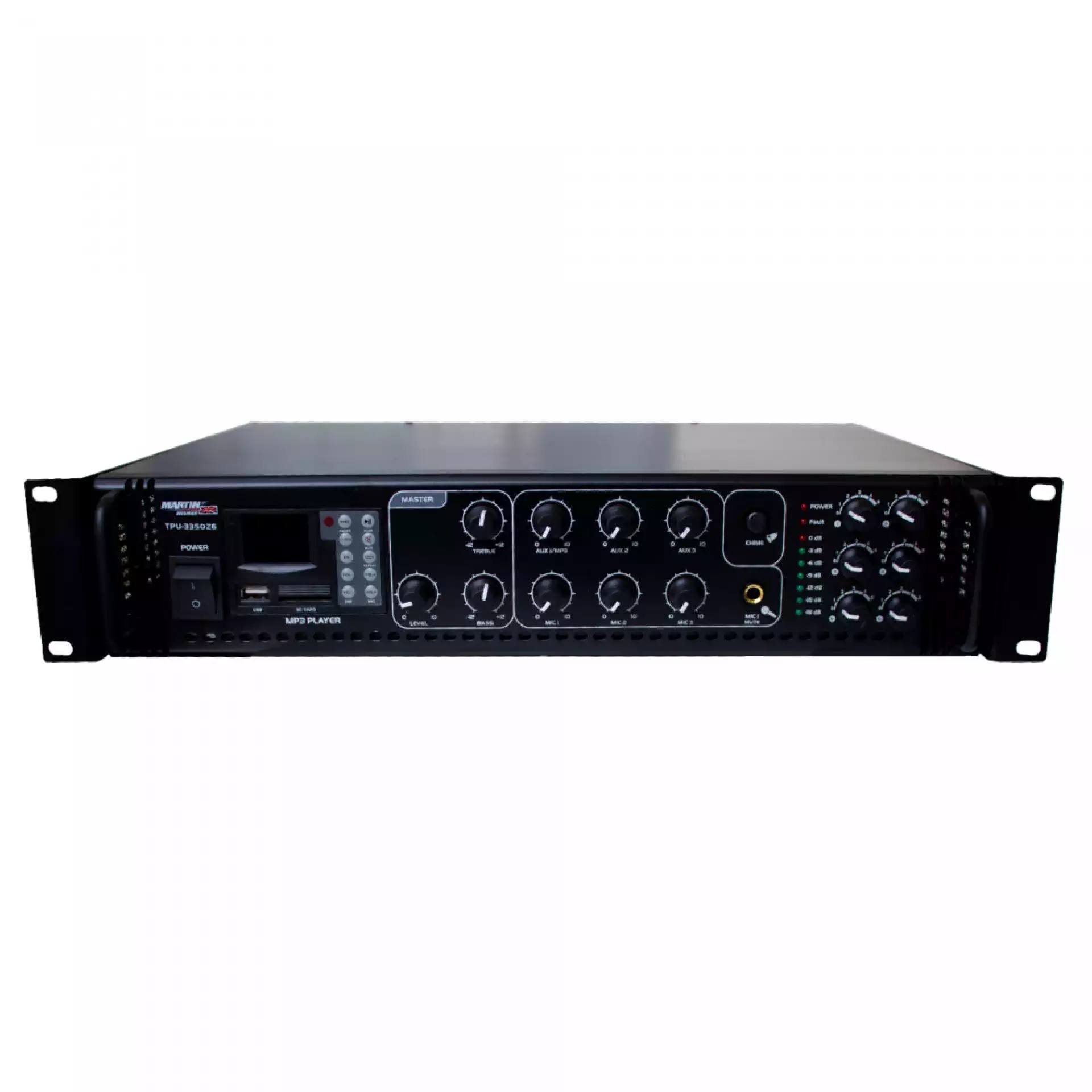

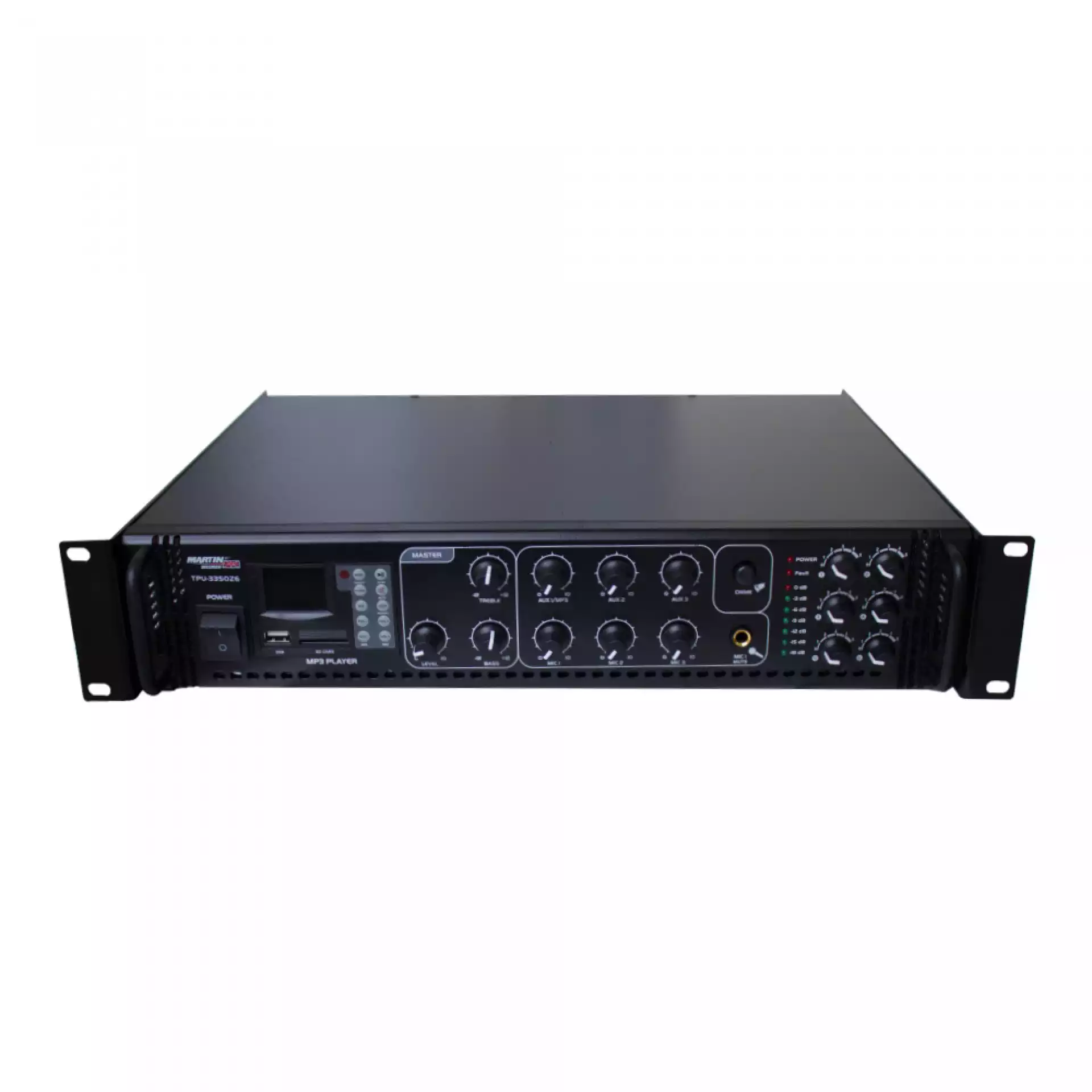

MARTIN WISMAN TPU-3350 Z6 - 100V pojačalo sa zonama
Garantiramo najnižu cijenu na tržištu!
U slučaju da pronađete isti proizvod po povoljnijoj cijeni,
molimo Vas da nas kontaktirate na:
info@player.hr
PA Amplifier, 350W, with 6 separate zoning
Features
- Fan-cooled
- 3 Mic and 3 Aux inputs
- 1 Line-output
- 70 V, 100 V PA-outputs
- 4-16 Ohms output for connecting a passive speaker-system for monitor
- 1 Mic-connection on the front panel, Chime button
- Build in Mp3 player with songs name display
- Treble and bass control
- 7-fold level indicator
- Master-control
- 19"-dimensions
- Protection-circuits: over current,
- short circuit, turn-on delay
- Screw terminals of 6 zone outputs
Specifications
|
MODEL |
TPU-3060 |
TPU-3120 |
TPU-3180 Z6 |
TPU-3250 |
TPU-3250 Z6 |
|
|
Power supply |
AC110V~ 60 Hz |
AC110V~ 60 Hz |
AC110V~ 60 Hz |
AC110V~ 60 Hz |
AC110V~ 60 Hz |
|
|
Output power |
60W RMS |
120W RMS |
180 W RMS |
250 W RMS |
350 W RMS |
|
|
Output type |
70 V, 100 V or 4-16 |
70 V, 100 V or 4-16 |
70 V, 100 V or 4-16 |
70 V, 100 V or 4-16 |
70 V, 100 V or 4-16 |
|
|
Outputcurrent at 70V |
0.9A |
1.4A |
2.5 A |
3.6 A |
5.0A |
|
|
Output current at 100 V |
0.6A |
1.0A |
1.8 A |
2.5 A |
3.5A |
|
|
Mic input |
5 mV, 600 Ohms |
5 mV, 600 Ohms |
5 mV, 600 Ohms |
5 mV, 600 Ohms |
5 mV, 600 Ohms |
|
|
Line input |
300 mV, 10 kOhms |
300 mV, 10 kOhms |
300 mV, 10 kOhms |
300 mV, 10 kOhms |
300 mV, 10 kOhms |
|
|
Frequency range |
80 Hz - 16 kHz |
80 Hz - 16 kHz |
80 Hz - 16 kHz |
80 Hz - 16 kHz |
80 Hz - 16 kHz |
|
|
Distortion |
0.5 % (1 kHz) |
0.5 % (1 kHz) |
0.5 % (1 kHz) |
0.5 % (1 kHz) 0.5 |
0.5 % (1 kHz) 0.5 |
|
|
Signal/Noise ratio: |
Aux |
85 dB |
85 dB |
85 dB |
85 dB |
85 dB |
|
Mic |
75 dB |
75 dB |
75 dB |
75 dB |
75 dB |
|
|
FUSE |
T2A/250V |
T2A/250V |
T2A/250V |
T5A/250V |
T5A/250V |
|
|
Carton dimensions |
535X375X175mm |
550X425X180mm |
550X425X180mm |
550X455X180mm |
550X455X180mm |
|
|
Weight |
9.25kg |
11kg |
12 kg |
14 kg |
16 kg |
|
