Jolly 8B A / Processed Active Monitor 150W+50W



Player video storage





Features

2-way bi-amped bass-reflex speaker system with 200 mm woofer and 25 mm high frequency unit
Extremely light and sturdy enclosure made of gas injection moulded polypropylene
Integral handle, stand adapter, 2 M6 anchoring points and a comprehensive range of accessories for fixed installations
Custom 90° x 60° dispersion horn
Asymmetrical trapezoidal shape for use as a stage monitor
An ideal choice for live performance applications thanks to the reduced dimensions in relation to the hefty 119dB SPL, along with frequency response that excels in terms of linearity and extension.
Enormous application versatility: band P.A.s, piano-bars, home and live monitors, and fixed installations in live music club venues, pubs, gyms, and all other venues requiring high sound pressure combined with compact dimensions
Custom 200 mm high efficiency high excursion woofer
Custom 25 mm compression tweeter
Built-in amplifiers: 150W rms class G for the woofer and 50W rms for the high frequency unit
ADAP® (Advanced Dynamic Active Protection) designed to limit amplifier saturation and ensure complete reliability of the system even in extreme conditions
24dB/oct active filters

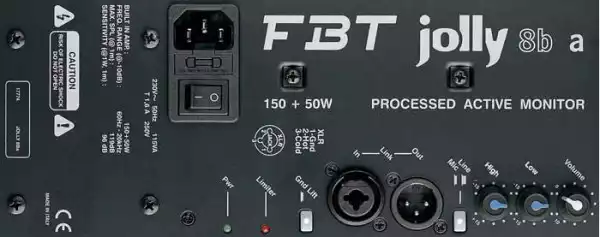

Control panel with: Ground-lift switch, Combo XLR/jack inputs, XLR male output, mic/line switch, 2 Band EQ – (high/low), limiter, volume control

Download PDF drawingDownload datasheetDownload user manual

Specifications




Configuration


way


2




Built-in amplifier


W rms


150+50




Frequency response


@-6dB


60Hz-20kHz




Low frequency woofer


inch


1x8" - 1,5" Ø coil




High frequency driver


inch


1x1" + horn  - 1" Ø coil




Sensitivity     (@1W/1m)


dB


96




Maximum SPL


dB


119




Dispersion


H x V


90° x 60°




Input impedance


kOhm


22




Crossover frequency


kHz


active 2,2




Input connectors





combo / XLR M




Power cord


m


5




Net dimensions (WxHxD)


mm


255x415x245




Net weight


kg


8,1




Shipping dimensions   (WxHxD)


mm


330x480x320




Shipping weight


kg


9,1
