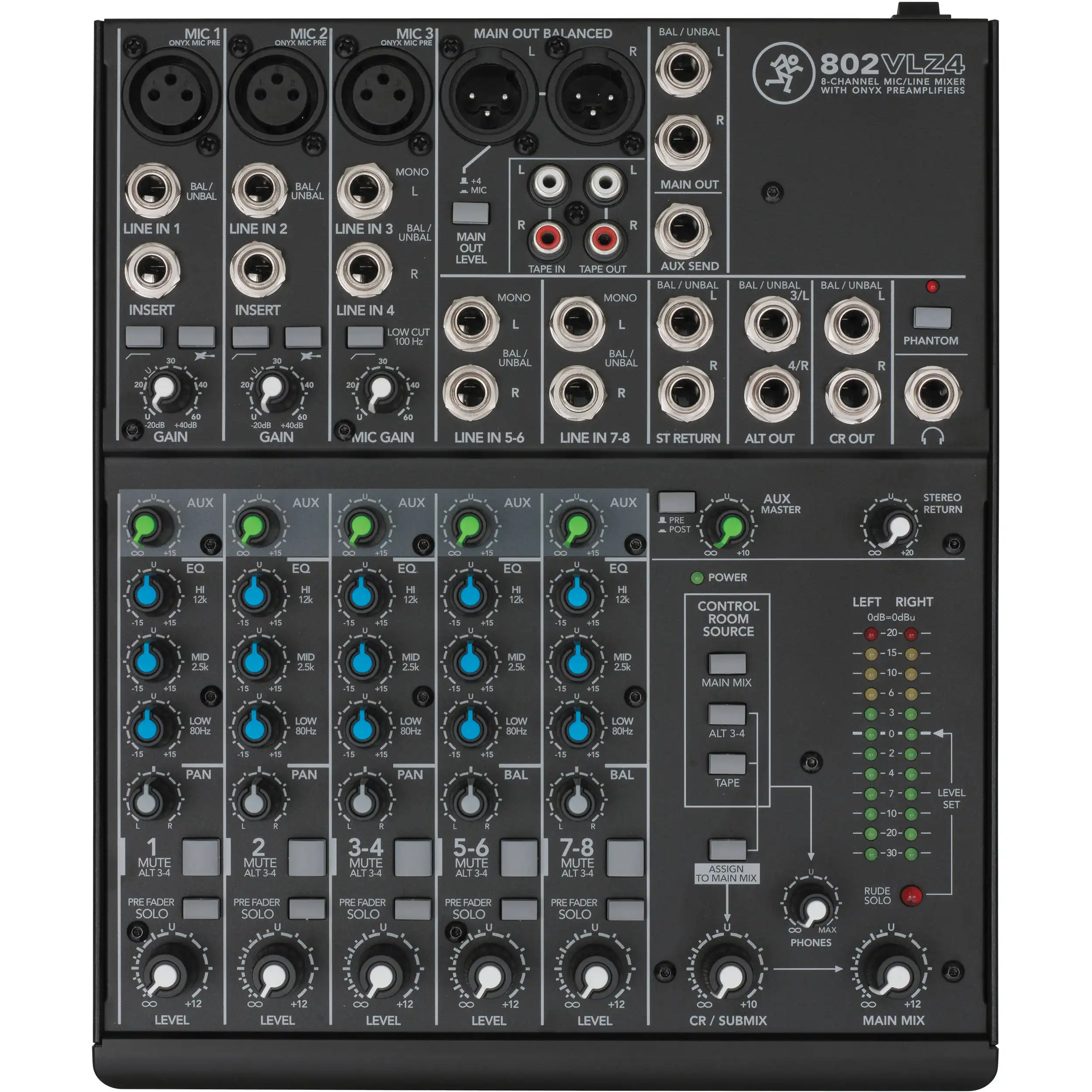

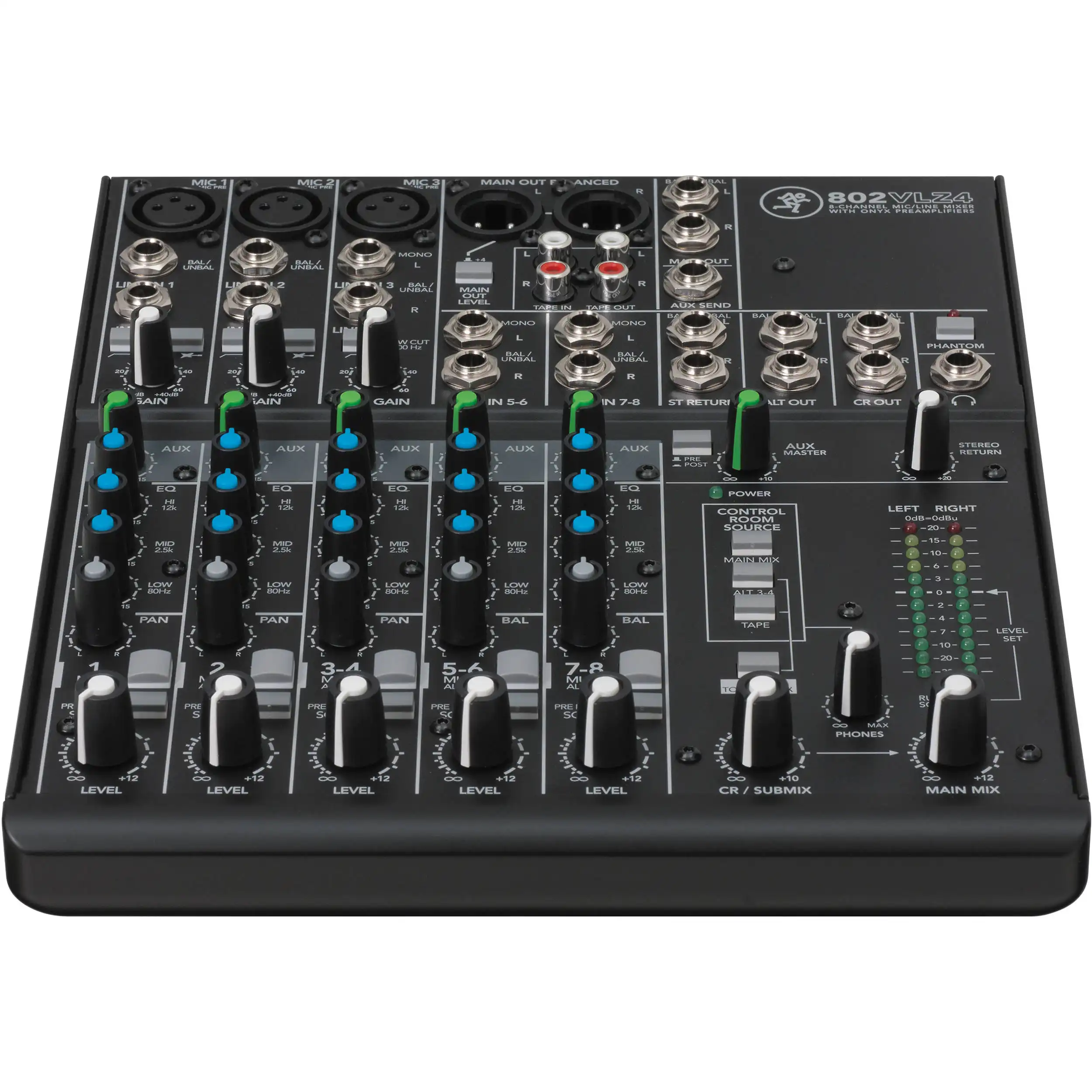

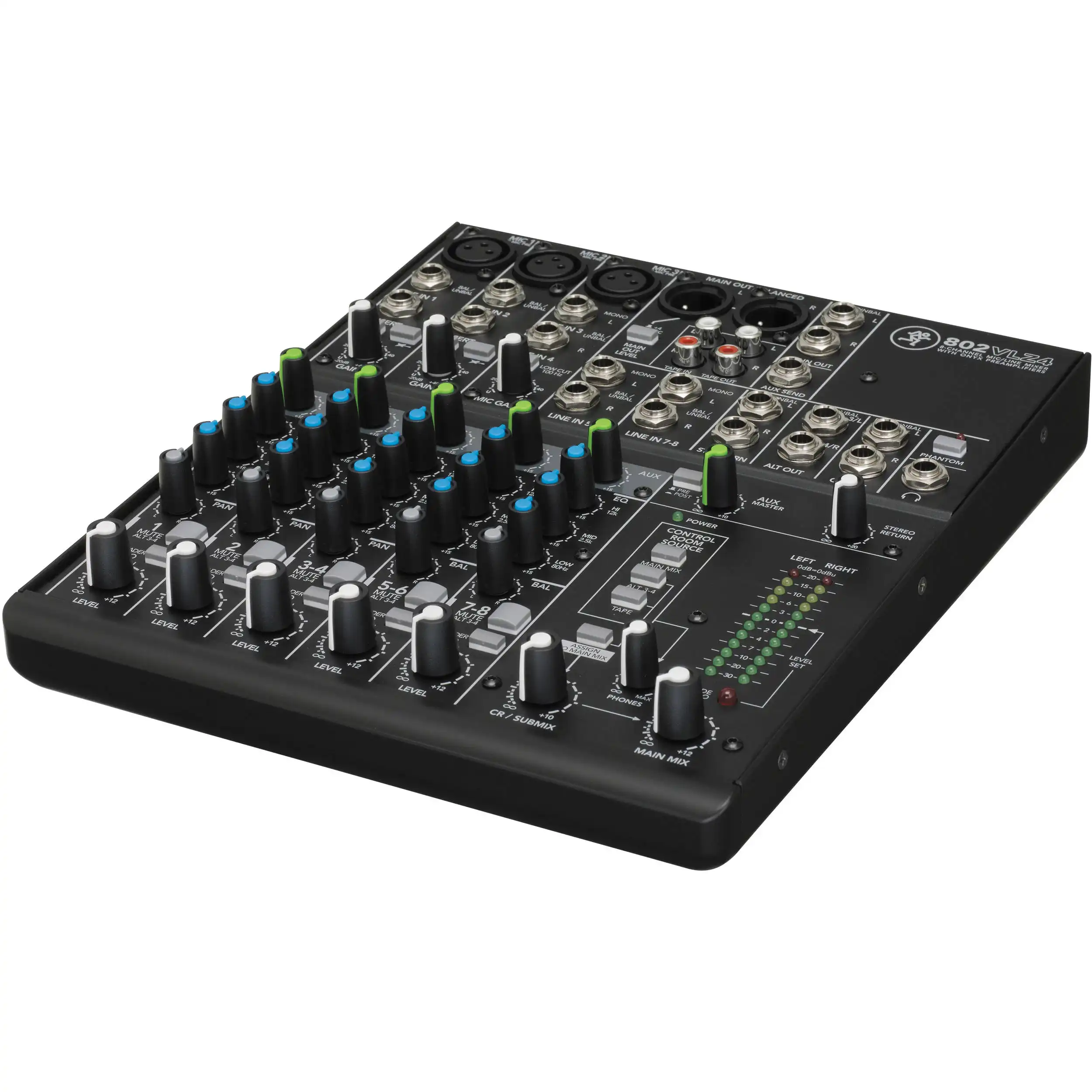

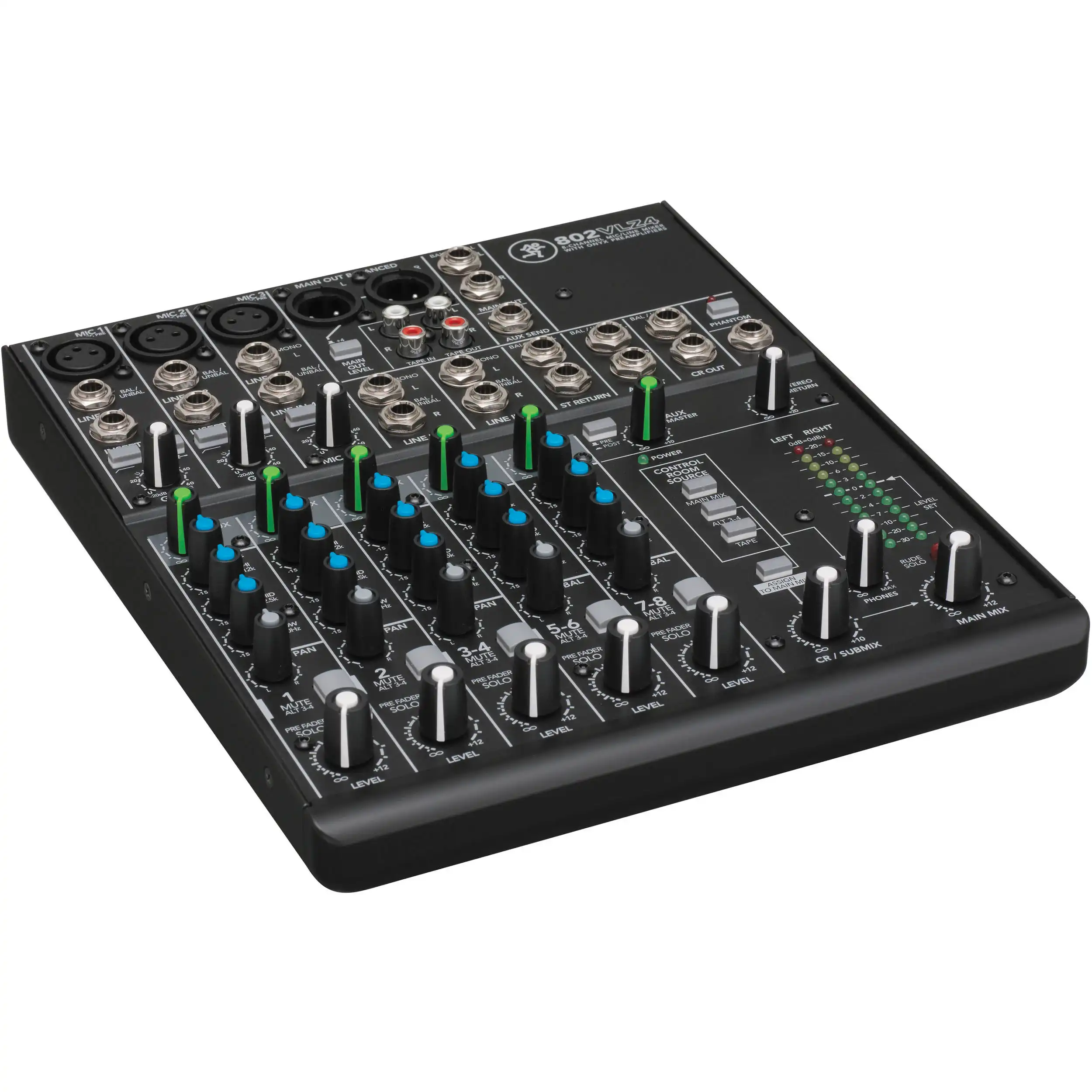

The mixer is built-like-a-tank with a rugged solid-steel chassis and high-contrast controls for tactile control. With features like instrument level inputs, phantom power, and level metering, the 802VLZ4 offers a true step-up performance and durability that is suitable for your professional applications.

8-Channel mixer featuring high-headroom, low-noise design
3 Boutique-Quality Onyx Microphone Preamps:
Wide 60 dB gain range
128.5 dB dynamic range
+22 dBu line input handling
Extended frequency response
Distortion under 0.0007% (20 Hz to 50 kHz)
Improved RF rejection, suitable for broadcast applications
Phantom power for condenser microphones
Eight high-headroom line inputs
Selectable instrument inputs on first 2 channels; no DI box needed
3-Band EQ (80 Hz, 2.5 and 12 kHz)
18 dB/octave 100 Hz low-cut filter on microphone input channels
AUX send, level, pan, and PFL solo on each channel
Stereo return for connecting FX processor or other stereo source
ALT 3/4 stereo bus for added routing flexibility
Control room / phones source matrix
High-resolution 12-segment stereo meters
Sealed rotary controls resist dust and grime
Built-like-a-tank rugged steel chassis with powder-coat finish
High-visibility, high-contrast controls deliver convenient at-a-glance visual feedback
Universal power supply for worldwide use
Applications: Live sound mixing, houses of worship, clubs, gymnasiums, banquet halls, conference rooms, boardrooms, studio and field recording, multimedia applications, broadcast, and many more

Mackie 802-VLZ4 Specs
Mixer
Number of Analog Input Channels 8
Number of Mic Preamps 3
Analog Output Channels 2 x Stereo Master Output
1 x Stereo Control Room/Monitor Output
1 x Stereo ALT Control Room/Monitor Output
1 x Mono Aux Send Output
1 x Stereo Tape/Record Output
1 x Stereo Headphone Output
Signal Processing
EQ Parameters High: ±15 dB at 12 kHz (Shelving)
Mid: ±15 dB at 2.5 kHz (Notch/Peak)
Low: ±15 dB at 80 Hz (Shelving)
Built-In Effects None
Performance
Frequency Response Mic Input to Main Output:
20 Hz to 50 kHz +0/-1 dB (Unity Gain)
10 Hz to 100 kHz +0/-3 dB (Unity Gain)
Max Input Level Mic Input:
+21 dBu
Tape Input:
+22 dBu
Line Input:
+22 dBu
Output Level Main Output:
+28 dBu at Max Gain
All Other Output:
+22 dBu at Max Gain
I/O Impedance Mic Input:
2.55 Kilohms
Insert Return:
5 Kilohms
Line Input:
≥ 17 Kilohms
Tape Output:
1 Kilohm
Headphone Output:
60 Ohms
Main Output:
120 Ohms
Crosstalk Master Fader Off:
-75 dBu at 1 kHz (20 Hz to 20 kHz)
Muted:
-100 dBu at 1 kHz (20 Hz to 20 kHz)
Channel Fader Off:
-100 dBu at 1 kHz (20 Hz to 20 kHz)
CMRR > -70 dB (1 kHz)
EIN -128.5 dBu at Max Gain (150-Ohm Input)
Noise Floor XLR Main Output:
-95 dBu (Master Level at -∞, Channel Levels at -∞)
-90 dBu (Master Level at Unity, Channel Levels at -∞)
-84 dBu (Master Level at Unity, Channel Levels at Unity)
1/4" Main Output:
-101 dBu (Master Level at -∞, Channel Levels at -∞)
-96 dBu (Master Level at Unity, Channel Levels at -∞)
-90 dBu (Master Level at Unity, Channel Levels at Unity)
THD Mic Input to Insert Send:
< 0.001% at +35 dB Gain (1 kHz)
Power
AC Input Power 100 to 120 VAC, 50 / 60 Hz
Power Consumption 13 W
Physical
Rack Mountable No
Operating Temperature 32 to 104°F / 0 to 40°C
Dimensions 10.7 x 8.9 x 1.8" / 273 x 227 x 47 mm
Weight 5.5 lb / 2.5 kg
