MARTIN WISMAN PMF 800 MK2

Šifra: 9506
425,00 EUR
PDV uračunat u cijenu
Prikazana cijena je za komad.

Garantiramo najnižu cijenu na tržištu!
U slučaju da pronađete isti proizvod po povoljnijoj cijeni,
molimo Vas da nas kontaktirate na:
info@player.hr

Prijavi povoljniju cijenu Obavijesti me ako cijena padne Postavi pitanje
Opcija:

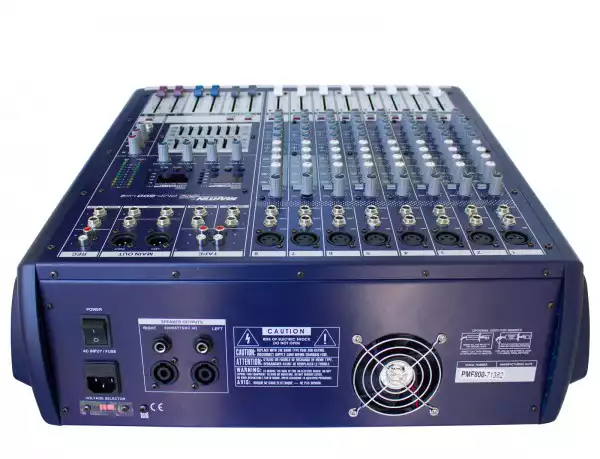

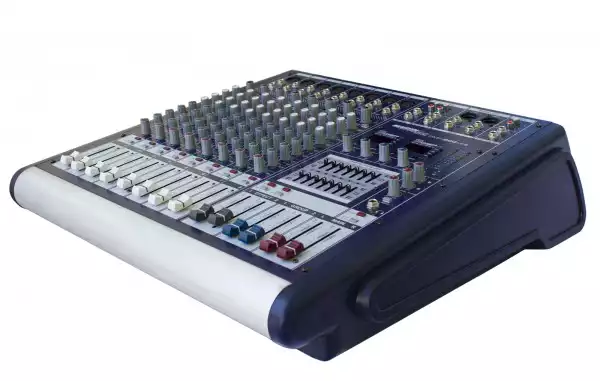

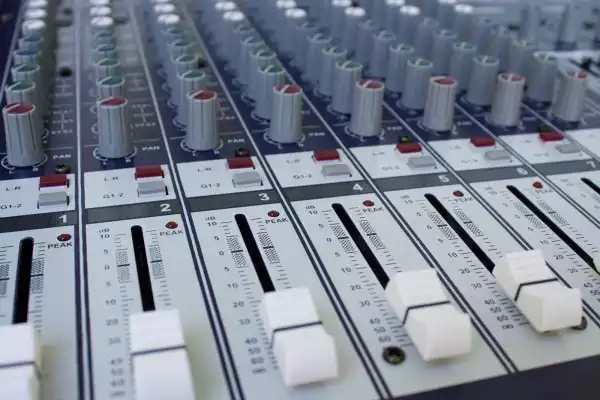

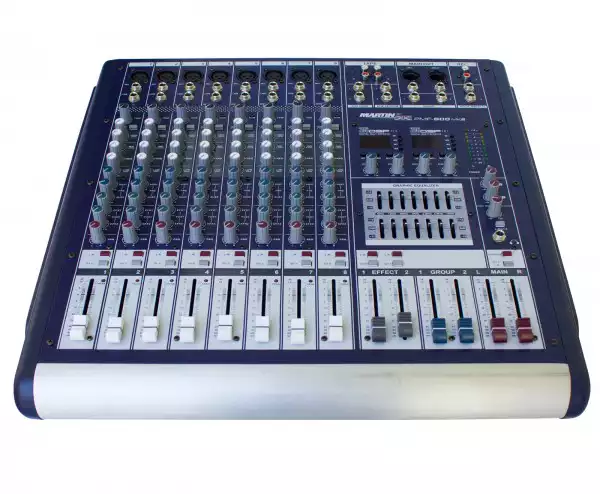

Martin Wisman PMF 800 MK2
Professional Power Mixer 8 Channels, 500W + 500W

Channel MIC Line: 8 MONO
Channel EQ: 3 BAND
Main Buses: 1 Stereo
Group Buses: 1 Stereo
Graphic EQ: 2x7 BAND
Phantom Power: +48V
Effect: 16DSP x 2
Power Out: 500W + 500W





Martin Wisman PMF 800 MK2
Professional Power Mixer 8 Channels, 500W + 500W



  • Channel MIC Line: 8 MONO
  • Channel EQ: 3 BAND
  • Main Buses: 1 Stereo
  • Group Buses: 1 Stereo
  • Graphic EQ: 2x7 BAND
  • Phantom Power: +48V
  • Effect: 16DSP x 2
  • Power Out: 500W + 500W



  • 8 Mono Input Channels with silver plated XLRs and balanced Line Inputs
  • Ultra-low noise discrete Mic Preamps with +48 V Phantom Power
  • Extremely high headroom - offering more dynamic range
  • Balanced Inputs for highest signal integrity
  • Ultra-musical 3-band EQ+FREQ on all mono channels
  • Peak LEDs all Mono Channels
  • 2 Aux Send per channel for external effects and monitoring
  • 2X256DSP Digital of the effect system inside
  • Separate Master Mix, Headphone Outputs
  • 2-Track Inputs assignable to Master Mix
  • Highly accurate 12 segment Bargraph Meters





Specifications

Mono Inputs

Mic Input: electronically balanced, discrete input configuration
Bandwidth: 10 Hz to 60 kHz ± 3 dB
Distortion (THD & N): 0.01% at +4 dBu, 1 kHz, Bandwidth 80 kHz
Mic E.I.N (22 Hz - 22 kHz)
-129.5 dBu, 150 Ohm source
-117.3 dBqp, 150 Ohm source
-132.0 dBu, input shorted
-122.0 dBqp, input shorted

TRIM range: +10dB to +60dB


Line Input: electronically balanced
Bandwidth 10 Hz to 60 kHz ± 3 dB
Distortion (THD&N): 0.01% at +4 dBu, 1 kHz, Bandwidth 80 kHz
Line level range: +10 dBu to -40 dBu

Equalization
Hi Shelving: 12 kHz +/-15 dB
Mid Range: 2.5 kHz +/-15 dB
Lo Shelving: 80 Hz +/-15 dB



Stereo inputs

Line Input: unbalanced
Bandwidth: 10 Hz to 55 kHz ±3 dB
Distortion (THD & N): 0.01% at +4 dBu, 1 kHz, bandwidth 80 kHz

Equalization
Hi Shelving: 12 kHz +/-15 dB
Lo Shelving: 80 Hz +/-15 dB, Q fixed 2 oct



Master Mix section


Max Output: +22 dBu balanced
Aux Send Max Out: +22 dBu unbalanced
Control Room Out: +22 dBu unbalanced
Signal-To-Noise Ratio: 112 dB, all channels at Unity Gain




Power supply
Mains Voltages AC 120V 60Hz or 230V 50Hz
