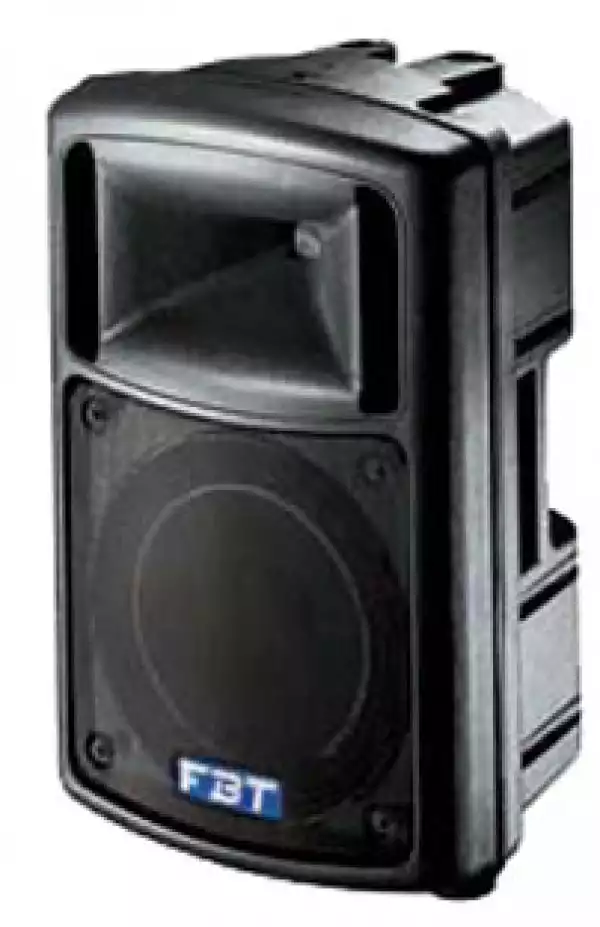

Sound Reinforcement Monitor 200W
·    Extremely light and sturdy enclosure made of polypropylene with gas injection moulding.
·    Custom horn, handled and stand adapter built into the structure
·    It can be used in all audio-professional amplification systems
·    Profile for use as a stage monitor
·    Four anchoring points (M10) for wall and ceiling installation
·    Full access to controls in all conditions of use
·    2-way 4 or 8 ohm available
·    10” custom B&C woofer with neodymium magnet ultra-light and ultra-powerful. Die-cast aluminium basket
·    1” Compression driver
·    Internal Crossover with very high quality components and designed for the utmost resistance to vibration
·    Drivers protected against overload and acoustic feedback
·    Flat frequency response over the entire dispersion angle
·    Recommended amplifier 250W Ohm
·    SPL 121/124 dB

·

Inputs panel with 2 Neutrik™ Speakon NL-4 connectors and links
FBTMaxX 2 - Specifications




Configuration


way


2




Recommended amplifier


W rms


250




Short term power   (IEC 268-5)


W


500




Nominal impedance


Ohm


4/8




Frequency response


@-6dB


50Hz - 20kHz




Low frequency woofer


inch


1x10" - 2" Ø coil




High frequency driver


inch


1x1" + horn  - 1,4" Ø coil




Sensitivity     (@1W/1m)


dB


97




Maximum SPL


dB


121/124




Dispersion


H x V


90° x 60°




Crossover frequency


kHz


1,8




Recommended HP filter










Recommended external filter





…




Input connectors





2 x speakon




Net dimensions (WxHxD)


mm


352x550x307




Net weight


kg


11




Shipping dimensions(WxHxD)


mm


435x630x395




Shipping weight


kg


13
