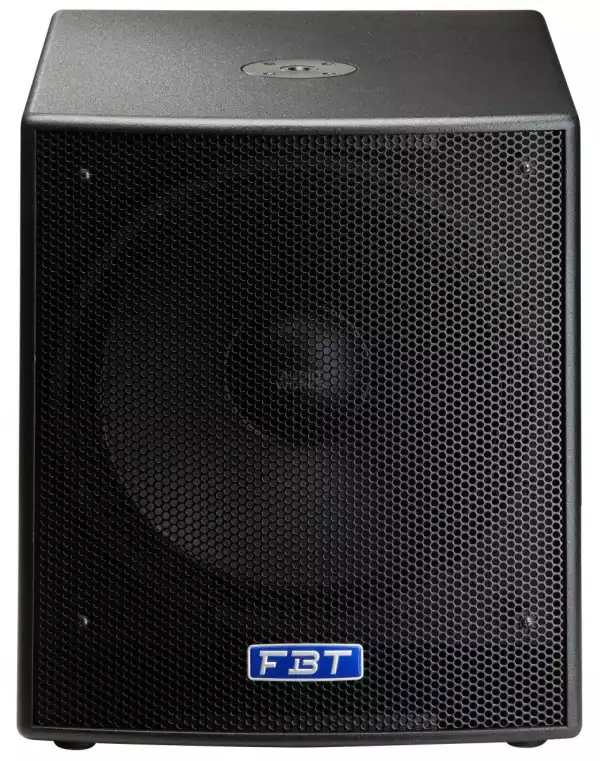

SUBLine 18S
1200W 133 / 136dB SPL Sound reinforcement subwoofer

The SUBLINE 18S is a passive model subwoofer from FBT that is built in birch 5/8” plywood with scratch & scuff resistant paint finish. It's aimed to extend the low frequency response to a wide range of FBT speaker systems.
Features:

Class D amplifier
Switch mode power supply
Digital Signal Processor with presets to match any other FBT speaker.
IN/OUT stereo makes it possible to use only one subwoofer with Left and Right satellites.
Neutrik Speakon NL - 4MDV connectors IN & LINK OUT
Additional optional wheels, ergonomic integrated carrying handles and light cabinet allow an easy transport.




Specifications:




Model: SUBLine 18S
Configuration way: reflex
Recommended amplifier: 1200W
Short term power IEC 268-5: 2400W
Nominal impedance: 4 Ohm
Frequency response (@-6dB): 33hz - 400hz
Low frequency woofer (inch): 18 - 3 coil
Sensitivity (@1W/1m) dB: 98,5
Maximum SPL c ont/peak (Bi-Amp) dB: 133 / 136 half-space
Dispersion H x V: omnidirectional
Crossover frequency kHz: external active
Recommended HP filter: 28hz - 24dboct
Input connectors: 2 x Speakon NL4 in & throu
Net dimensions (WxHxD) mm / inch: 510x629x650 / 20.07x24.76x25.59
Net weight kg/lb: 39 / 85.98
Transport dimensions(WxHxD) mm / inch: 700x790x800 / 27.55x31.10x31.49
Transport weight kg/lb: 50 / 110.23
