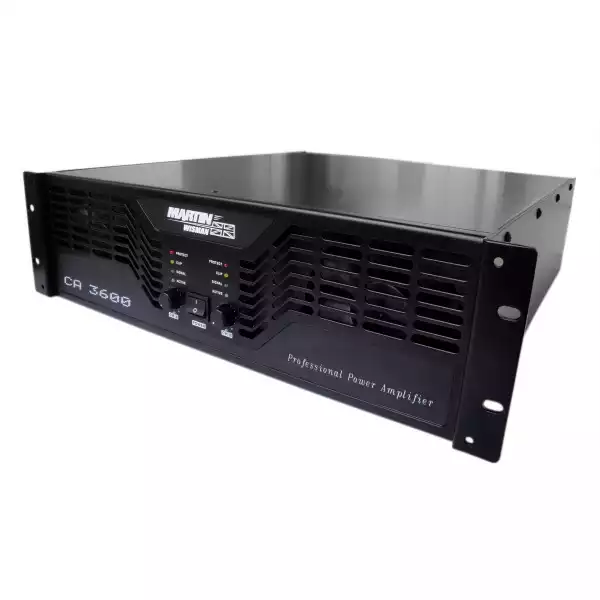

CA 3600
Professional Power Amplifier
The CA Series professional power amplifiers offer Martin Wisman renowned integrity and can handle exceptionally high power ratings in a compact, light weight 3RU package. The M Series amps also feature Automatic Clip Limiting to protect connected drivers; Impedance sensing to accommodate varying impedance outputs; tunnel-cooled,high efficiency heat sinks; and variable-speed DC fans to limit the operating temperature and extend amplifier life.
Specifications
|
Rated power bridge mode 8 Ohms |
3600Watts @ 1 kHz at <0.5% T.H.D. |
|
Rated power (2 X4 Ohms): |
1800 Watts per channel @ 1 kHz at <0.5% T.H.D. both channels driven |
|
Rated power (2 X 8 Ohms): |
1200 Watts per channel @ 1 kHz at <0.5% T.H.D.both channels driven |
|
Power bandwidth: |
20 Hz - 20kHz; +0, -0.5 dB at rated 500 Watts 8 Ohm power |
|
T.H.D.(2 X 4 Ohms): |
<0.05%@900 Watts per channel from 20 HZ to 20 kHz |
|
T.H.D.(2 X 8 Ohms): |
<0.05%@600Watts per channel from 20 HZ to 20 kHz |
|
Minimum load impedance: |
2 Ohms |
|
Maximum RMS voltage swing: |
110Volts |
|
Frequency response: |
10 Hz - 50 kHz; +0, -3 dB at 1 Watt |
|
Input CMRR: |
>-65 dB @ 1 kHz |
|
Rated power (1 X 4 Ohms): |
1980 Watts @ 1 kHz at <0.5% T.H.D. |
|
Rated power (1 X 8 Ohms): |
1300 Watts @ 1 kHz at <0.5% T.H.D. |
|
Phase response: |
+20 to -25 from 20 Hz to 20 kHz |
|
Input impedance: |
20 k Ohms, balanced; 10k Ohms, unbalanced |
|
Cooling: |
Tow temperature dependant variable speed 120mm high output DC fans |
|
Controls: |
Two front panel attenuators, rear panel mode switch and gain select switch |
|
Voltage gain: |
0.775V, 32 dB or 26 dB |
|
Crosstalk: |
>-60 dB @ 1 kHz at rated power @ 8 Ohms |
|
Hum and noise: |
>-104 dB, "A" weighted referenced to rated power @ 8 Ohms |
|
Slew rate: |
>25V/us |
|
Damping factor (8 Ohms): |
>800:1 @ 20Hz - 1 kHz |
|

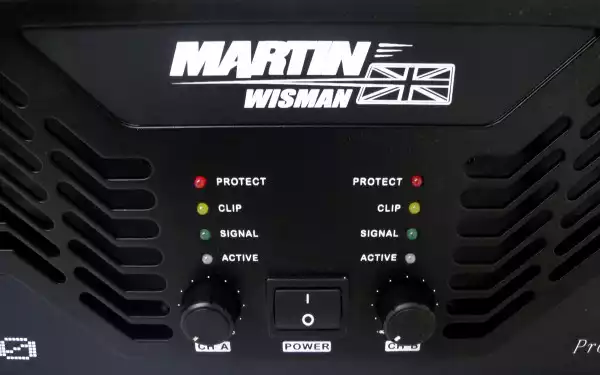

Indicator LEDs: |
2 Clip,2 signal presence, 2 active status, 2Protection |
|
Protection: |
Thermal, DC, turn-on bursts, incorrect loads |
|

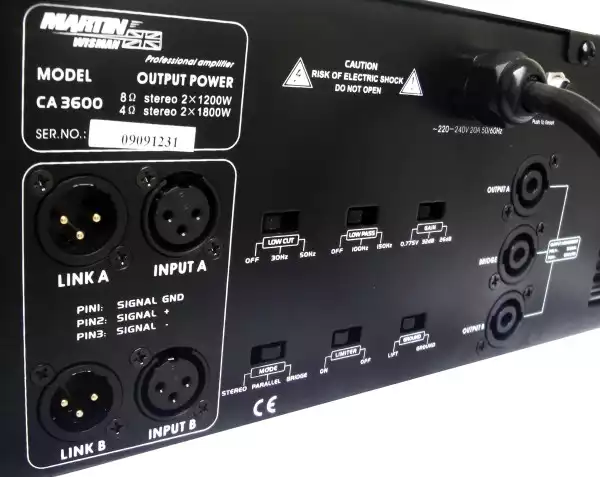

Connectors: |
XLR, Speakon and Binding Post speaker output, 240/230 Volt 20 amp IEC mains |
|
Construction: |
16 ga. Steel |
|
Dimensions: |
132mm x 483 mm x 498 mm |
|
Net weight: |
36kg |
|
Gross weight: |
39kg |
