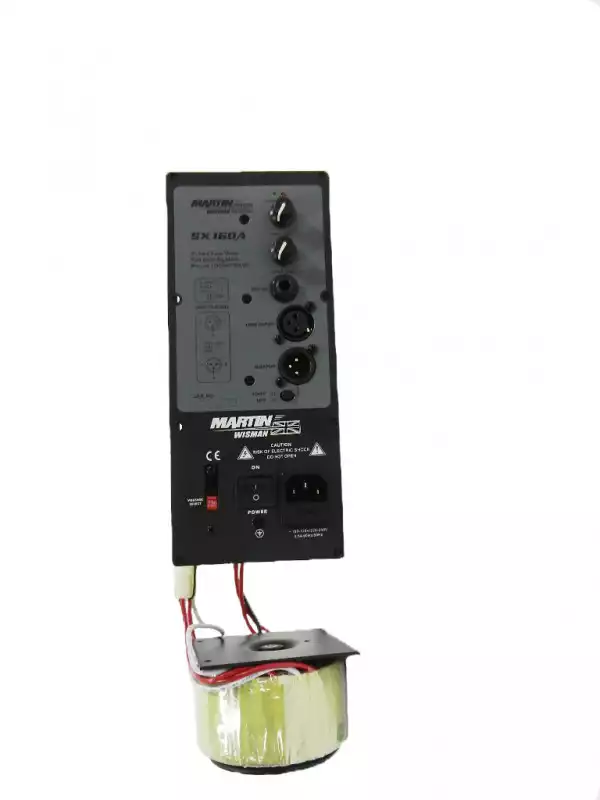

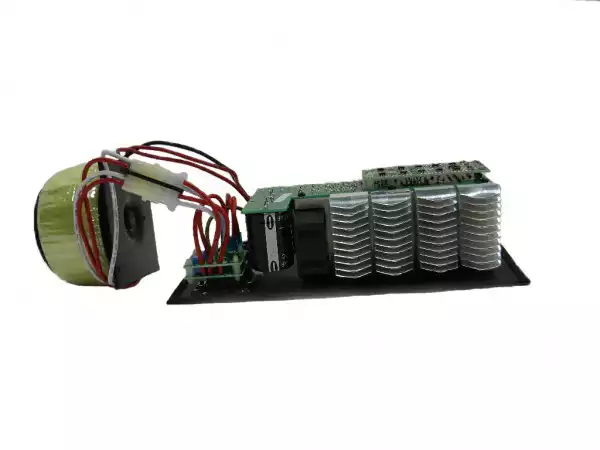

MARTIN WISMAN SPX 160A AMP MODULE
Šifra: 7436
106,00 EUR
PDV uračunat u cijenu
Prikazana cijena je za komad.
Garantiramo najnižu cijenu na tržištu!
U slučaju da pronađete isti proizvod po povoljnijoj cijeni,
molimo Vas da nas kontaktirate na:
info@player.hr
Key Features
High Impact Molded Polypropylene Enclosure
08L120-82 8 LF Transducer
1.5" Voice Coil, 1" Exit Aluminium Compression Driver
5 Integral Suspension Points
Complete Mounting Solutions
Smooth Response With High Power Handling Capacity (Continuous Program/RMS), 480W/120W
90 x 60 Coverage Pattern
Technical Specifications
Freq. Range (-10dB):
60Hz~20kHz
Freq. Response (-3dB):
75Hz~20kHz
Rec.Hipass Frequency:
50Hz
Axial Sensitivity:
94dB(1W/1m)
Max Calculated SPL:
120dB
Rated System Power:
120W Continuous 480W Peak
LF Transducer:
08L120-82
HF Transducer:
25H34-82
Crossover Frequency:
2.0kHz
Nominal Impedance:
8 Ohms
Connector:
2 x NL4 Speakon
Dim (HxWxD):
435mm x 255mm x 245mm
Net Weight:
8Kg
Shipping Weight:
9Kg
Horizontal Coverage:
90º
Vertical Coverage:
60º
High Impact Molded Polypropylene Enclosure
08L120-82 8 LF Transducer
1.5" Voice Coil, 1" Exit Aluminium Compression Driver
5 Integral Suspension Points
Complete Mounting Solutions
Smooth Response With High Power Handling Capacity (Continuous Program/RMS), 480W/120W
90 x 60 Coverage Pattern
Technical Specifications
Freq. Range (-10dB):
60Hz~20kHz
Freq. Response (-3dB):
75Hz~20kHz
Rec.Hipass Frequency:
50Hz
Axial Sensitivity:
94dB(1W/1m)
Max Calculated SPL:
120dB
Rated System Power:
120W Continuous 480W Peak
LF Transducer:
08L120-82
HF Transducer:
25H34-82
Crossover Frequency:
2.0kHz
Nominal Impedance:
8 Ohms
Connector:
2 x NL4 Speakon
Dim (HxWxD):
435mm x 255mm x 245mm
Net Weight:
8Kg
Shipping Weight:
9Kg
Horizontal Coverage:
90º
Vertical Coverage:
60º
SPX 160A AMP MODULE
Key Features
- High Impact Molded Polypropylene Enclosure
- 08L120-82 8 LF Transducer
- 1.5" Voice Coil, 1" Exit Aluminium Compression Driver
- 5 Integral Suspension Points
- Complete Mounting Solutions
- Smooth Response With High Power Handling Capacity (Continuous Program/RMS), 480W/120W
- 90 x 60 Coverage Pattern
Technical Specifications
| Freq. Range (-10dB): | 60Hz~20kHz |
| Freq. Response (-3dB): | 75Hz~20kHz |
| Rec.Hipass Frequency: | 50Hz |
| Axial Sensitivity: | 94dB(1W/1m) |
| Max Calculated SPL: | 120dB |
| Rated System Power: | 120W Continuous 480W Peak |
| LF Transducer: | 08L120-82 |
| HF Transducer: | 25H34-82 |
| Crossover Frequency: | 2.0kHz |
| Nominal Impedance: | 8 Ohms |
| Connector: | 2 x NL4 Speakon |
| Dim (HxWxD): | 435mm x 255mm x 245mm |
| Net Weight: | 8Kg |
| Shipping Weight: | 9Kg |
| Horizontal Coverage: | 90º |
| Vertical Coverage: | 60º |
