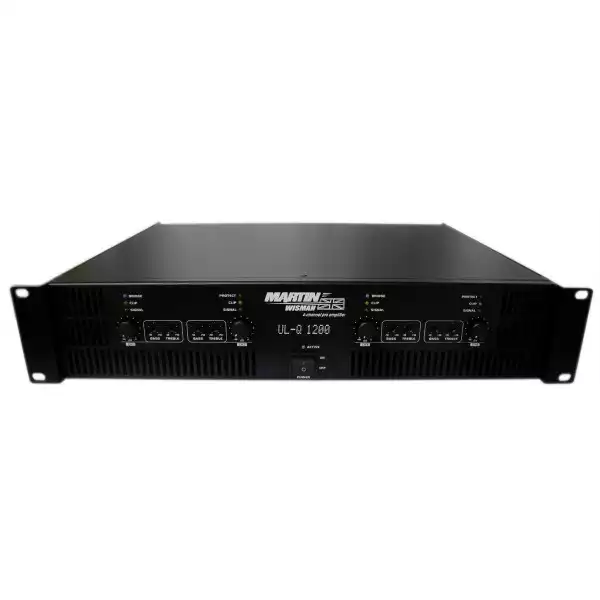

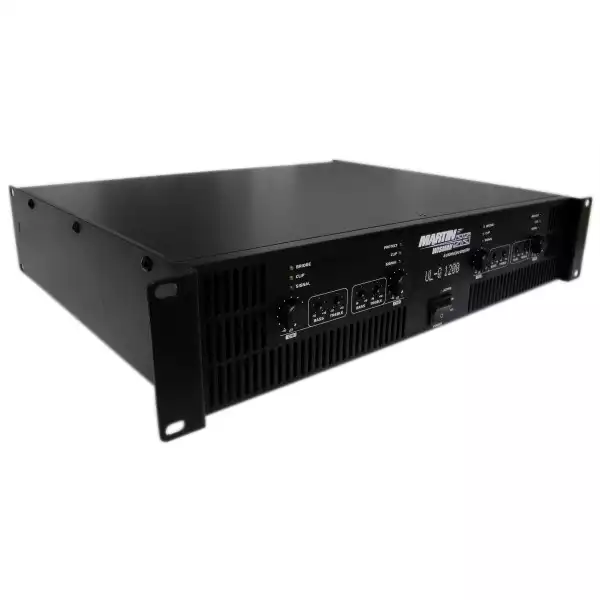

UL-Q 1200

4-Channel Power Amplifier

• Independent Bassand Treblecontrol for each channel.
• Three power configerations ; four channe!4 X 200W, 3 channel 2 X 200W + 1 X 600W
• or 2 channel 2X600W.

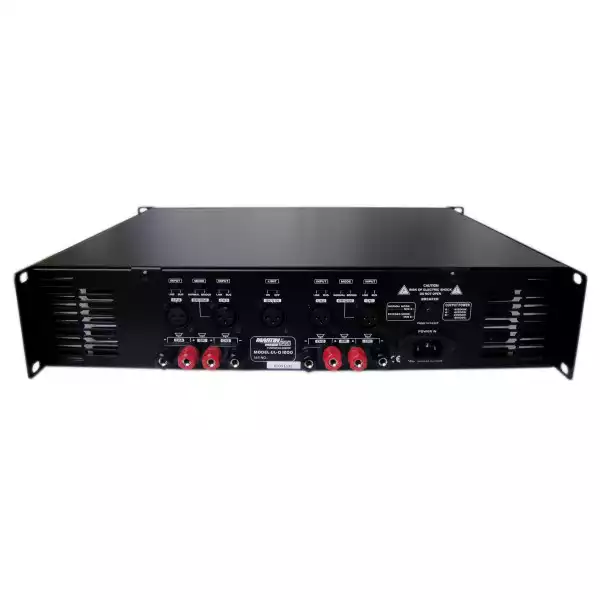

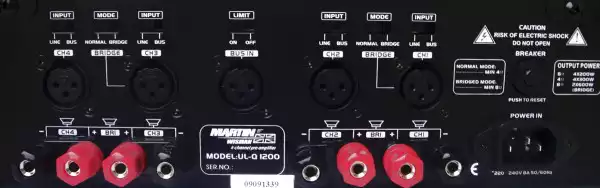

• Individual fourchannel inputs and switchable global bus input, independent volume control for 4 channels, recessed Treble and Bass control,
• Independent signal indication, independent clipindication. *Bridge modeswitch forchannel 1&2 andchannel 3&4, bridge and common protection
• LED indicators. •Balance BUS IN available.

• 8 Ohm stereo  4X200W

• 4 Ohm stereo  4X300W

• 8 Ohms bridged  2X600W

• Weight 16kg

Minimum Guaranteed Power

• 1 kHz with 0.5%THD
• 4-Channel, 8 ohms     4X200W
• 4-Channel, 4 ohms      4X300W
• Bridge -stereo, Sohms  2X600W

• Performance Sensitivity (volts RMS) for full rated power at 8 ohms    0.775V
• Frequency Response (at 1 watt,20Hz - 25kHz)    + OdB, -0.5dB
• Phase Response (at 1 watt, 20Hzto20 kHz)    + 10' ,-20"
• Signal to Noise Ratio below rated power A-weighted    >100dB
• Total Harmonic Distortion (THD) at 1 full bandwidth power, from 20 Hz to 20 kHz    sSO.1%
• Interrnodulation Distortion (IMD) 60 Hz and 7kHz at 4:1 .fromfull rated outputto -35 dB    sSO.05%
• Damping Factor (8ohm): 20 Hzto 400 Hz    ^200
• Input Impedance (nominallybalanced, nominally unbalanced)    20 kilohms, lOkilohms

Performance

• Load Impedance (Note: Safe withall types ofloads)
• 4-Channel Bridge-Stereo     4-8 ohms 8 ohms
• AC Line Voltage and Frequency Configurations Available (+10%)         -220-240 V and50/60 Hz
• AC Line Current (both amplifiers draw no more than 90 wattsat idle)      8A



Construstion

• Ventilation                                Flow-through ventilation fromfront to back
• Cooling                                    Proportional speed fan
• Dimensions  H x W x D:             89mmX483mmx496mm
• Net Weight/Shipping Weight       16kg/19kg
