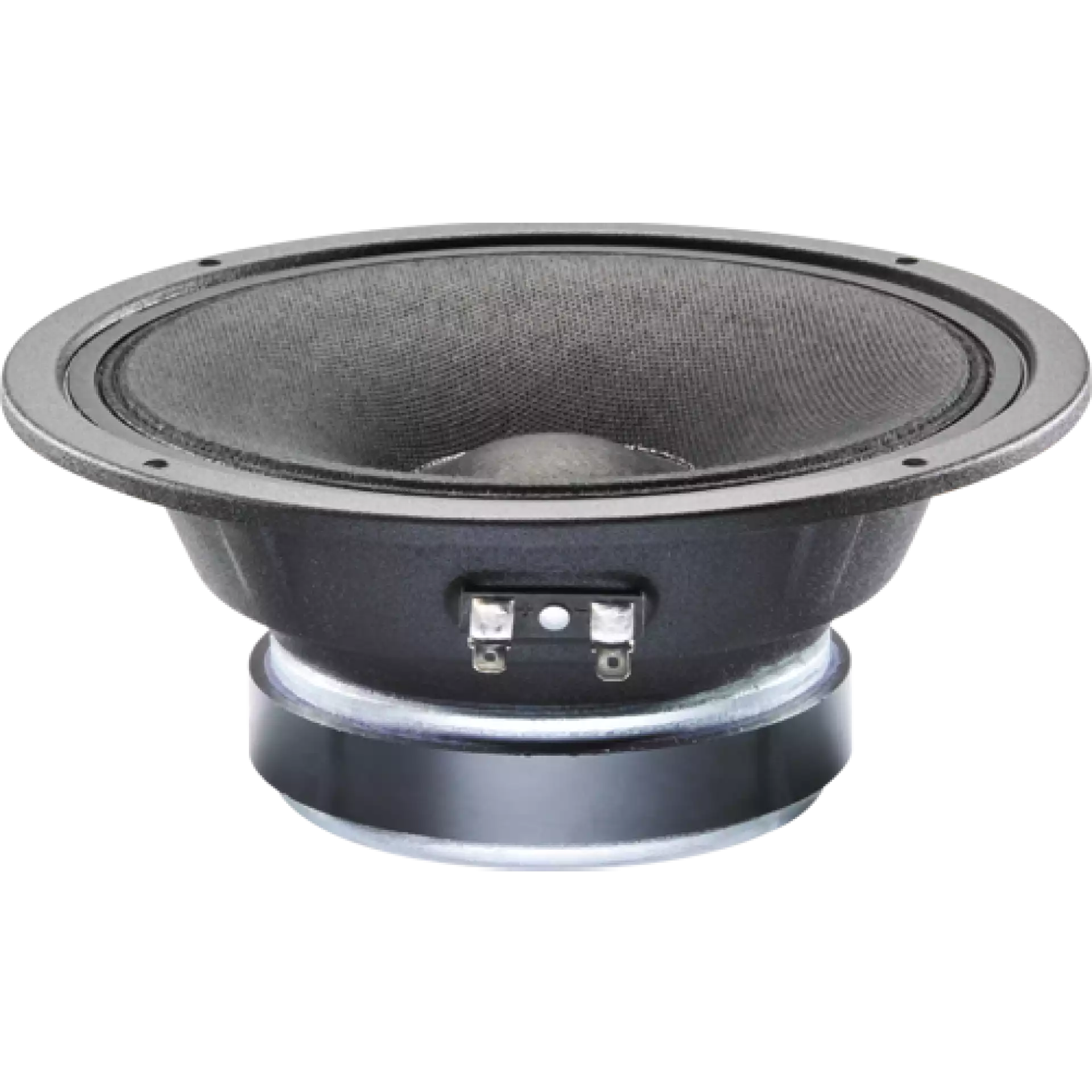

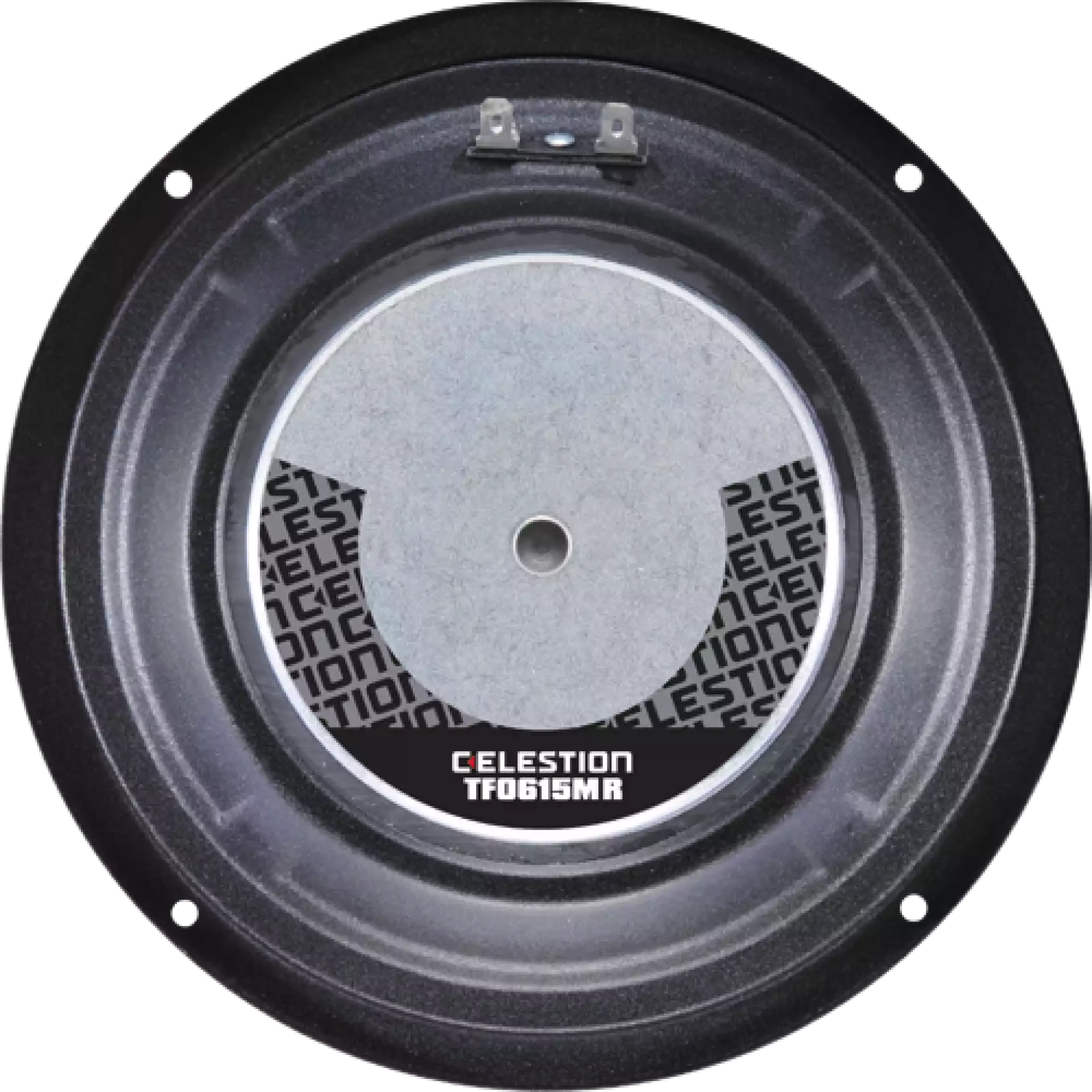

CELESTION TF 0615MR- ugradbeni zvučnik

Name: CELESTION TF 0615MR- ugradbeni zvučnik - Player doo
Brand: Celestion
SKU: 3288
Price: 59 RSD
Availability: schema.org
Rating: 88 (20 reviews)

Šifra: 3288

Cijena na dan 10.09.2026: 59,00 EUR

Obročno plaćanje: 59,00 EUR

Aktualna cijena: 59,00 EUR

Aktualna cijena vrijedi za gotovinsko, virmansko ili jednokratno kartično plaćanje. Za obročno kartično plaćanje primjenjuje se navedena cijena za obročno plaćanje.

JAMSTVO NAJNIŽE CIJENE
Pronašli ste isti proizvod po nižoj cijeni? Kontaktirajte nas.
Ako pronađete isti proizvod, u istoj konfiguraciji i pod usporedivim uvjetima kupnje, po nižoj javno dostupnoj cijeni kod drugog trgovca u Republici Hrvatskoj, javite nam se prije kupnje.
Nakon provjere ponude, nastojat ćemo vam ponuditi povoljniju cijenu.
info@player.hr

Dodaj na listu želja

Prijavi povoljniju cijenu Obavijesti me ako cijena padne Postavi pitanje

Opcija:

6 mid-range speaker drive unit providing 94dB sensitivity and 100Wrms

Specifications

100W

Nominal Power Rating

95dB

Sensitivity

1.5in

Voice coil diameter

Nominal Diameter

152mm/6in

Nominal Power Rating

100W

Continuous Power Rating

200W

Sensitivity

95dB

Rated Impedance

8Ω

Frequency Range

85Hz-6000Hz

Voice coil diameter (mm)

38mm

Voice coil diameter (in)

1.5in

Chassis Type

Pressed steel

Magnet Type

Ferrite

Magnet Weight

0.48kg/17oz

Voice coil material

Round copper

Former Material

Polyimide

Cone material

Kevlar loaded paper

Surround Material

Cloth sealed

Suspension

Single

Xmax

2.5mm/0.1in

Gap Depth

6mm/0.24in

Voice coil winding width

6.5mm/0.26in

Packed Dimensions & Weight

Single pack size W x D x H

190mm x 200mm x 90mm/7.5in x 7.9in x 3.5in

Single pack weight

2.0kg/4.4lb

Small Signal Parameters

153.94cm²/23.86in²

104.70Hz

Mms

12.09g/0.43oz

Qms

3.949

Qes

0.719

Qts

0.608

7.08Ω

Vas

6.41L/0.23ft³

8.85Tm

Cms

0.19mm/N

Rms

2.01kg/s

Le (at 1kHz)

0.47mH

Mounting Information

Mounting slot dimensions

4.3mm/0.17in Ø

Number of mounting slots

Overall Depth

74mm/2.91in

Overall Diameter (mm)

178mm

Overall Diameter (in)

7.01in

Cut-out diameter

147mm/5.79in

Mounting PCD Range

168.5mm/6.63in

Unit Weight

1.4kg/3.1lb

Frequency Response and Impedance Curves

Topmost curve: Frequency response on axis | Secondary curve: Frequency response at 45° off axis

Power Rating: Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.

Continuous Power Rating is defined as 3dB greater than the AES rating.

Sensitivity measured on axis at 1W, 1m in 2Π anechoic environment.

Xmax is derived from: (voice coil winding width-gap depth)/2.

Small Signal Parameters are measured after unit subjected to pre-conditioning signal.
