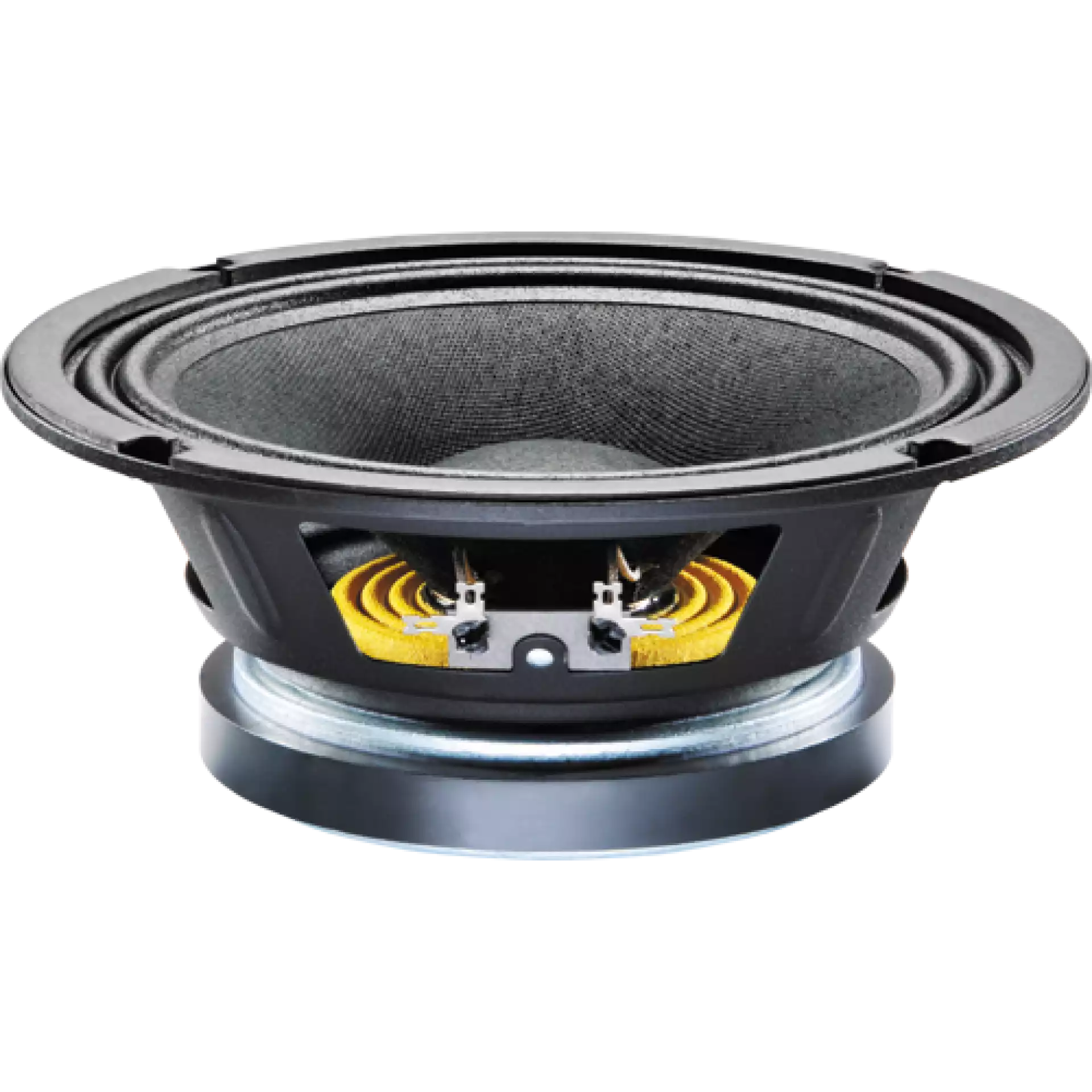

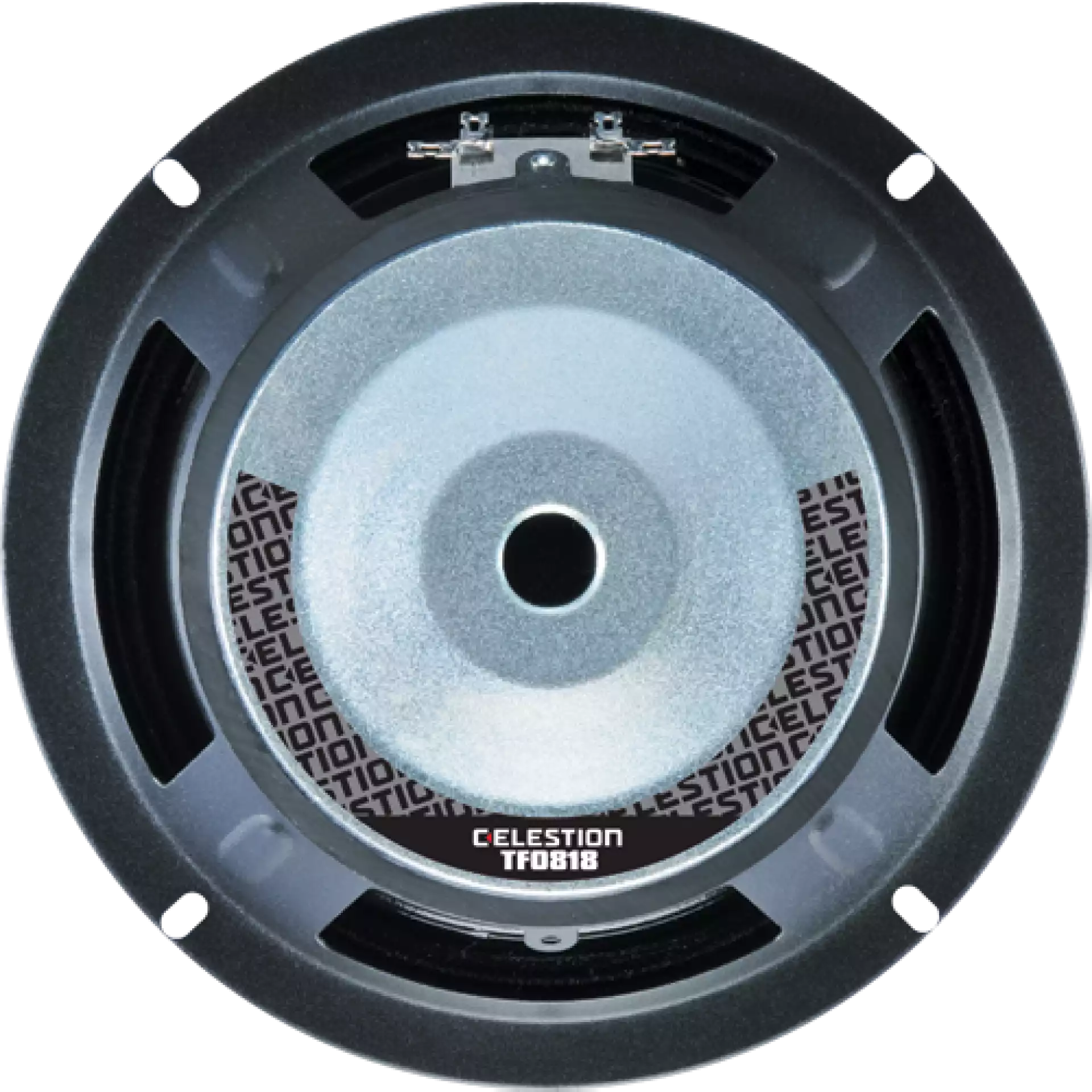

CELESTION TF 0818- ugradbeni zvučnik
Šifra: 2795
Regularna cijena:
70,00 EUR
Cijena sa popustom *
Cijena za kupovinu na rate:
Cijena sa popustom *
65,00 EUR
PDV je uračunat u cijenu
Iznos rate:
*Akcijska cijena (cijena sa popustom) vrijedi isključivo za plaćanje gotovinom, virmanom (uplatom na račun) ili jednokratnim plaćanjem debitnom ili kreditnom karticom. Navedeni uvjeti odnose se na ostvarivanje akcijske cijene te ne predstavljaju pravo na dodatni popust.
Prikazana cijena je za komad.
Garantiramo najnižu cijenu na tržištu!
U slučaju da pronađete isti proizvod po povoljnijoj cijeni,
molimo Vas da nas kontaktirate na:
info@player.hr
- 8" low frequency driver providing 94dB sensitivity and 100Wrms
Frequency Response and Impedance Curves
General specifications
| Nominal diameter (mm/in) | 203/8 |
| Power Rating (AES, W rms) | 100 |
| Nominal impedance (�) | 8 |
| Voice coil diameter (mm/in) | 44.5/1.75 |
| Magnet type | Ferrite |
| Magnet weight (kg/oz) | 0.88/31 |
| Chassis type | Pressed steel |
| Sensitivity (dB) | 94 |
| Frequency range (Hz) | 70-6000 |
| Coil material | Round copper |
| Former material | Polyimide |
| Cone material | Kevlar loaded paper |
| Surround material | Cloth-sealed |
| Suspension | Single |
| Xmax (mm/in) | 3.4/0.13 |
| Gap depth (mm/in) | 6.0/0.24 |
| Voice coil winding width (mm/in) | 12.7/0.50 |
Small Signal Parameters
| D (m/in) | 0.17/6.69 |
| Fs (Hz) | 95 |
| Mmd (g/oz) | 15.60/0.55 |
| Mair | 1.93/0.068 |
| Qms | 3.83 |
| Qes | 0.50 |
| Qts | 0.44 |
| Re (�) | 6.40 |
| Vas (lt/ft3) | 12.6/0.44 |
| BI (Tm) | 11.36 |
| Cms (mm/N) | 0.17 |
| Rms (kg/s) | 2.62 |
| Le (mH) | 0.75 |
Mounting Information
| Overall diameter (mm/in) | 208/8.19 |
| Overall depth (mm/in) | 99/3.54 |
| Cut-out diameter (mm/in) | 183/7.20 |
| Mounting slot dimensions (mm/in) | 9.5 x 5.5/0.37 x 0.22 |
| Number of mounting slots | 8 |
| Mounting slot PCD range (mm/in) | 195-199/7.68-7.83 |
| Unit weight (kg/lb) | 2.3/5.1 |
Packed Dimensions and Weight
| Single pack size W x D x H (mm/in) | 230 x 230 x 110/9.1 x 9.1 x 4.3 |
| Single pack weight (kg/lb) | 3/6.6 |
| Multipack (140) size W x D x H (mm/in) | 1070 x 850 x 860/42.1 x 33.5 x 33.9 |
| Multipack (140) weight (kg/lb) | 435/959 |
