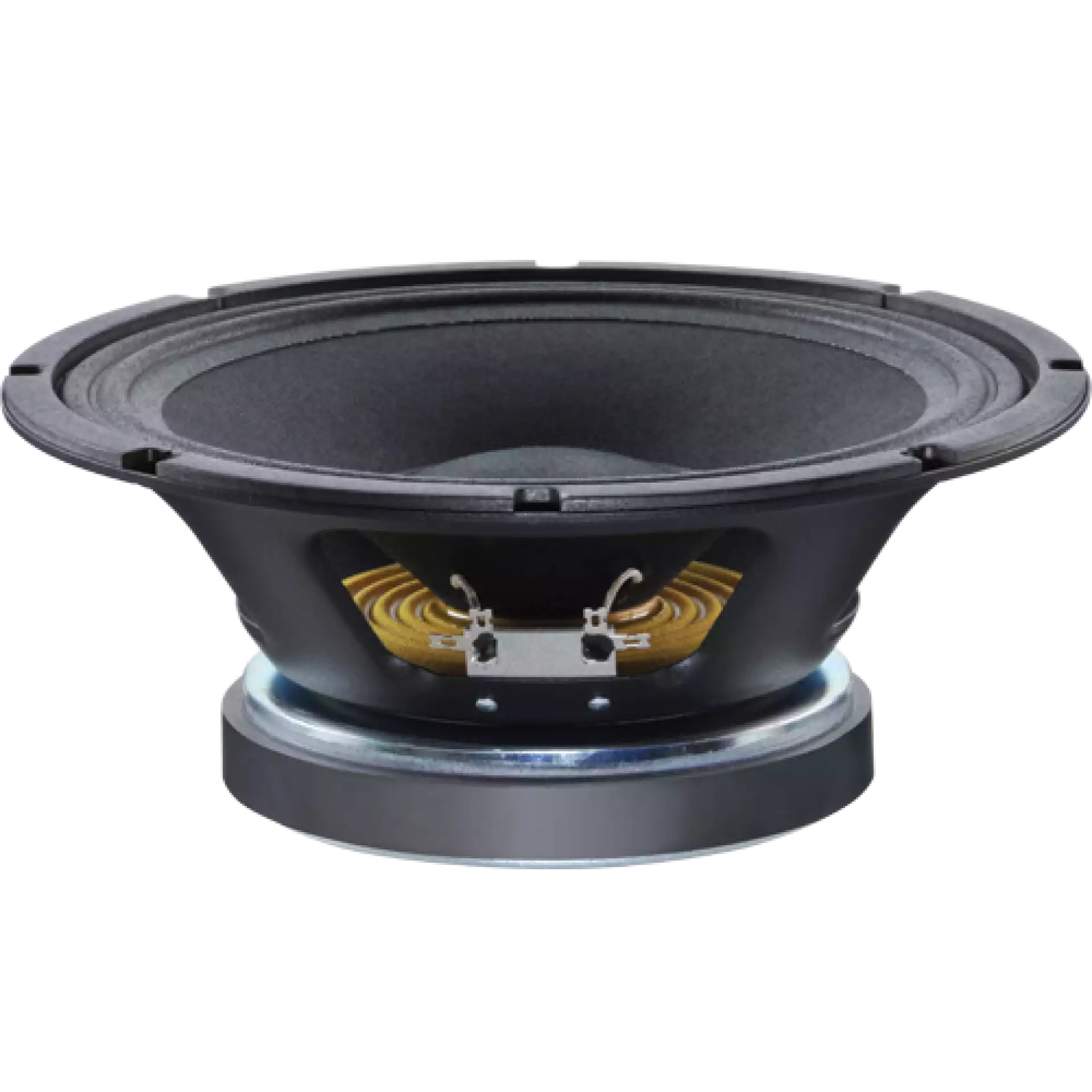

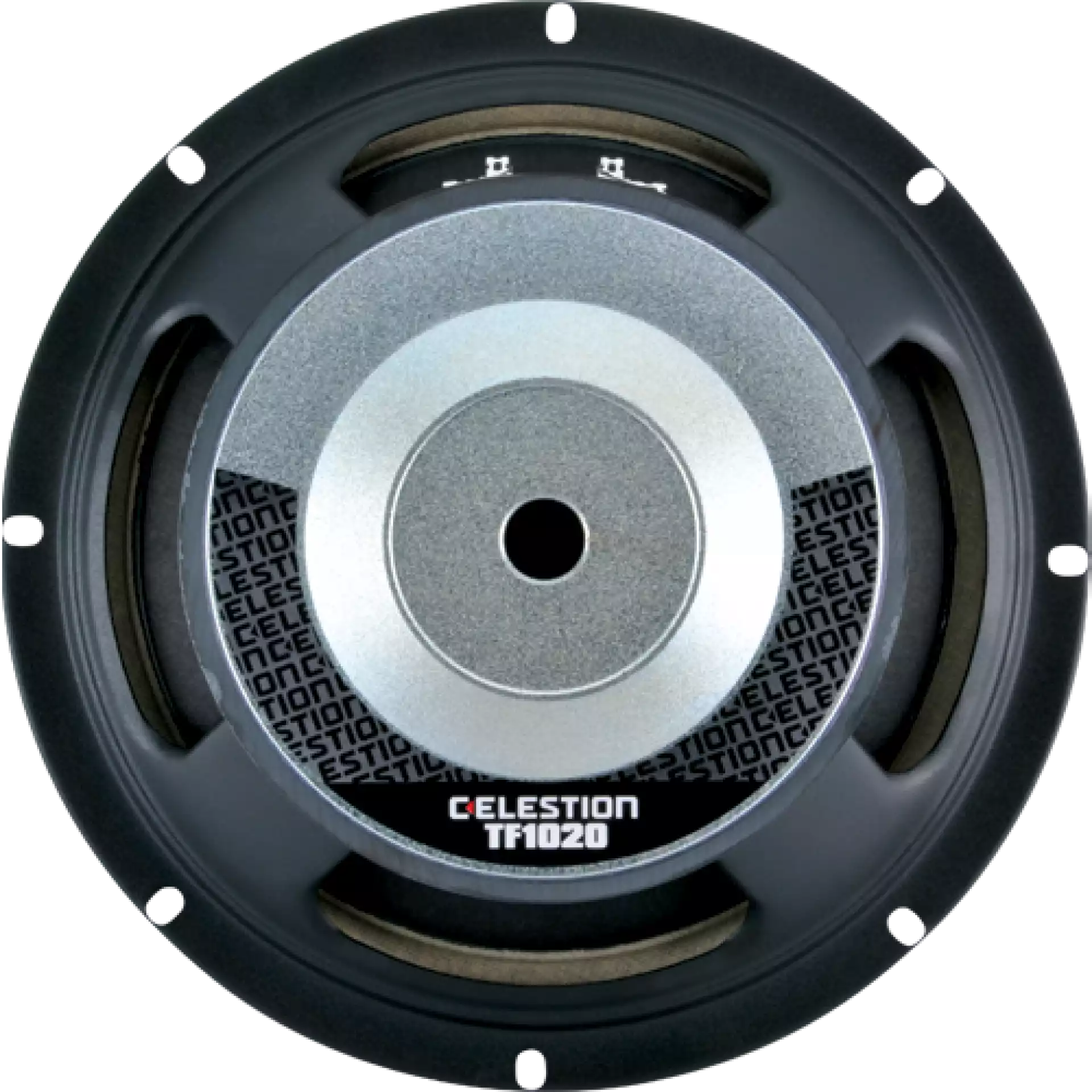

CELESTION TF 1020- ugradbeni zvučnik

Name: CELESTION TF 1020- ugradbeni zvučnik - Player doo
Brand: Celestion
SKU: 1776
Price: 50 RSD
Availability: schema.org
Rating: 88 (20 reviews)

Šifra: 1776

Cijena na dan 10.09.2026: 70,00 EUR

Najniža cijena u posljednjih 30 dana: 70,00 EUR

Aktualna cijena: 50,00 EUR

Aktualna cijena vrijedi za gotovinsko, virmansko ili jednokratno kartično plaćanje. Za obročno kartično plaćanje primjenjuje se navedena cijena za obročno plaćanje.

JAMSTVO NAJNIŽE CIJENE
Pronašli ste isti proizvod po nižoj cijeni? Kontaktirajte nas.
Ako pronađete isti proizvod, u istoj konfiguraciji i pod usporedivim uvjetima kupnje, po nižoj javno dostupnoj cijeni kod drugog trgovca u Republici Hrvatskoj, javite nam se prije kupnje.
Nakon provjere ponude, nastojat ćemo vam ponuditi povoljniju cijenu.
info@player.hr

Dodaj na listu želja

Prijavi povoljniju cijenu Obavijesti me ako cijena padne Postavi pitanje

Opcija:

10in mid bass driver provides 97dB sensitivity and 150Wrms

Specifications

150W

Nominal Power Rating

97dB

Sensitivity

2in

Voice coil diameter

Nominal Diameter

254mm/10in

Nominal Power Rating

150W

Additional Impedances

Continuous Power Rating

300W

Sensitivity

97dB

Rated Impedance

8Ω

Frequency Range

60Hz-6000Hz

Voice coil diameter (mm)

50mm

Voice coil diameter (in)

2in

Chassis Type

Pressed steel

Magnet Type

Ferrite

Magnet Weight

1.2kg/42oz

Voice coil material

Round copper

Former Material

Polyimide

Cone material

Kevlar loaded paper

Surround Material

Cloth-sealed

Suspension

Single

Xmax

2mm/0.08in

Gap Depth

8mm/0.31in

Voice coil winding width

12mm/0.47in

Packed Dimensions & Weight

Single pack size W x D x H

280mm x 280mm x 120mm/11.0in x 11.0in x 4.7in

Single pack weight

4.2kg/9.2lb

Multi Pack Qty

Multi pack size W x D x H

1080mm x 880mm x 840mm/42.5in x 34.6in x 33.1in

Multi pack weight

390kg/860lb

Small Signal Parameters

346.36cm²/53.69in²

69.40Hz

Mms

31.10g/1.10oz

Qms

2.454

Qes

0.372

Qts

0.323

5.45Ω

Vas

28.75L/1.02ft³

14.10Tm

Cms

0.17mm/N

Rms

5.52kg/s

Le (at 1kHz)

0.60mH

Mounting Information

Mounting slot dimensions

8mm x 6mm/0.31in x 0.24in Ø

Mounting slot PCD

245mm/9.65in

Number of mounting slots

Overall Depth

110mm/4.33in

Overall Diameter (mm)

256mm

Overall Diameter (in)

10.08in

Cut-out diameter

229mm/9.02in

Unit Weight

3.7kg/8.2lb

Frequency Response and Impedance Curves

Topmost curve: Frequency response on axis | Secondary curve: Frequency response at 45° off axis

Power Rating: Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.

Continuous Power Rating is defined as 3dB greater than the AES rating.

Sensitivity measured on axis at 1W, 1m in 2Π anechoic environment.

Xmax is derived from: (voice coil winding width-gap depth)/2.

Small Signal Parameters are measured after unit subjected to pre-conditioning signal.
