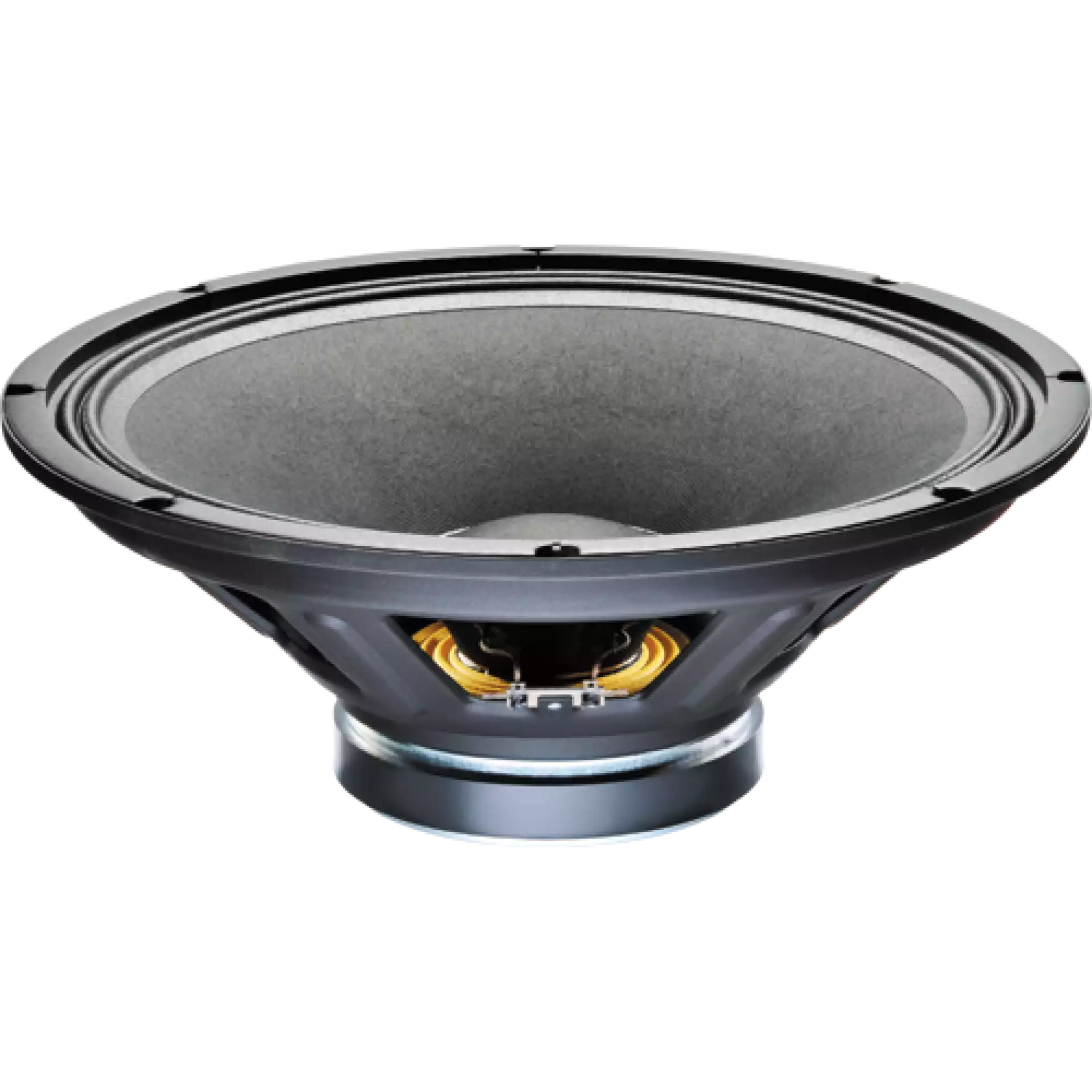

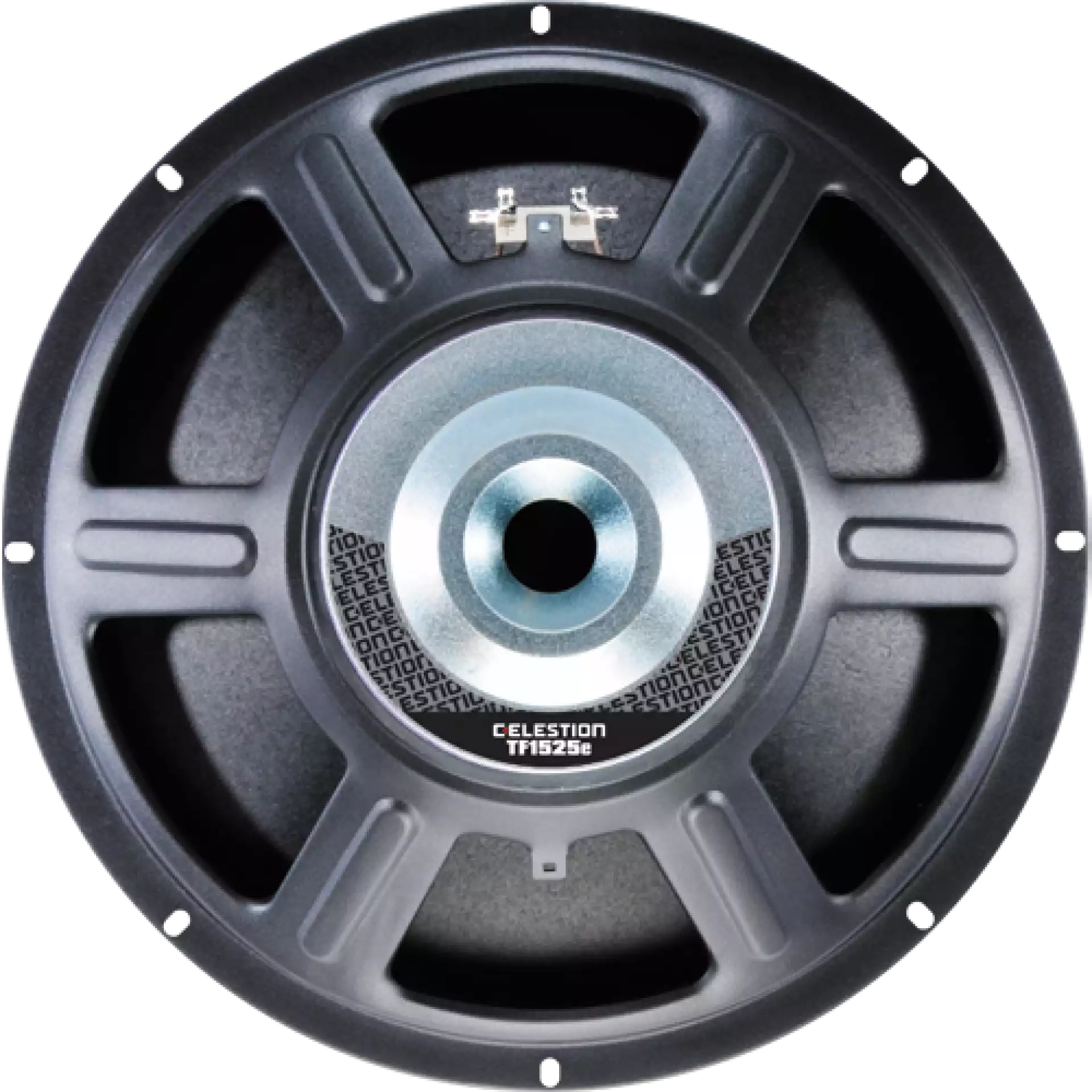

CELESTION TF 1525e- ugradbeni zvučnik
Šifra: 2297
102,60 EUR
*Cijena sa popustom može se ostvariti ukoliko se plaća gotovinom, virmanom (preko računa) ili debitnom i kreditnom karticom odmah i odjednom.
Prikazana cijena je za komad.
Garantiramo najnižu cijenu na tržištu!
U slučaju da pronađete isti proizvod po povoljnijoj cijeni,
molimo Vas da nas kontaktirate na:
info@player.hr
- 15" speaker driver provides extended low frequency range
Frequency response impedance curves
| Nominal diameter (mm/in) | 381/15 |
| Power Rating (AES, W rms) | 300 |
| Nominal impedance (?) | 8 |
| Voice coil diameter (mm/in) | 63.5/2.5 |
| Magnet type | Ceramic |
| Magnet weight (kg/oz) | 1.4/50 |
| Chassis type | Pressed steel |
| Sensitivity (dB) | 97 |
| Frequency range (Hz) | 45-3500 |
| Coil material | Round copper |
| Former material | Round copper |
| Cone material | Kevlar loaded paper |
| Surround material | Cloth-sealed |
| Suspension | Single |
| Xmax (mm/in) | 3.3/0.13 |
| Gap depth (mm/in) | 8.0/0.31 |
| Voice coil winding width (mm/in) | 14.5/0.57 |
Small Signal Parameters
| Sd (m2/in2) | 0.086/132.57 |
| D (m/in) | 0.33/12.99 |
| Fs (Hz) | 48 |
| Mmt (g/oz) | 75.00/2.65 |
| Mmd (g/oz) | 62.70/2.21 |
| Qms | 6.85 |
| Qes | 0.57 |
| Qts | 0.53 |
| Re (?) | 6.83 |
| Vas (lt/ft3) | 148.7/5.25 |
| BI (Tm) | 16.40 |
| Cms (mm/N) | 0.20 |
| Rms (kg/s) | 3.30 |
Mounting Information
| Overall diameter (mm/in) | 385/15.16 |
| Overall depth (mm/in) | 163/6.42 |
| Cut-out diameter (mm/in) | 352/13.86 |
| Mounting slot dimensions (mm/in) | 9.2 x 6.2/0.36 x 0.24 |
| Number of mounting slots | 8 |
| Mounting slot PCD range (mm/in) | 369/14.56 |
| Unit weight (kg/lb) | 4.8/10.6 |
Packed Dimensions and Weight
| Single pack size W x D x H (mm/in) | 410 x 410 x 180/16.1 x 16.1 x 7.1 |
| Single pack weight (kg/lb) | 5.5/12.1 |
| Multipack (45) size W x D x H (mm/in) | 1200 x 1000 x 980/47.2 x 39.4 x 38.6 |
| Multipack (45) weight (kg/lb) | 248/547 |
