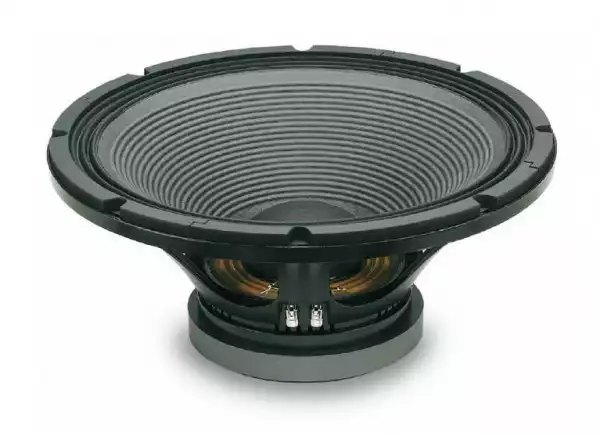

EIGHTEEN SOUND 18LW1400 8 Ohm - ugradbeni zvučnik
Šifra: 12463
Regularna cijena:
419,00 EUR
Cijena sa popustom *
Cijena za kupovinu na rate:
Cijena sa popustom *
359,00 EUR
PDV je uračunat u cijenu
Iznos rate:
*Akcijska cijena (cijena sa popustom) vrijedi isključivo za plaćanje gotovinom, virmanom (uplatom na račun) ili jednokratnim plaćanjem debitnom ili kreditnom karticom. Navedeni uvjeti odnose se na ostvarivanje akcijske cijene te ne predstavljaju pravo na dodatni popust.
Prikazana cijena je za komad.
Garantiramo najnižu cijenu na tržištu!
U slučaju da pronađete isti proizvod po povoljnijoj cijeni,
molimo Vas da nas kontaktirate na:
info@player.hr
18” Ferrite Chassis Driver
18” Ferrite Chassis
- 1000 Watt AES
- 8 Ohm
- 98 dB 1W/1M
- 28 - 2500 Hz
- Voice coil 4”
- Qts 0.29
- Fs 31 Hz
- Weight: 13.3 kg
General Specifications
| Nominal Diameter | 460 mm (18 in) |
| Rated Impedance | 8 Ohm |
| AES Power | 1000 W |
| Program Power | 1400 W |
| Peak Power | 7000 W |
| Sensitivity | 98 dB |
| Frequency Range | 28 - 2500 Hz |
| Power Compression @-10dB | 0,8 dB |
| Power Compression @-3dB | 2,1 dB |
| Power Compression @Full Power | 3,0 dB |
| Max Recomm. Frequency | 500 Hz |
| Recomm. Enclosure Volume | 130 - 350 lt. (4,59 - 12,36 cuft) |
| Minimum Impedance | 6,4 Ohm at 25°C |
| Max Peak To Peak Excursion | 50 mm (1,97 in) |
| Voice Coil Diameter | 100 mm (4 in) |
| Voice Coil winding material | copper |
| Suspension | Triple roll, Polycotton |
| Cone | Straight Ribbed, carbon fiber reinforced paper |
Thiele Small Parameters
| Fs | 31 Hz |
| Re | 5 Ohm |
| Sd | 0,1225 sq. mt. (189,88 sq. in.) |
| Qms | 7,2 |
| Qes | 0,31 |
| Qts | 0,29 |
| Vas | 297 lt. (10,49 cuft) |
| Mms | 190 gr. (0,42 lb) |
| BL | 24,7 Tm |
| Linear Mathematical Xmax | ± 9 mm (± 0,35 in) |
| Le (1kHz) | 2,3 mH |
| Ref. Efficiency 1W@1m (half space) | 96,5 dB |

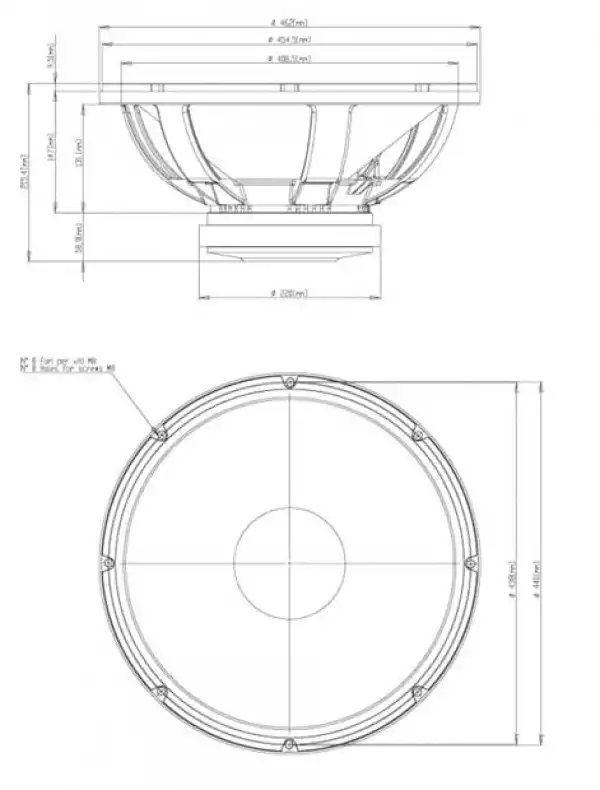

Mounting information
| Overall diameter | 462 mm (18,18 in) |
| N. of mounting holes and bolt | 8 |
| Mounting holes diameter | 8,5 mm (0,33 in) |
| Bolt circle diameter | 438-440 mm (17,24-17,32 in) |
| Front mount baffle cutout ø | 416 mm (16,38 in) |
| Rear mount baffle cutout ø | 422 mm (16,61 in) |
| Total depth | 215,4 mm (8,48 in) |
| Flange and gasket thickness | 26 mm (1,02 in) |
| Net weight | 13,3 kg (29,36 lb) |
| Shipping weight | 14,9 kg (32,9 lb) |
| Packaging Dimensions | 482 x 482 x 257 mm (19 x 19 x 10,1 in) |
