EMINENCE THE TONKER- ugradbeni zvučnik
Šifra: 6251
Na stanju
159,00 EUR
*Cijena sa popustom može se ostvariti ukoliko se plaća gotovinom, virmanom (preko računa) ili debitnom i kreditnom karticom odmah i odjednom.
Prikazana cijena je za komad.
Garantiramo najnižu cijenu na tržištu!
U slučaju da pronađete isti proizvod po povoljnijoj cijeni,
molimo Vas da nas kontaktirate na:
info@player.hr

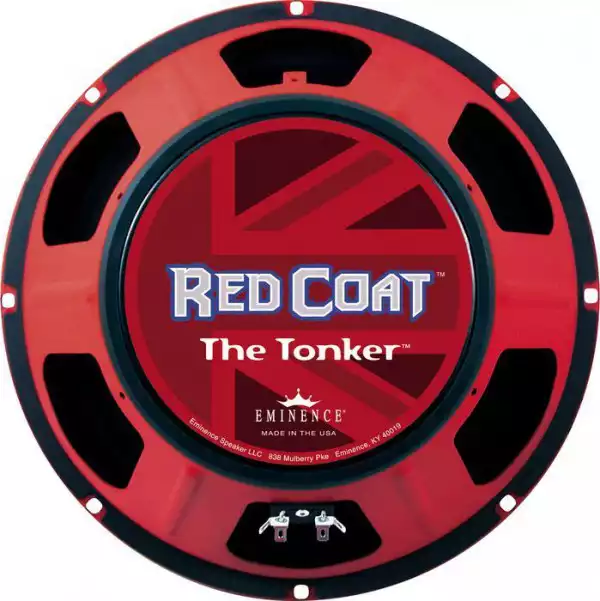

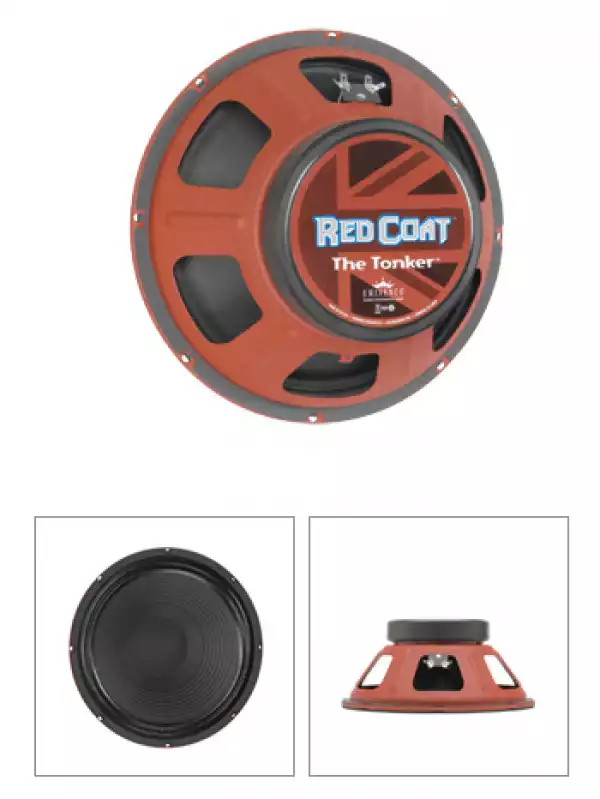

EMINENCE THE TONKER
150W, 8 ohm
| SPECIFICATION | |
| Nominal Basket Diameter | 12", 304.8mm |
| Nominal Impedence* | 8 ohms |
| Power Rating** | |
| Watts | 150W |
| Music Program | N/A |
| Resonance | 89Hz |
| Usable Frequency Range | 70Hz - 5.5kHz |
| Sensitivity*** | 102dB |
| Magnet Weight | 59 oz. |
| Gap Height | 70Hz - 5.5kHz |
| Voice Coil Diameter | 0.31", 7.92mm |
|
THIELE & SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 89Hz |
| DC Resistance (Re) | 7.36 |
| Coil Inductance (Le) | 0.47mH |
| Mechanical Q (Qms) | 10.02 |
| Electromagnetic Q (Qes) | 0.49 |
| Total Q (Qts) | 0.47 |
| Compliance Equivalent Volume (Vas) | 34.1 liters / 1.2 cu.ft. |
| Peak Diaphragm Displacement Volume (Vd) | 42cc |
| Mechanical Compliance of Suspension (Cms) | 0.09mm/N |
| BL Product (BL) | 17.4 T-M |
| Diaphragm Mass Inc. Airload (MMs) | 36 grams |
| Efficiency Bandwidth Product (EBP) | 181 |
| Maximum Linear Excursion (Xmax) | 0.8mm |
| Surface Area of Cone (Sd) | 519.5 cm2 |
| Maximum Mechanical Limit (Xlim) | N/A |
|
MOUNTING INFORMATION |
|
| Recommended Enclosure Volume | |
| Sealed | Acceptable |
| Vented | Acceptable |
| Driver Volume Displaced | 137.3 cu.in. / 2.25 liters |
| Overall Diameter | 12.02", 305.3mm |
| Baffle Hole Diameter | 10.97", 278.6mm |
| Front Sealing Gasket | Fitted as standard |
| Rear Sealing Gasket | Fitted as standard |
| Mounting Holes Diameter | 0.25", 6.4mm |
| Mounting Holes B.C.D. | 11.63", 295.4mm |
| Depth | 5.2", 132mm |
| Net Weight | 11.1 lbs, 5 kg |
| Shipping Weight | 13.2 lbs, 6 kgs |
|
MATERIALS OF CONSTRUCTION |
|
| Coil Construction | Copper voice coil |
| Coil Former | Polyimide former |
| Magnet Composition | Ferrite magnet |
| Core Details | Non-vented core |
| Basket Materials | Pressed steel basket |
| Cone Composition | Paper Cone |
| Cone Edge Composition | Paper cone edge |
| Dust Cap Composition | Zurette dust cap |
