MARTIN WISMAN HPLX 12- ugradbeni zvučnik
Šifra: 14100
Na stanju
Regularna cijena:
129,00 EUR
Cijena sa popustom *
Cijena za kupovinu na rate:
Cijena sa popustom *
69,00 EUR
PDV je uračunat u cijenu
Iznos rate:
*Cijena sa popustom može se ostvariti ukoliko se plaća gotovinom, virmanom (preko računa) ili debitnom i kreditnom karticom odmah i odjednom.
Prikazana cijena je za komad.
Garantiramo najnižu cijenu na tržištu!
U slučaju da pronađete isti proizvod po povoljnijoj cijeni,
molimo Vas da nas kontaktirate na:
info@player.hr

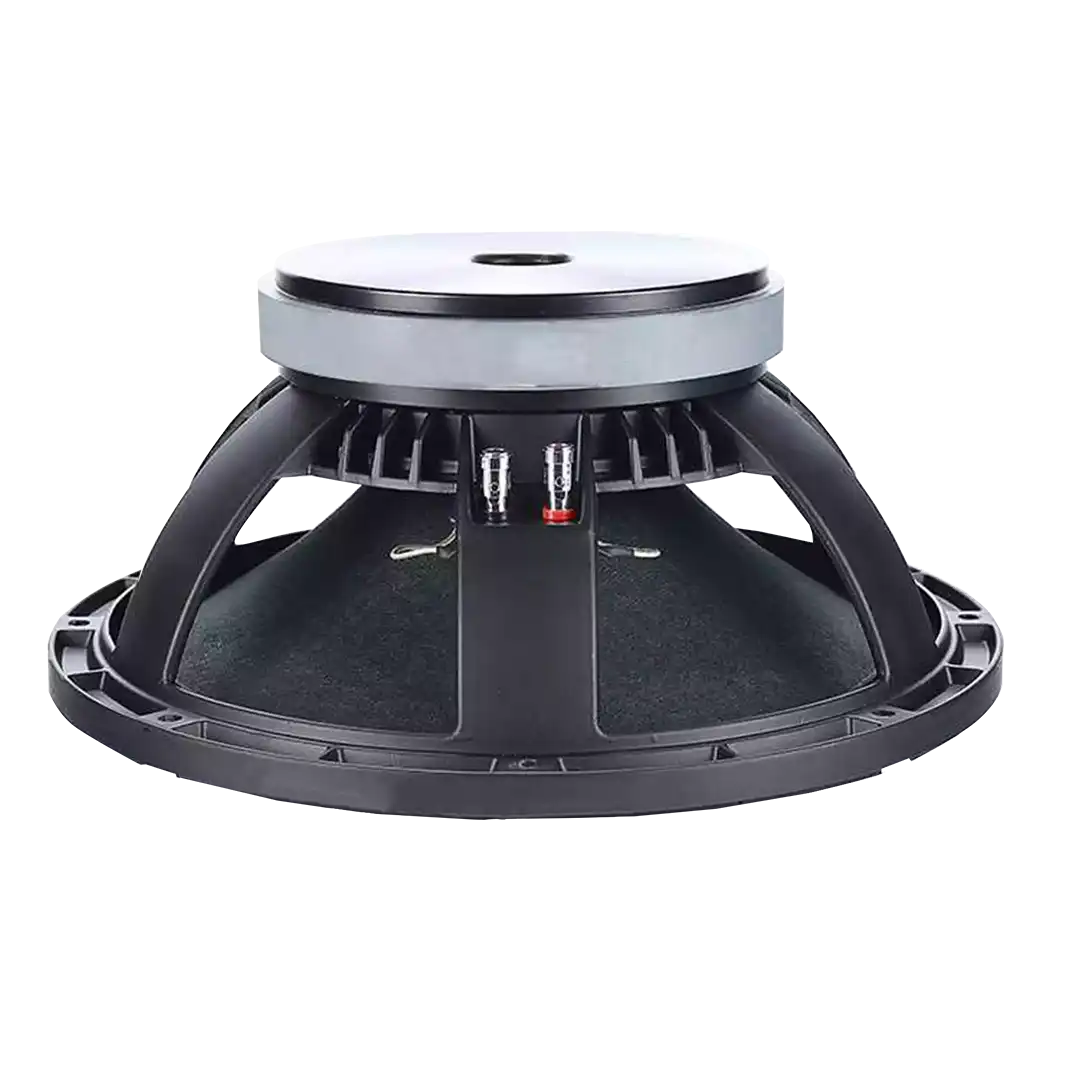

Introduce：12 inch Loudspeaker
1- Model: HPLX 12
2- Rate Impedance: 8Ω
3- Power Handling: 300 W
4- Voice Coil Diameter: 73mm / 3 inch
5- Magnet:Φ190mm Ferrite Ring
| General Specifications | ||
| Nominal Diameter | 300mm/12 inch | |
| Nominal Impedance | 8Ω | |
| AES Power Handing | 300W | |
| Continuous Program Power | 600W | |
| Sensitivity 1W/1M | 94.3dB | |
| Frequency Range | 46~3.0KHz | |
| Voice Coil Diameter | 75mm/3 inch | |
| Windinig Material | Copper | |
| Former Material | Kapton | |
| Winding Depth | 15.5mm | |
| Magnetic Gap Depth | 8mm | |
| surround material | Polycotton | |
| surround Design | M-roll | |
| Magnet | Φ190 | Ferrite Ring |
| Thiele & Small Parameters | ||
| Resonance Frequency | Fs | 46Hz |
| DC Resistance | Re | 5.2Ω |
| Mechanical Factor | Qms | 15.20 |
| Electrical Factor | Qes | 0.38 |
| Total Factor | Qts | 0.37 |
| BL Factor | BL | 16.2T.m |
| Effective Moving Mass | Mms | 66gr |
| Compliance | Cms | 179μ M/N |
| Equivalent Cas Air Load | Vas | 71dm3 |
| Effettive Piston Area | Sd | 530cm2 |
| η(Eta Zero) | η0 | 1.80% |
| Mountiong & Shipping Information | ||
| Overall Diameter | 306mm | |
| Bolt circle diameter | 295mm | |
| Baffle Cutout Diameter | 272mm | |
| Depth | 145mm | |
| Net Weight | 6.5kg | |
| Shipping Weight | 6.8kg | |
| Shipping Box(Single) | 32.5x32.5x17cm | |
