BIRITEQ BT-626A ŠUKO
Garantiramo najnižu cijenu na tržištu!
U slučaju da pronađete isti proizvod po povoljnijoj cijeni,
molimo Vas da nas kontaktirate na:
info@player.hr

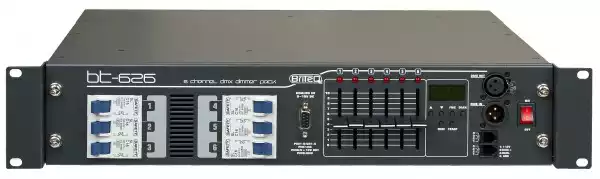

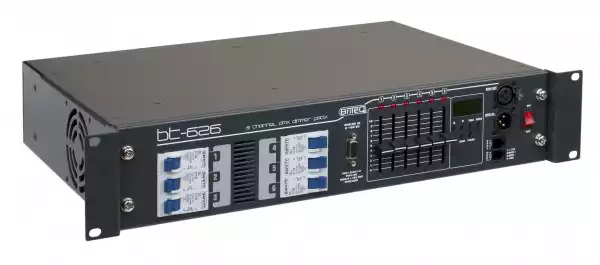

Professional 6 channel Dimmer / Switch pack for 19" rack mounting
Max load 16A (3680W) per channel with automatic 16A circuit breakers
Suitable for both inductive and resistive loads
Can be used to dim incandescent lamps, halogen lamps, low volt halogen lamps with ballast and dimmable LED-lamps (load must be >100W).

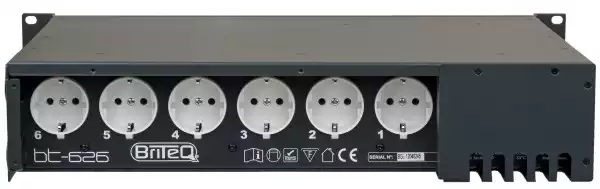

Outputs equipped with German mains sockets (see barcode sticker)
DMX (3p-XLR + RJ11) and analog 0/10V (dB9) inputs
Block or individual channel addressing (soft patch)
- Switch/dimmer mode can be set individually for all channels
- Control faders 0-100% for all channels (no external controller needed)
- Preheat control to extend lamp life: 0-6%
- Automatic phase/frequency tracking (45Hz to 63Hz) for improved dimming under difficult conditions.
- LED display for monitoring of all functions, including internal temperature.
- Mains input (200 ~ 240Vac):
- 3-phase/4wire: total max. load = 22kW
- Single phase/2wire: total max. load = 9,6kW
- Intelligent thermo protection with automatic fan control.
- Dimensions: 483x88x312mm (19"/2U)
- Weight: 8kg
Technical Information
- Power Input: AC 200-240V, 45-63Hz auto tracking
- Max. input load: 3-phase/4wire: total max. load = 22kW
Single phase/2wire: total max. load = 9,6kW - Max. output load/channel: 16A or 3600W for use in theatre, stage, …
12A or 2700W for non-stop 24/7 use in hotels, restaurants, buildings, … - DMX in/output: 3pin-XLR or RJ11-6p4c (DMX-512 / 1990 protocol)
- Switch mode DMX values: switch-on value = 127
switch-off value = 50 - Analog input: DC 0-10V on D-type db-9 connector
- Pin1~6 à Channels1~6
- Pin7 à not connected
- Pin8 à +12Vdc
- Pin9 à GND
- Max. ambient temperature:
- Fan activation temp: 45°C

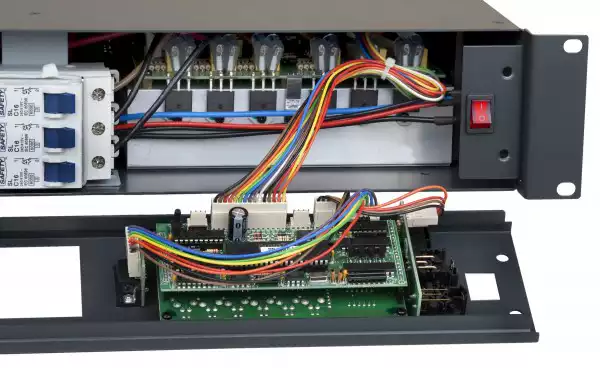

- TRIAC type: BTA41-600 (40A / 600V)
TOP3-housing insulated. - Humidity: 40% ~ 80%
- Size: 482(W) x 88(H) x 300(D)mm (19" / 2U)
- Weight: 8kg
