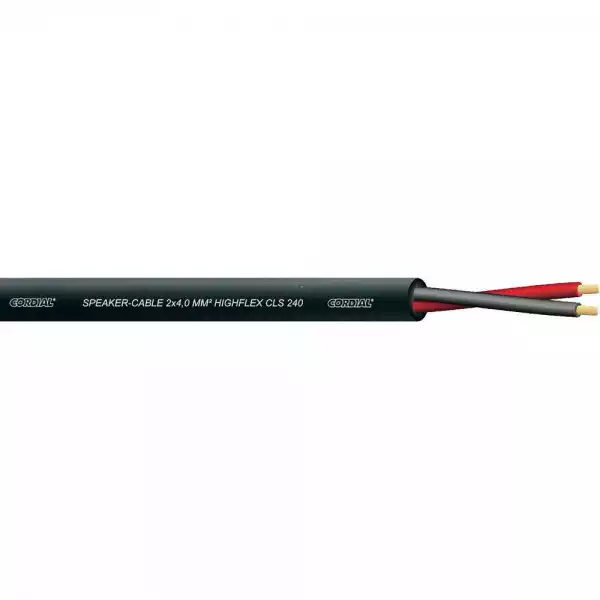

CORDIAL CLS 240 BLACK
Šifra: 1221
3,45 EUR
*Cijena sa popustom može se ostvariti ukoliko se plaća gotovinom, virmanom (preko računa) ili debitnom i kreditnom karticom odmah i odjednom.
Prikazana cijena je za metar.
Prikazana cijena je za metar.
Garantiramo najnižu cijenu na tržištu!
U slučaju da pronađete isti proizvod po povoljnijoj cijeni,
molimo Vas da nas kontaktirate na:
info@player.hr
Conductor area 4,0 mm²
Composition of conductor 225 x 0,15 mm Cu blank / bare copper
Conductor isolation PVC
Composition of cores 2 verdrillte Adern / 2 twisted cores
Pair screen / screen kein Schirm / no screen
Overall jacket PVC black
Overall diameter 9,5 ± 0,3 mm
Weight 160 g / m
Working temperatur
mobile (-5 °C) - (+70 °C)
fixed (-20 °C) - (+70 °C)
min. Bending radius
mobile 10 x Gesamtdurchmesser / overall diameter = ~ 98 mm
fixed 5 x Gesamtdurchmesser / overall diameter = ~ 49 mm
thermal load 0,45 kWh / m (~1,6 MJ / m)
Composition of conductor 225 x 0,15 mm Cu blank / bare copper
Conductor isolation PVC
Composition of cores 2 verdrillte Adern / 2 twisted cores
Pair screen / screen kein Schirm / no screen
Overall jacket PVC black
Overall diameter 9,5 ± 0,3 mm
Weight 160 g / m
Working temperatur
mobile (-5 °C) - (+70 °C)
fixed (-20 °C) - (+70 °C)
min. Bending radius
mobile 10 x Gesamtdurchmesser / overall diameter = ~ 98 mm
fixed 5 x Gesamtdurchmesser / overall diameter = ~ 49 mm
thermal load 0,45 kWh / m (~1,6 MJ / m)
Mechanical data
| Conductor area | 4,0 mm² |
| Composition of conductor | 225 x 0,15 mm Cu blank / bare copper |
| Conductor isolation | PVC |
| Composition of cores | 2 verdrillte Adern / 2 twisted cores |
| Pair screen / screen | kein Schirm / no screen |
| Overall jacket | PVC black |
| Overall diameter | 9,5 ± 0,3 mm |
| Weight | 160 g / m |
| Working temperatur | |
| mobile | (-5 °C) - (+70 °C) |
| fixed | (-20 °C) - (+70 °C) |
| min. Bending radius | |
| mobile | 10 x Gesamtdurchmesser / overall diameter = ~ 98 mm |
| fixed | 5 x Gesamtdurchmesser / overall diameter = ~ 49 mm |
| thermal load | 0,45 kWh / m (~1,6 MJ / m) |
Electrical data
| Conductor resistance | 4,95 Ω / km |
| Capacity (cond./cond.) | |
| Capacity (cond./screen) | |
| Test voltage | 2000 V eff. |
