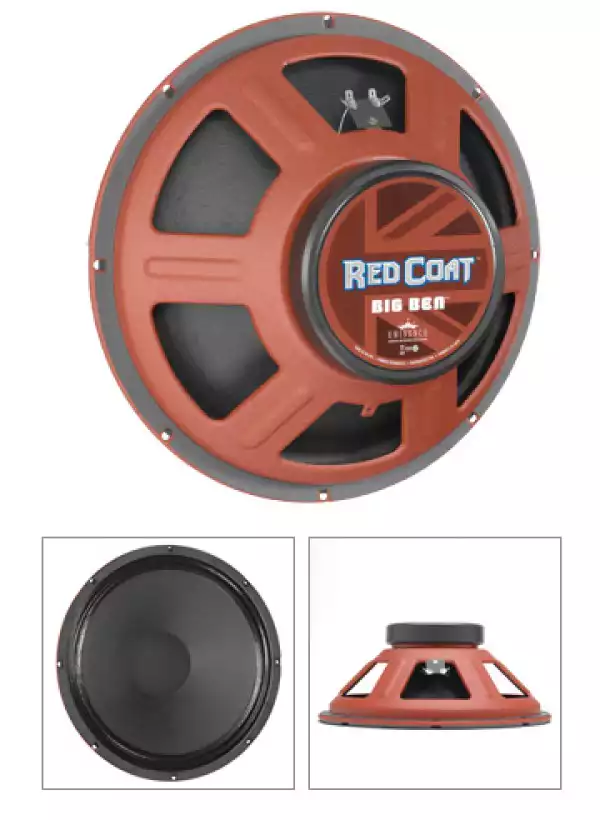

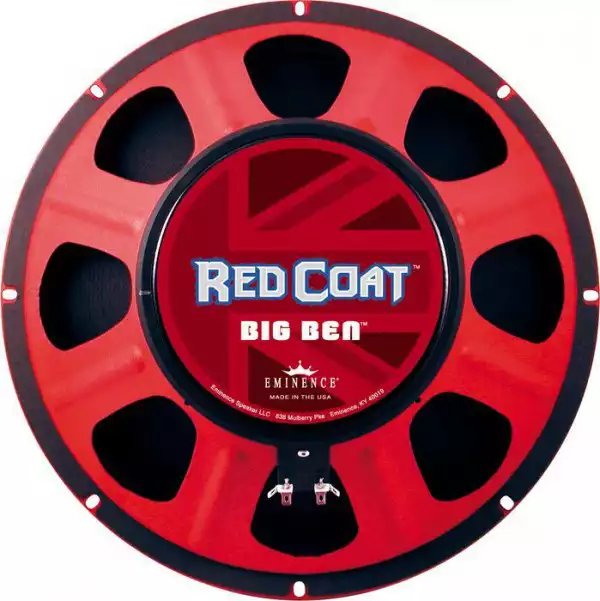

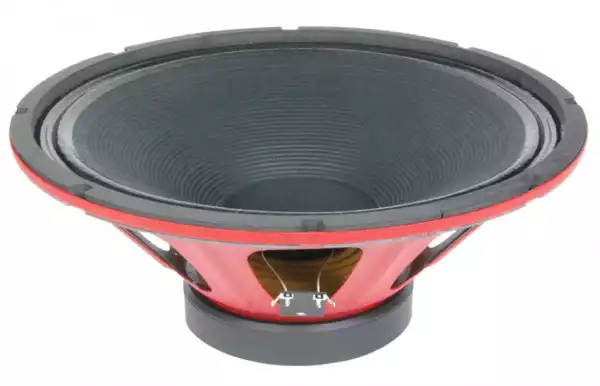

EMINENCE BIG BEN
Šifra: 6252
177,05 EUR
*Cijena sa popustom može se ostvariti ukoliko se plaća gotovinom, virmanom (preko računa) ili debitnom i kreditnom karticom odmah i odjednom.
Prikazana cijena je za komad.
Garantiramo najnižu cijenu na tržištu!
U slučaju da pronađete isti proizvod po povoljnijoj cijeni,
molimo Vas da nas kontaktirate na:
info@player.hr
SPECIFICATION
Nominal Basket Diameter
15", 381mm
Nominal Impedence*
8 ohms
Power Rating**
Watts
225W
Music Program
N/A
Resonance
85Hz
Usable Frequency Range
70Hz - 3.5kHz
Sensitivity***
101.5dB
Magnet Weight
56 oz.
Gap Height
70Hz - 3.5kHz
Voice Coil Diameter
0.37", 9.53mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs)
85Hz
DC Resistance (Re)
6.06
Coil Inductance (Le)
0.51mH
Mechanical Q (Qms)
10.63
Electromagnetic Q (Qes)
1.04
Total Q (Qts)
0.94
Compliance Equivalent Volume (Vas)
77.7 liters / 2.74 cu.ft.
Peak Diaphragm Displacement Volume (Vd)
0cc
Mechanical Compliance of Suspension (Cms)
0.08mm/N
BL Product (BL)
12.1 T-M
Diaphragm Mass Inc. Airload (MMs)
47 grams
Efficiency Bandwidth Product (EBP)
82
Maximum Linear Excursion (Xmax)
0mm
Surface Area of Cone (Sd)
856.3 cm2
Maximum Mechanical Limit (Xlim)
N/A
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed
N/a
Vented
Acceptable
Driver Volume Displaced
220.8 cu.in. / 3.62 liters
Overall Diameter
15.13", 384.2mm
Baffle Hole Diameter
13.8", 350.5mm
Front Sealing Gasket
Fitted as standard
Rear Sealing Gasket
Fitted as standard
Mounting Holes Diameter
0.25", 6.4mm
Mounting Holes B.C.D.
14.56", 369.9mm
Depth
6.1", 155mm
Net Weight
12.6 lbs, 5.7 kg
Shipping Weight
14.9 lbs, 6.8 kgs
MATERIALS OF CONSTRUCTION
Coil Construction
Copper voice coil
Coil Former
Polyimide former
Magnet Composition
Ferrite magnet
Core Details
Non-vented core
Basket Materials
Pressed steel basket
Cone Composition
Paper Cone
Cone Edge Composition
Paper cone edge
Dust Cap Composition
Zurette dust cap
Nominal Basket Diameter
15", 381mm
Nominal Impedence*
8 ohms
Power Rating**
Watts
225W
Music Program
N/A
Resonance
85Hz
Usable Frequency Range
70Hz - 3.5kHz
Sensitivity***
101.5dB
Magnet Weight
56 oz.
Gap Height
70Hz - 3.5kHz
Voice Coil Diameter
0.37", 9.53mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs)
85Hz
DC Resistance (Re)
6.06
Coil Inductance (Le)
0.51mH
Mechanical Q (Qms)
10.63
Electromagnetic Q (Qes)
1.04
Total Q (Qts)
0.94
Compliance Equivalent Volume (Vas)
77.7 liters / 2.74 cu.ft.
Peak Diaphragm Displacement Volume (Vd)
0cc
Mechanical Compliance of Suspension (Cms)
0.08mm/N
BL Product (BL)
12.1 T-M
Diaphragm Mass Inc. Airload (MMs)
47 grams
Efficiency Bandwidth Product (EBP)
82
Maximum Linear Excursion (Xmax)
0mm
Surface Area of Cone (Sd)
856.3 cm2
Maximum Mechanical Limit (Xlim)
N/A
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed
N/a
Vented
Acceptable
Driver Volume Displaced
220.8 cu.in. / 3.62 liters
Overall Diameter
15.13", 384.2mm
Baffle Hole Diameter
13.8", 350.5mm
Front Sealing Gasket
Fitted as standard
Rear Sealing Gasket
Fitted as standard
Mounting Holes Diameter
0.25", 6.4mm
Mounting Holes B.C.D.
14.56", 369.9mm
Depth
6.1", 155mm
Net Weight
12.6 lbs, 5.7 kg
Shipping Weight
14.9 lbs, 6.8 kgs
MATERIALS OF CONSTRUCTION
Coil Construction
Copper voice coil
Coil Former
Polyimide former
Magnet Composition
Ferrite magnet
Core Details
Non-vented core
Basket Materials
Pressed steel basket
Cone Composition
Paper Cone
Cone Edge Composition
Paper cone edge
Dust Cap Composition
Zurette dust cap
| SPECIFICATION | |
| Nominal Basket Diameter | 15", 381mm |
| Nominal Impedence* | 8 ohms |
| Power Rating** | |
| Watts | 225W |
| Music Program | N/A |
| Resonance | 85Hz |
| Usable Frequency Range | 70Hz - 3.5kHz |
| Sensitivity*** | 101.5dB |
| Magnet Weight | 56 oz. |
| Gap Height | 70Hz - 3.5kHz |
| Voice Coil Diameter | 0.37", 9.53mm |
|
THIELE & SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 85Hz |
| DC Resistance (Re) | 6.06 |
| Coil Inductance (Le) | 0.51mH |
| Mechanical Q (Qms) | 10.63 |
| Electromagnetic Q (Qes) | 1.04 |
| Total Q (Qts) | 0.94 |
| Compliance Equivalent Volume (Vas) | 77.7 liters / 2.74 cu.ft. |
| Peak Diaphragm Displacement Volume (Vd) | 0cc |
| Mechanical Compliance of Suspension (Cms) | 0.08mm/N |
| BL Product (BL) | 12.1 T-M |
| Diaphragm Mass Inc. Airload (MMs) | 47 grams |
| Efficiency Bandwidth Product (EBP) | 82 |
| Maximum Linear Excursion (Xmax) | 0mm |
| Surface Area of Cone (Sd) | 856.3 cm2 |
| Maximum Mechanical Limit (Xlim) | N/A |
|
MOUNTING INFORMATION |
|
| Recommended Enclosure Volume | |
| Sealed | N/a |
| Vented | Acceptable |
| Driver Volume Displaced | 220.8 cu.in. / 3.62 liters |
| Overall Diameter | 15.13", 384.2mm |
| Baffle Hole Diameter | 13.8", 350.5mm |
| Front Sealing Gasket | Fitted as standard |
| Rear Sealing Gasket | Fitted as standard |
| Mounting Holes Diameter | 0.25", 6.4mm |
| Mounting Holes B.C.D. | 14.56", 369.9mm |
| Depth | 6.1", 155mm |
| Net Weight | 12.6 lbs, 5.7 kg |
| Shipping Weight | 14.9 lbs, 6.8 kgs |
|
MATERIALS OF CONSTRUCTION |
|
| Coil Construction | Copper voice coil |
| Coil Former | Polyimide former |
| Magnet Composition | Ferrite magnet |
| Core Details | Non-vented core |
| Basket Materials | Pressed steel basket |
| Cone Composition | Paper Cone |
| Cone Edge Composition | Paper cone edge |
| Dust Cap Composition | Zurette dust cap |
