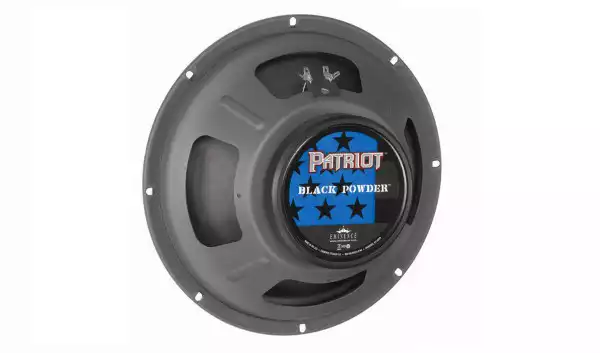

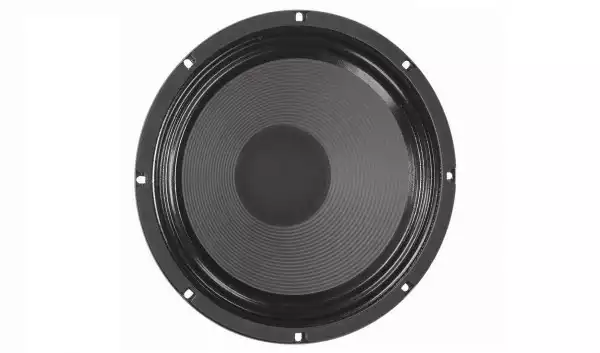

Genuine Eminence









12" GUITAR SPEAKER





THE BLACK POWDER IS AN EMINENCE 12" GUITAR SPEAKER HAS VERY BRIGHT PERCUSSIVE SOUND
FROM THE EMINENCE PATRIOT SERIES GUITAR SPEAKERS LINEUP
TIGHT BASS WITH EXPLOSIVE MIDS & HIGHS

WELL SUITED FOR APPLICATIONS IN OPEN BACK CABINETS

AVAILABLE IN 8 OHMS ONLY








THIS 12" GUITAR SPEAKER HAS A BRIGHT 'IN YOUR FACE' SOUND!















SPEAKER MODEL
BLACK POWDER



SPECIFICATIONS




Nominal Basket Diameter


12" / 305mm




Impedance


8 ohms



RMS Power Rating
75 Watts


Peak Power Rating
150 Watts


Usable Frequency Response
70Hz - 5kHz



Voice Coil Diameter


1.5" / 38.1mm




Sensitivity (1W/1m)


100dB




Magnet Weight


30 oz.



Shipping Weight
9.0lbs. / 4.09kg.



MOUNTING INFORMATION



Overall Diameter
12.23" / 310.5mm


Bolt Circle Diameter
11.67" / 296.4mm


Baffle Cutout Diameter
11.02" / 279.8mm


No. Of Mounting Holes
8


Mounting Hole Diameter
0.25" / 6.4mm


Overall Depth
4.6" / 116.8mm



MATERIALS



Basket
Stamped Steel


Voice Coil
Copper


Coil Former Material
Kapton


Dust Cap
Zurette


Cone
Paper


Surround
Paper


Magnet
Ferrite



THIELE-SMALL PARAMETERS



Resonant Frequency (fs)
72 Hz


Impedance (Re)
7.1 ohms


Coil Inductance (Le)
0.37mH


Electromagnetic Q (Qes)
.75


Mechanical Q (Qms)
14.98


Total Q (Qts)
.72


Compliance Equiv. Vol. (Vas)
82.4Liters / 2.9 cu. ft.


BL Product (BL)
9.9 T-M


Voice Coil Overhang (Xmax)
0.5mm


Surface Area of Cone (Sd)
.05195m2
