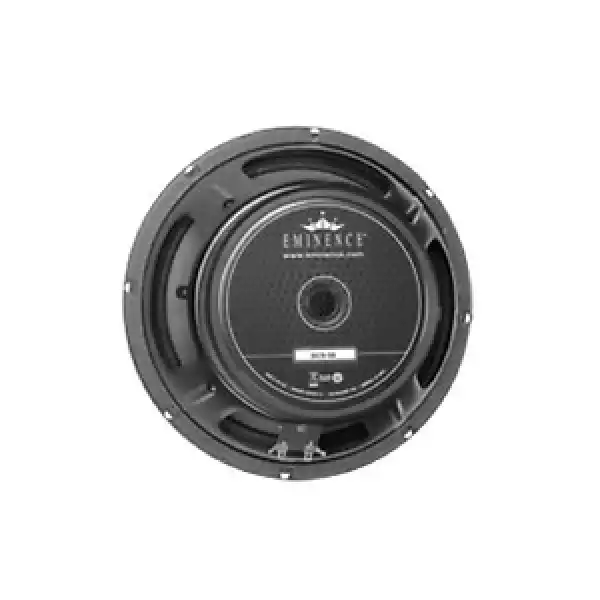

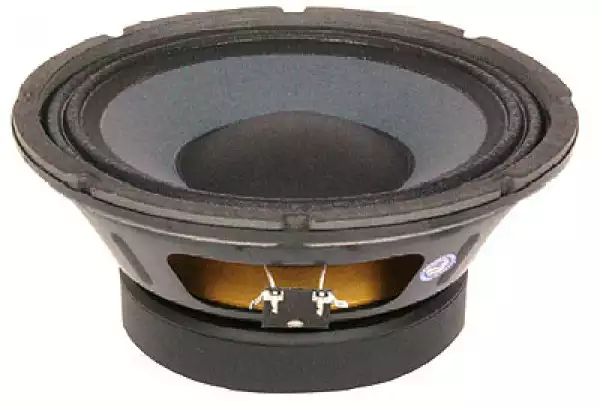

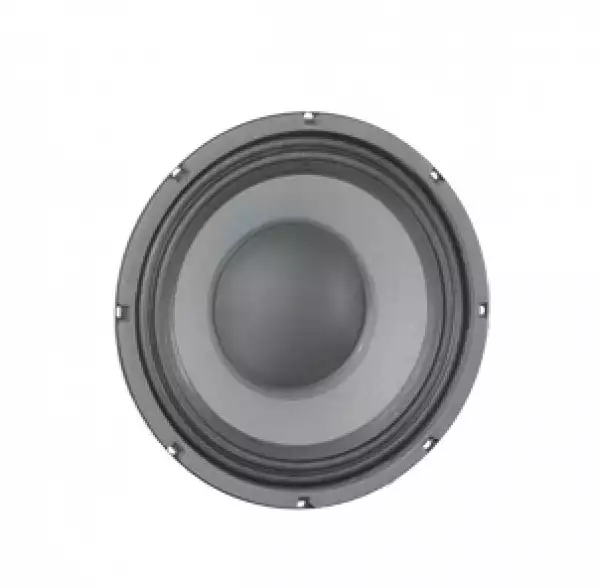

Eminence DELTA 10A
Recommended for professional audio and bass guitar applications as a woofer/mid-bass or midrange in vented monitors, satellites and multi-way enclosures.
Recommended for professional audio and bass guitar applications as a woofer/mid-bass or midrange in vented monitors, satellites and multi-way enclosures.
Eminence DELTA 10A
Recommended for professional audio and bass guitar applications as a woofer/mid-bass or midrange in vented monitors, satellites and multi-way enclosures.
|
|
|
| Nominal Basket Diameter | 10", 254mm |
| Nominal Impedance* | 8 ohms |
| Power Rating** | |
| Watts | 350W |
| Music Program | 700W |
| Resonance | 66Hz |
| Usable Frequency Range | 63Hz - 3.7kHz |
| Sensitivity*** | 98.8dB |
| Magnet Weight | 56 oz. |
| Gap Height | 0.37", 9.53mm |
| Voice Coil Diameter | 2.5", 63.5mm |
| Thiele & Small Parameters | |
| Resonant Frequency (fs) | 66Hz |
| DC Resistance (Re) | 5.42 |
| Coil Inductance (Le) | 0.74mH |
| Mechanical Q (Qms) | 6.53 |
| Electromagnetic Q (Qes) | 0.35 |
| Total Q (Qts) | 0.33 |
| Compliance Equivalent Volume (Vas) | 30.5 liters / 1.1 cu.ft. |
| Peak Diaphragm Displacement Volume (Vd) | 121cc |
| Mechanical Compliance of Suspension (Cms) | 0.18mm/N |
| BL Product (BL) | 14.4 T-M |
| Diaphragm Mass Inc. Airload (MMs) | 32 grams |
| Efficiency Bandwidth Product (EBP) | 189 |
| Maximum Linear Excursion (Xmax) | 3.5mm |
| Surface Area of Cone (Sd) | 344.9 cm2 |
| Maximum Mechanical Limit (Xlim) | 9.4mm |
| Mounting Information | |
| Recommended Enclosure Volume | |
| Sealed | N/a |
| Vented | 12.7-37.9 liters / 0.45-1.34 cu.ft. |
| Driver Volume Displaced | 86.5 cu.in. / 1.42 liters |
| Overall Diameter | 10.09", 256.2mm |
| Baffle Hole Diameter | 9.18", 233.17mm |
| Front Sealing Gasket | Fitted as standard |
| Rear Sealing Gasket | Fitted as standard |
| Mounting Holes Diameter | 0.25", 6.4mm |
| Mounting Holes B.C.D. | 9.66", 245.4mm |
| Depth | 4.25", 108mm |
| Net Weight | 10.8 lbs, 4.9 kg |
| Shipping Weight | 12 lbs, 5.4 kgs |
| Materials of Construction | |
| Coil Construction | Aluminum voice coil |
| Coil Former | Polyimide former |
| Magnet Composition | Ferrite magnet |
| Core Details | Vented core |
| Basket Materials | Pressed steel basket |
| Cone Composition | Paper cone |
| Cone Edge Composition | Cloth cone edge |
| Dust Cap Composition | Solid composition paper dust cap |
