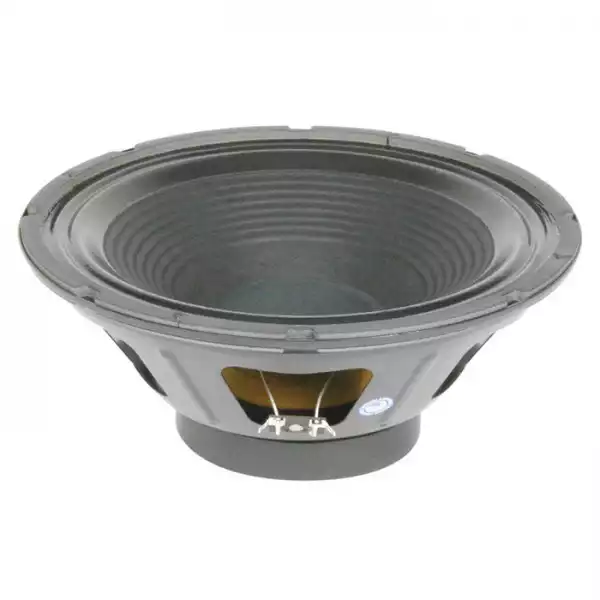

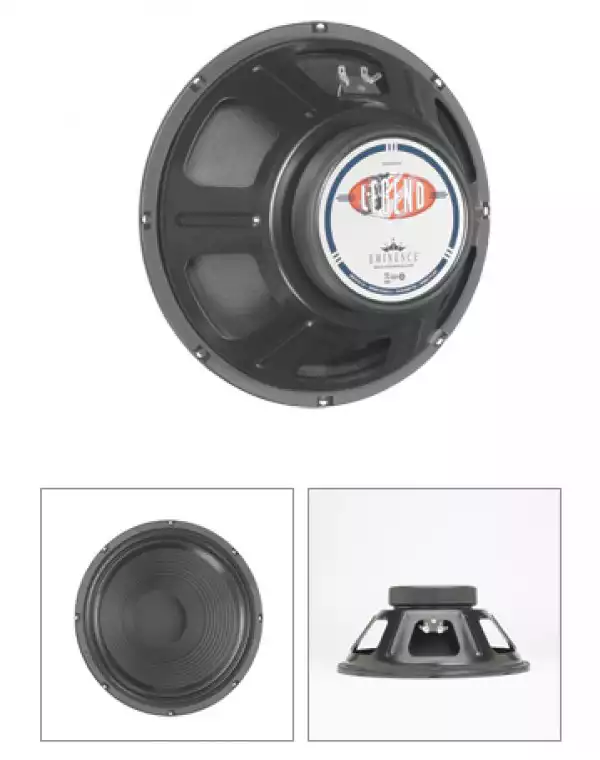

EMINENCE Guitar Legend 121 8 Ohm
Šifra: 6250
125,95 EUR
*Cijena sa popustom može se ostvariti ukoliko se plaća gotovinom, virmanom (preko računa) ili debitnom i kreditnom karticom odmah i odjednom.
Prikazana cijena je za komad.
Garantiramo najnižu cijenu na tržištu!
U slučaju da pronađete isti proizvod po povoljnijoj cijeni,
molimo Vas da nas kontaktirate na:
info@player.hr
SPECIFICATION
Nominal Basket Diameter
12", 304.8mm
Nominal Impedence*
8 ohms
Power Rating**
Watts
150W
Music Program
N/A
Resonance
100Hz

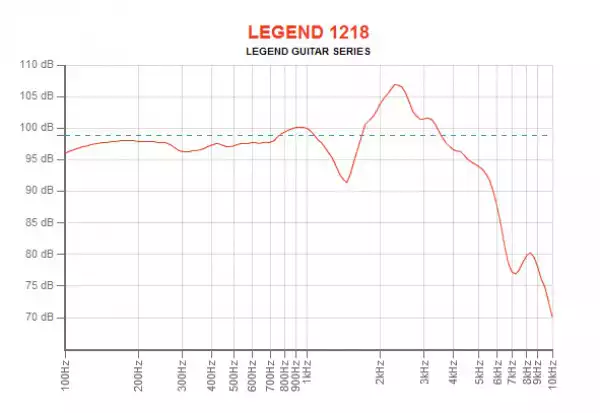

Usable Frequency Range
80Hz - 4.2kHz
Sensitivity***
98.8dB
Magnet Weight
38 oz.
Gap Height
80Hz - 4.2kHz
Voice Coil Diameter
0.31", 7.92mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs)
100Hz
DC Resistance (Re)
6.95
Coil Inductance (Le)
0.69mH
Mechanical Q (Qms)
15.51
Electromagnetic Q (Qes)
0.95
Total Q (Qts)
0.89
Compliance Equivalent Volume (Vas)
31.2 liters / 1.1 cu.ft.
Peak Diaphragm Displacement Volume (Vd)
41cc
Mechanical Compliance of Suspension (Cms)
0.09mm/N
BL Product (BL)
11.6 T-M
Diaphragm Mass Inc. Airload (MMs)
29 grams
Efficiency Bandwidth Product (EBP)
105
Maximum Linear Excursion (Xmax)
0.8mm
Surface Area of Cone (Sd)
506.7 cm2
Maximum Mechanical Limit (Xlim)
N/A
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed
N/a
Vented
Acceptable
Driver Volume Displaced
122 cu.in. / 2 liters
Overall Diameter
12.03", 305.5mm
Baffle Hole Diameter
10.95", 278.1mm
Front Sealing Gasket
Fitted as standard
Rear Sealing Gasket
Fitted as standard
Mounting Holes Diameter
0.25", 6.4mm
Mounting Holes B.C.D.
11.59", 294.3mm
Depth
4.5", 114mm
Net Weight
8.4 lbs, 3.8 kg
Shipping Weight
10.6 lbs, 4.8 kgs
MATERIALS OF CONSTRUCTION
Coil Construction
Copper voice coil
Coil Former
Polyimide former
Magnet Composition
Ferrite magnet
Core Details
Non-vented core
Basket Materials
Pressed steel basket
Cone Composition
Paper Cone
Cone Edge Composition
Paper cone edge
Dust Cap Composition
Zurette dust cap
Nominal Basket Diameter
12", 304.8mm
Nominal Impedence*
8 ohms
Power Rating**
Watts
150W
Music Program
N/A
Resonance
100Hz
Usable Frequency Range
80Hz - 4.2kHz
Sensitivity***
98.8dB
Magnet Weight
38 oz.
Gap Height
80Hz - 4.2kHz
Voice Coil Diameter
0.31", 7.92mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs)
100Hz
DC Resistance (Re)
6.95
Coil Inductance (Le)
0.69mH
Mechanical Q (Qms)
15.51
Electromagnetic Q (Qes)
0.95
Total Q (Qts)
0.89
Compliance Equivalent Volume (Vas)
31.2 liters / 1.1 cu.ft.
Peak Diaphragm Displacement Volume (Vd)
41cc
Mechanical Compliance of Suspension (Cms)
0.09mm/N
BL Product (BL)
11.6 T-M
Diaphragm Mass Inc. Airload (MMs)
29 grams
Efficiency Bandwidth Product (EBP)
105
Maximum Linear Excursion (Xmax)
0.8mm
Surface Area of Cone (Sd)
506.7 cm2
Maximum Mechanical Limit (Xlim)
N/A
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed
N/a
Vented
Acceptable
Driver Volume Displaced
122 cu.in. / 2 liters
Overall Diameter
12.03", 305.5mm
Baffle Hole Diameter
10.95", 278.1mm
Front Sealing Gasket
Fitted as standard
Rear Sealing Gasket
Fitted as standard
Mounting Holes Diameter
0.25", 6.4mm
Mounting Holes B.C.D.
11.59", 294.3mm
Depth
4.5", 114mm
Net Weight
8.4 lbs, 3.8 kg
Shipping Weight
10.6 lbs, 4.8 kgs
MATERIALS OF CONSTRUCTION
Coil Construction
Copper voice coil
Coil Former
Polyimide former
Magnet Composition
Ferrite magnet
Core Details
Non-vented core
Basket Materials
Pressed steel basket
Cone Composition
Paper Cone
Cone Edge Composition
Paper cone edge
Dust Cap Composition
Zurette dust cap
| SPECIFICATION | |
| Nominal Basket Diameter | 12", 304.8mm |
| Nominal Impedence* | 8 ohms |
| Power Rating** | |
| Watts | 150W |
| Music Program | N/A |
| Resonance | 100Hz |
| Usable Frequency Range | 80Hz - 4.2kHz |
| Sensitivity*** | 98.8dB |
| Magnet Weight | 38 oz. |
| Gap Height | 80Hz - 4.2kHz |
| Voice Coil Diameter | 0.31", 7.92mm |
|
THIELE & SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 100Hz |
| DC Resistance (Re) | 6.95 |
| Coil Inductance (Le) | 0.69mH |
| Mechanical Q (Qms) | 15.51 |
| Electromagnetic Q (Qes) | 0.95 |
| Total Q (Qts) | 0.89 |
| Compliance Equivalent Volume (Vas) | 31.2 liters / 1.1 cu.ft. |
| Peak Diaphragm Displacement Volume (Vd) | 41cc |
| Mechanical Compliance of Suspension (Cms) | 0.09mm/N |
| BL Product (BL) | 11.6 T-M |
| Diaphragm Mass Inc. Airload (MMs) | 29 grams |
| Efficiency Bandwidth Product (EBP) | 105 |
| Maximum Linear Excursion (Xmax) | 0.8mm |
| Surface Area of Cone (Sd) | 506.7 cm2 |
| Maximum Mechanical Limit (Xlim) | N/A |
|
MOUNTING INFORMATION |
|
| Recommended Enclosure Volume | |
| Sealed | N/a |
| Vented | Acceptable |
| Driver Volume Displaced | 122 cu.in. / 2 liters |
| Overall Diameter | 12.03", 305.5mm |
| Baffle Hole Diameter | 10.95", 278.1mm |
| Front Sealing Gasket | Fitted as standard |
| Rear Sealing Gasket | Fitted as standard |
| Mounting Holes Diameter | 0.25", 6.4mm |
| Mounting Holes B.C.D. | 11.59", 294.3mm |
| Depth | 4.5", 114mm |
| Net Weight | 8.4 lbs, 3.8 kg |
| Shipping Weight | 10.6 lbs, 4.8 kgs |
|
MATERIALS OF CONSTRUCTION |
|
| Coil Construction | Copper voice coil |
| Coil Former | Polyimide former |
| Magnet Composition | Ferrite magnet |
| Core Details | Non-vented core |
| Basket Materials | Pressed steel basket |
| Cone Composition | Paper Cone |
| Cone Edge Composition | Paper cone edge |
| Dust Cap Composition | Zurette dust cap |
