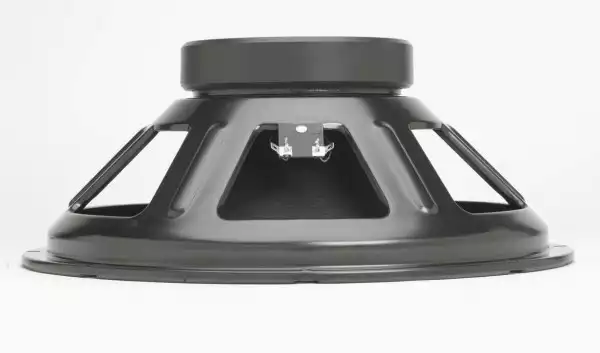

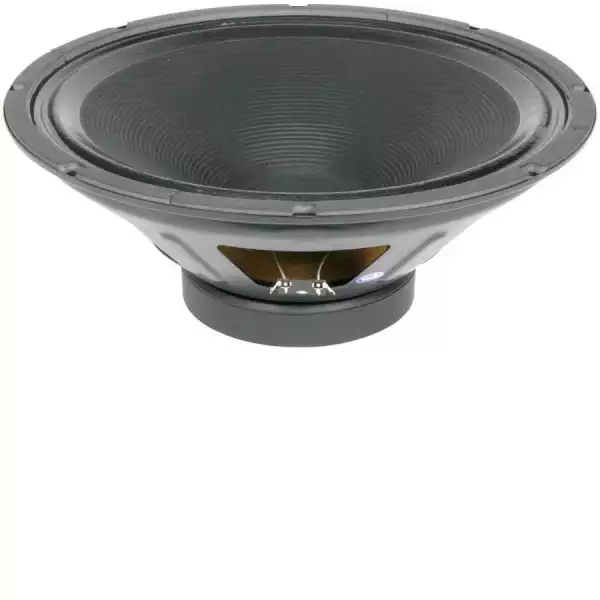

EMINENCE Legend 1518
Garantiramo najnižu cijenu na tržištu!
U slučaju da pronađete isti proizvod po povoljnijoj cijeni,
molimo Vas da nas kontaktirate na:
info@player.hr
15" Guitar Speaker, 8 Ohm, 150 WattSpecifications:
Impedance: 8 Ohms
Power Rating: 150Wrms
Voice Coil Diameter: 2", 50.8mm
Coil Material: Copper
Flat/Round Coil Wire: Round
Coil Former Material: Polyimide
Basket Type: Stamped Steel
Cone Surround Material: Paper
Dust Cap Material: Zurette
Magnet Weight: 59oz.
Usable ] cssheader=[boxoverheader] cssbody=[boxoverbody]">Bandwidth (Fs to -3dB): 80Hz - 5kHz
SPL: 99dB
Mounting Information:
Nominal Basket Diameter: 15.15", 384.8mm
Baffle Hole Diameter: 13.77", 349.6mm
Mounting Holes Diameter: 0.25", 6.4mm
Mounting Holes B.C.D.: 14.56", 369.9mm
Depth: 6.1", 154mm
Shipping Weight: 14.3 lbs., 6.5 kg.
Thiele-Small Parameters:
Resonant Frequency (fs): 82Hz
Impedance (Re): 7.16 Ohms
Coil Inductance (Le): 0.86mH
Electromagnetic Q (Qes): 1.02
Mechanical Q (Qms): 10.12
Total Q (Qts): 0.93
Compliance Equivalent Volume (Vas):65.4 liters2.3 cu. ft.
Peak Diaphragm Displacement Volume (Vd): 65cc
Mechanical Compliance of Suspension (Cms): 0.07mm/N
BL Product (BL): 14.1 T-M
Diaphragm Mass inc. Airload (Mms): 55 grams
Equiv. Resistance of Mechanical Suspension Loss (RMS): 2.80N*sec/M
Efficiency ] cssheader=[boxoverheader] cssbody=[boxoverbody]">Bandwidth Product (EBP): 80
Voice Coil Overhang (Xmax): 0.8mm
Surface Area of Cone (] cssheader=[boxoverheader] cssbody=[boxoverbody]">SD): 823.72cm2
Impedance at Resonance (Zmax): 78 Ohms
Excellent for use in combos, lending a tremendous raw bottom end and reproducing those tight slapping mids. This is one of Greg Martin's* favorites! Greg tried the Legend 151 in a Vibroverb. This speaker and a Strat are very clean and smooth. Often a clean speaker lacks bottom end, but this Legend provides some serious 'meat'. A Strat and a Legend 151 are perfect for the player wanting a 'BB King Blues' tone. With the Les Paul, it is still a real clean Sound, but the top end is mellow and singing. If you crank it up, you'll have no problem getting the speaker to break up. Greg recommends this speaker for a 'Delta Blues' Sound. Greg cranked out tones reminiscent of John Lee Hooker, Jimmy Vaughn, Ronnie Earl, Keith Richards, and Chuck Berry. This is one of the most 'legendary' 15" guitar speakers in the industry!This speaker is particularly well suited for applications in Fender amplifiers. Put it in a Pro Reverb andyou've got yourself a Vibroverb.
15" Guitar Speaker, 8 Ohm, 150 Watt
Specifications:
- Impedance: 8 Ohms
- Power Rating: 150Wrms
- Voice Coil Diameter: 2", 50.8mm
- Coil Material: Copper
- Flat/Round Coil Wire: Round
- Coil Former Material: Polyimide
- Basket Type: Stamped Steel
- Cone Surround Material: Paper
- Dust Cap Material: Zurette
- Magnet Weight: 59oz.
- Usable ] cssheader=[boxoverheader] cssbody=[boxoverbody]">Bandwidth (Fs to -3dB): 80Hz - 5kHz
- SPL: 99dB
Mounting Information:
- Nominal Basket Diameter: 15.15", 384.8mm
- Baffle Hole Diameter: 13.77", 349.6mm
- Mounting Holes Diameter: 0.25", 6.4mm
- Mounting Holes B.C.D.: 14.56", 369.9mm
- Depth: 6.1", 154mm
- Shipping Weight: 14.3 lbs., 6.5 kg.
Thiele-Small Parameters:
- Resonant Frequency (fs): 82Hz
- Impedance (Re): 7.16 Ohms
- Coil Inductance (Le): 0.86mH
- Electromagnetic Q (Qes): 1.02
- Mechanical Q (Qms): 10.12
- Total Q (Qts): 0.93
- Compliance Equivalent Volume (Vas):65.4 liters2.3 cu. ft.
- Peak Diaphragm Displacement Volume (Vd): 65cc
- Mechanical Compliance of Suspension (Cms): 0.07mm/N
- BL Product (BL): 14.1 T-M
- Diaphragm Mass inc. Airload (Mms): 55 grams
- Equiv. Resistance of Mechanical Suspension Loss (RMS): 2.80N*sec/M
- Efficiency ] cssheader=[boxoverheader] cssbody=[boxoverbody]">Bandwidth Product (EBP): 80
- Voice Coil Overhang (Xmax): 0.8mm
- Surface Area of Cone (] cssheader=[boxoverheader] cssbody=[boxoverbody]">SD): 823.72cm2
- Impedance at Resonance (Zmax): 78 Ohms
Excellent for use in combos, lending a tremendous raw bottom end and reproducing those tight slapping mids. This is one of Greg Martin's* favorites! Greg tried the Legend 151 in a Vibroverb. This speaker and a Strat are very clean and smooth. Often a clean speaker lacks bottom end, but this Legend provides some serious 'meat'. A Strat and a Legend 151 are perfect for the player wanting a 'BB King Blues' tone. With the Les Paul, it is still a real clean Sound, but the top end is mellow and singing. If you crank it up, you'll have no problem getting the speaker to break up. Greg recommends this speaker for a 'Delta Blues' Sound. Greg cranked out tones reminiscent of John Lee Hooker, Jimmy Vaughn, Ronnie Earl, Keith Richards, and Chuck Berry. This is one of the most 'legendary' 15" guitar speakers in the industry!
This speaker is particularly well suited for applications in Fender amplifiers. Put it in a Pro Reverb and
you've got yourself a Vibroverb.
