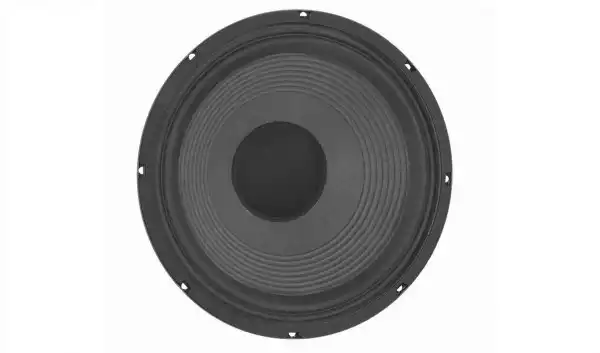

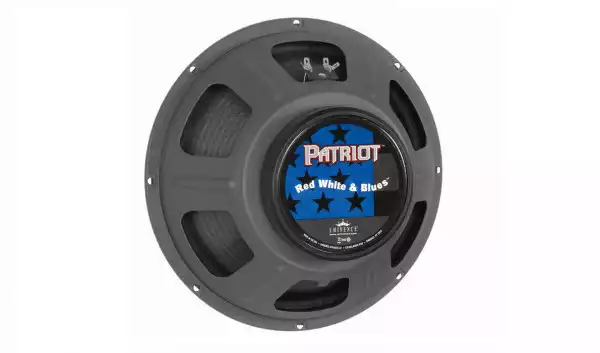

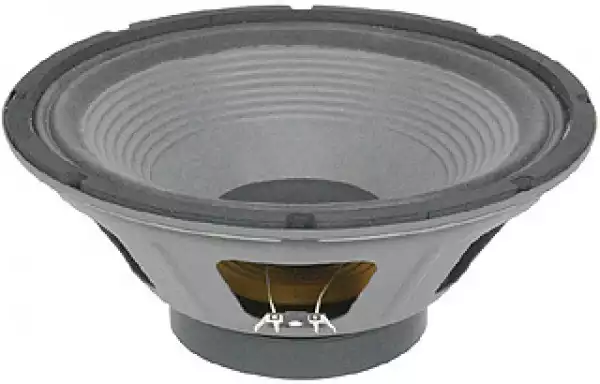

EMINENCE RED WHITE AND BLUES
The Eminence Red White and Blues guitar speaker is the natural upgrade for the classic American amp. A versatile guitar speaker, great for southern rock or blues. Nice tight low-end, smooth midrange and top end sparkle. American cousin to The Governor.
The Eminence Red White and Blues guitar speaker is the natural upgrade for the classic American amp. A versatile guitar speaker, great for southern rock or blues. Nice tight low-end, smooth midrange and top end sparkle. American cousin to The Governor.
EMINENCE RED WHITE AND BLUES
The Eminence Red White and Blues guitar speaker is the natural upgrade for the classic American amp. A versatile guitar speaker, great for southern rock or blues. Nice tight low-end, smooth midrange and top end sparkle. American cousin to The Governor.
Specification |
|
| Nominal Basket Diameter | 12", 304.8mm |
| Nominal Impedance* | 8 ohms |
| Power Rating** | |
| Watts | 120W |
| Music Program | N/A |
| Resonance | 110Hz |
| Usable Frequency Range | 80Hz - 4.3kHz |
| Sensitivity*** | 101.0dB |
| Magnet Weight | 38 oz. |
| Gap Height | 0.31", 7.92mm |
| Voice Coil Diameter | 1.75", 44.5mm |
| Thiele & Small Parameters | |
| Resonant Frequency (fs) | 110Hz |
| DC Resistance (Re) | 6.42 |
| Coil Inductance (Le) | 0.43mH |
| Mechanical Q (Qms) | 7.19 |
| Electromagnetic Q (Qes) | 0.89 |
| Total Q (Qts) | 0.79 |
| Compliance Equivalent Volume (Vas) | 30.8 liters / 1.09 cu.ft. |
| Peak Diaphragm Displacement Volume (Vd) | 44.7cc |
| Mechanical Compliance of Suspension (Cms) | 0.07mm/N |
| BL Product (BL) | 12.3 T-M |
| Diaphragm Mass Inc. Airload (MMs) | 30.1 grams |
| Efficiency Bandwidth Product (EBP) | 124 |
| Maximum Linear Excursion (Xmax) | 0.8mm |
| Surface Area of Cone (Sd) | 532.36 cm2 |
| Maximum Mechanical Limit (Xlim) | N/A |
| Mounting Information | |
| Recommended Enclosure Volume | |
| Sealed | Acceptable |
| Vented | Acceptable |
| Driver Volume Displaced | 122 cu.in. / 2 liters |
| Overall Diameter | 12.03", 305.5mm |
| Baffle Hole Diameter | 11.07", 281.1mm |
| Front Sealing Gasket | Fitted as standard |
| Rear Sealing Gasket | Fitted as standard |
| Mounting Holes Diameter | 0.25", 6.4mm |
| Mounting Holes B.C.D. | 11.59", 294.3mm |
| Depth | 5.1", 130mm |
| Net Weight | 8.2 lbs, 3.7 kg |
| Shipping Weight | 10.1 lbs, 4.6 kgs |
| Materials of Construction | |
| Coil Construction | Copper voice coil |
| Coil Former | Polyimide former |
| Magnet Composition | Ferrite magnet |
| Core Details | Non-vented core |
| Basket Materials | Pressed steel basket |
| Cone Composition | Paper cone |
| Cone Edge Composition | Paper cone edge |
| Dust Cap Composition | Zurette dust cap |
