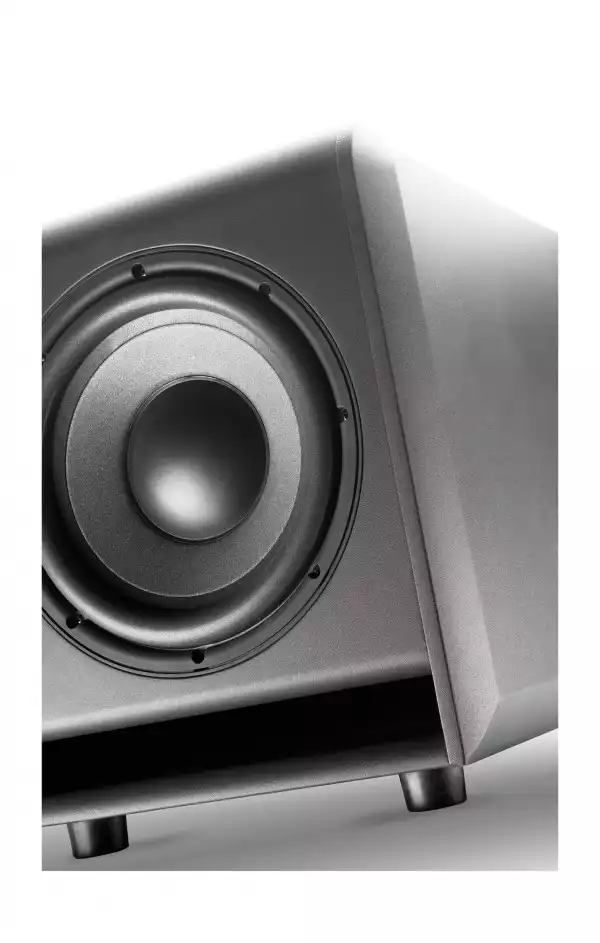

The 11" Polyglass® cone woofer used in the CMS SUB is both very light and extremely rigid for a neutral and distortion-free response. This incredible weight-to-rigidity ratio is obtained by applying a thin layer of hollow glass spheres on top of a cellulose-based cone. The high excursion capabilities of the CMS SUB woofer offer tight and controlled bass, able to reproduce even the most minute detail. The CMS SUB woofer was designed to be extremely efficient, to make the most out of amplifier headroom, making sure that you can hear the slightest changes to compression settings.





Specifications



Frequency response (+/-3dB) :
30Hz - 250Hz


Maximum SPL :
113dB SPL (peak @ 1 m)

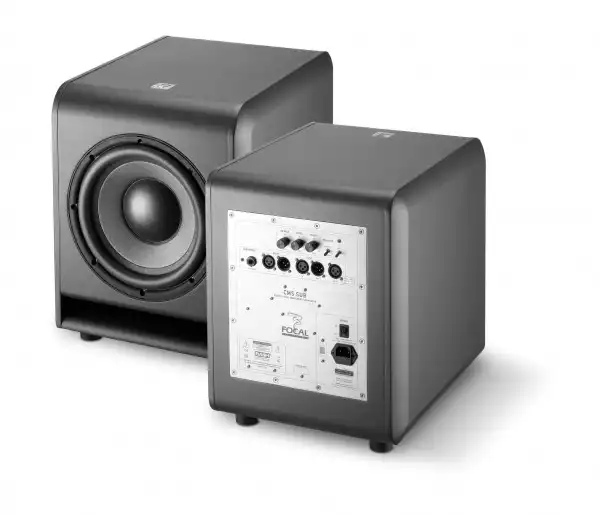

Input :


Left, Right, LFE Electronically balanced / 10kOhms Female 3 pins XLR Variable Output : Left, Right Male 3 pins XLR in parallel on inputs



HF amplifier stage :
300W rms, BASH® technology



Electric supply :


230V (1.6A fuse rating) or 115V (3.15A fuse rating) IEC inlet and detachable power cord




Adjustment :


Sub level (sensitivity) adjustment Lo-pass frequency adjustment Phase adjustment Polarity switch Mute External Mute (controlled by external footswitch)




Indicators :


Power on Mute External Mute



Transducers :
Polyglass, high excursion Focal, 270mm (11") drive unit


Construction :
1" (22mm) MDF panels with internal braces



Finish :


Dark grey vinyl



Dimensions with spikes :
435.5mm x 366mm x 440mm (17.1" x 14.4"x 17.3")


Net weight :
23kg (50.7lb)
