JBS AUDIO WMX 30 PILOT
Garantiramo najnižu cijenu na tržištu!
U slučaju da pronađete isti proizvod po povoljnijoj cijeni,
molimo Vas da nas kontaktirate na:
info@player.hr
System with wireless microphones VHF transmitter and a head microphone 200 MHz.Radio microphones and wireless microphones systems Karsect is a leader in quality price ratio.Carrier Frequency 170-260MHzHarmonic and Spurious Emission> 55dBPower Current <25mASensitivity (S / N 12dB)-105dBmAudio Dynamic Range 100dBFrequency Responce 50Hz-15KHzT.H.D. <0.5%Signal / Noise Ratio 90dB

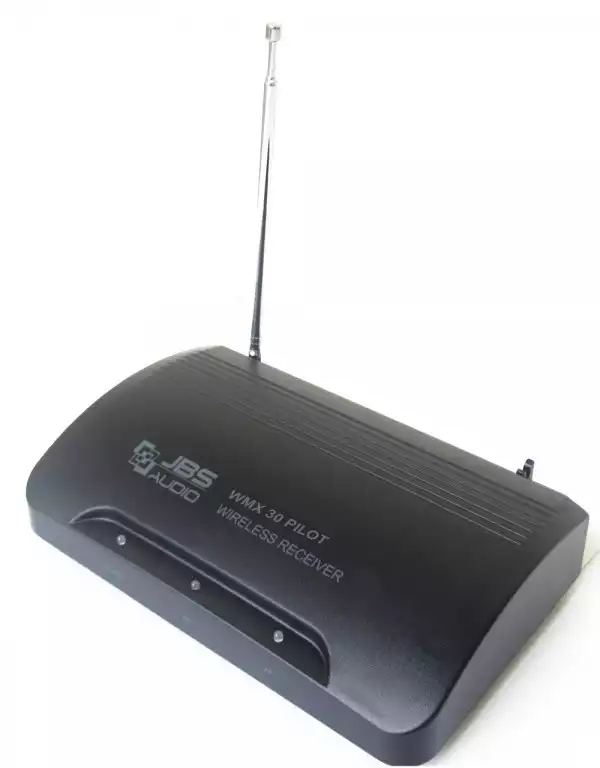

WMS 30 PILOT RECEIVER SPECIFICATION
CARRIER FREQUENCY VHF 170-260MHzFREQUENCY STABILIZATION LESS THAN 0.002% DYNAMIC RANGE MORE THAN 90dB TOTAL HARMONIC DISTORTION LESS THAN 0.5% FREQUENCY RESPONSE 50Hz-15KHz±3dB AUDIO OUTPUT LEVEL 0-300mV POWER SUPPLY 120V AC ADAPT POWER REQUIREMENTS 12-18V DC NOMINAL SIGNAL/NOISE RATIO MORE THAN 90dB IMAGE AND SPURIOUS REJECTION MORE THAN 80dB BORDER UPON CHANNEL REJECTION MORE THAN 85dB RECEIVING SENSITIVITY -105dBm
Maximum range up to 265 ft. (80meters) typical(depending on site conditions);up to 490 ft. (150meters) optimum line-of -sight

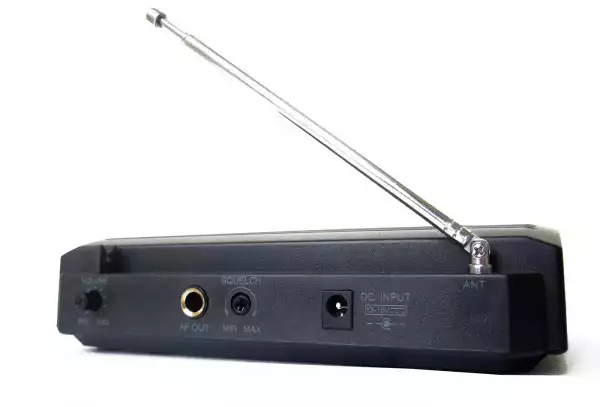

FIXED RECEIVER POWER SUPPLY: 120V or 230V AC ADAPT POWER REQUIREMENTS: 12-18V DC NOMINAL SIGNAL/NOISE RATIO: MORE THAN 90dB IMAGE AND SPURIOUS REJECTION: MORE THAN 80dB BORDER UPON CHANNEL REJECTION: MORE THAN 85dB RECEIVING SENSITIVITY: -105dBm DIMENSIONS: 17.8*11.8*4cm
|

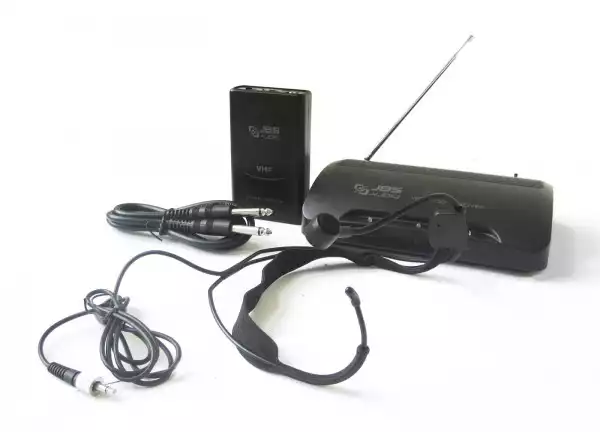

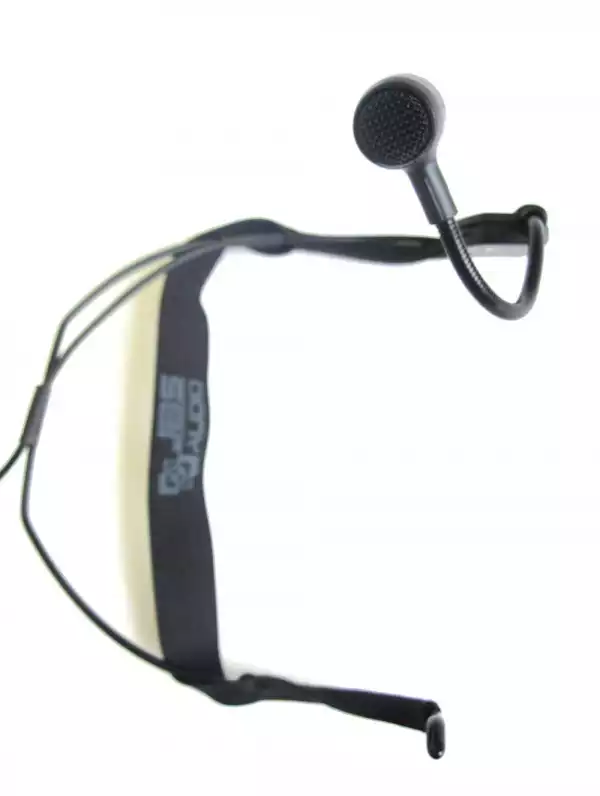

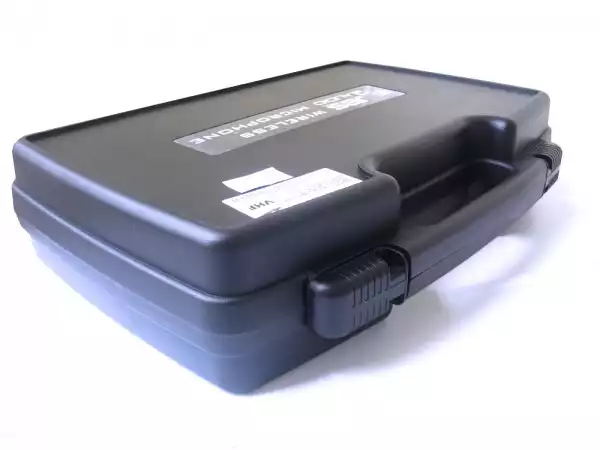

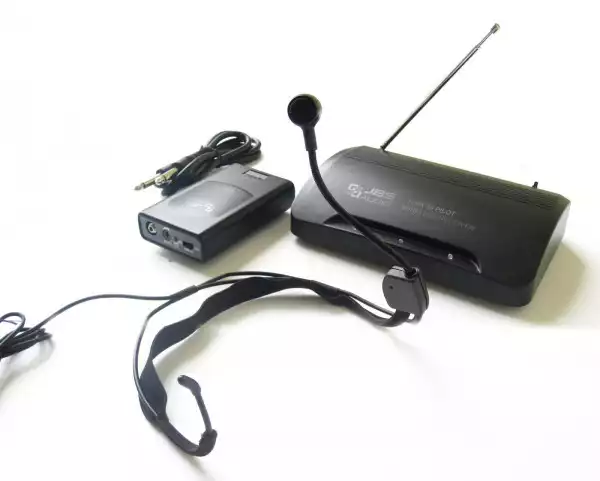

VHF - Single frequency - Pilot microphone + Including plastic CASE! System with wireless microphones VHF transmitter and a head microphone 200 MHz.
Maximum range up to 265 ft. (80meters) typical(depending on site conditions);up to 490 ft. (150meters) optimum line-of -sight
FIXED RECEIVER |
WMS 30 PILOT
