JBSYSTEMS MD 3010
Garantiramo najnižu cijenu na tržištu!
U slučaju da pronađete isti proizvod po povoljnijoj cijeni,
molimo Vas da nas kontaktirate na:
info@player.hr

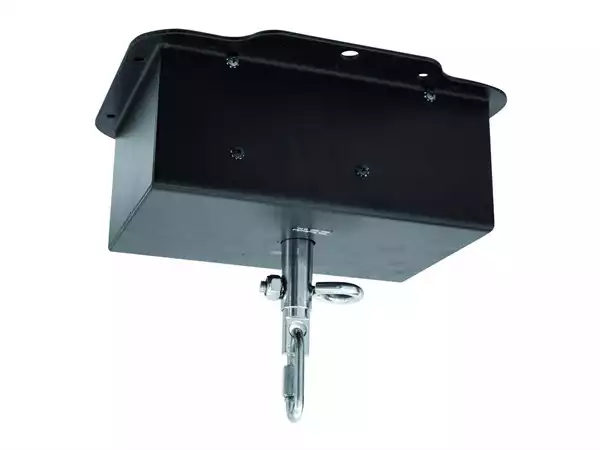

Mirror ball motor for 75cm mirror balls
Features: • Suitable for driving mirror balls up to a maximum weight of 40 kg • This weight corresponds with a diameter of 75 cm for the mirror balls • The maximum load always means the mirror ball weight including the mirror ball chain, the safety chain and the fixation material (e.g. screw-on chain link) • One rotation per minute • For professional use, e.g. in discotheques and in public places, the EN DIN 15560 norms have to be considered • The motor always has to be installed with a secondary safety attachment • Before taking into operation for the first time, the installation has to be approved by an expert Technical Data: • Power supply: 230 V AC, 50 Hz ~ • Power consumption: 7 W • Max. load WLL (4-fold): 120 kg • Max. load BGV C1 (8-fold): 60 kg • Max. load BGV C1 (10-fold): 50 kg • Max. load BGV C1 (12-fold): 40 kg • Max. diameter of mirror ball: 75 cm • Rotation-speed: approx. 1 RPM • Dimensions (LxWxH): 280 x 240 x 110 mm • Poids: 5 kg
Mirror ball motor for 75cm mirror balls
Features:
• Suitable for driving mirror balls up to a maximum weight of 40 kg
• This weight corresponds with a diameter of 75 cm for the mirror balls
• The maximum load always means the mirror ball weight including the mirror ball chain, the safety chain and the fixation material (e.g. screw-on chain link)
• One rotation per minute
• For professional use, e.g. in discotheques and in public places, the EN DIN 15560 norms have to be considered
• The motor always has to be installed with a secondary safety attachment
• Before taking into operation for the first time, the installation has to be approved by an expert
Technical Data:
• Power supply: 230 V AC, 50 Hz ~
• Power consumption: 7 W
• Max. load WLL (4-fold): 120 kg
• Max. load BGV C1 (8-fold): 60 kg
• Max. load BGV C1 (10-fold): 50 kg
• Max. load BGV C1 (12-fold): 40 kg
• Max. diameter of mirror ball: 75 cm
• Rotation-speed: approx. 1 RPM
• Dimensions (LxWxH): 280 x 240 x 110 mm
• Poids: 5 kg
