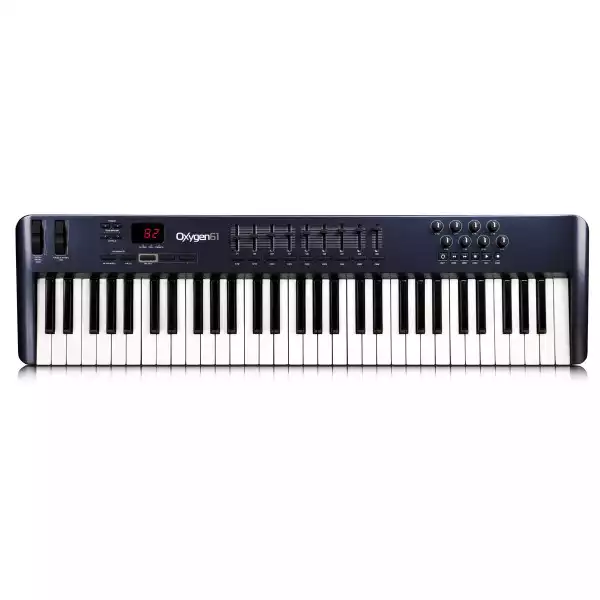

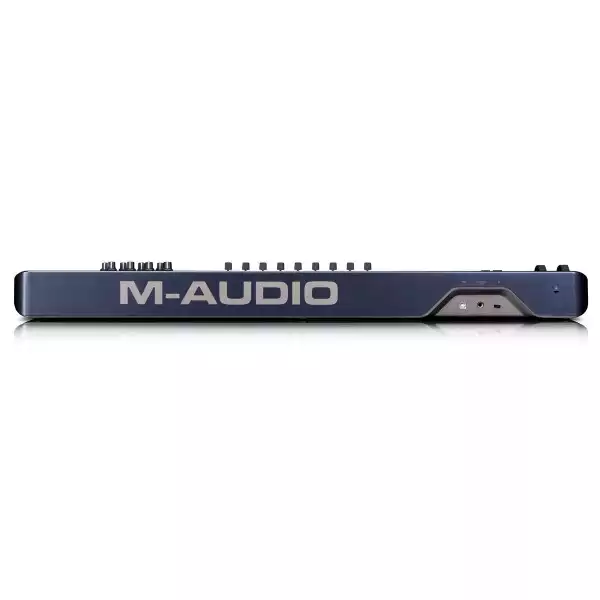

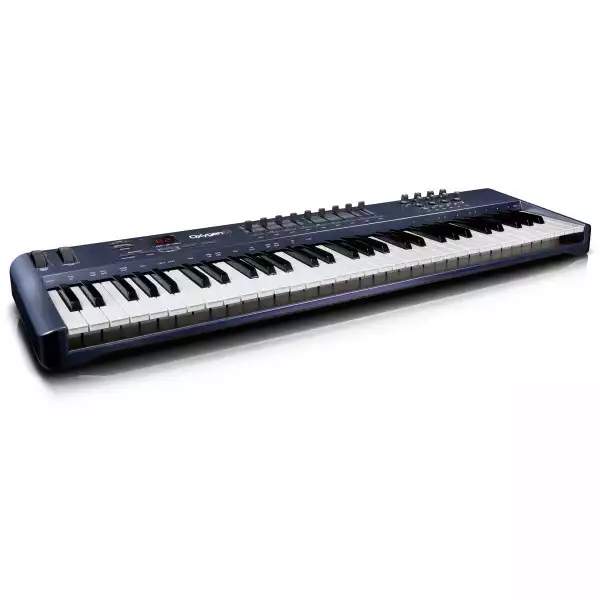

Oxygen 61 - 61-Key USB MIDI Controller

Top Features




bus-powered 61-key USB MIDI controller > easy computer connectivity





8 assignable knobs, 9 assignable sliders > control DAW and virtual instrument parameters





DirectLink mode > instant controller mapping to DAW functions





dedicated transport and track select buttons > streamlined session control





Pro Tools compatible > extends industry-standard functionality





*For a list of DAW applications currently compatible with DirectLink mode, visitwww.m-audio.com/directlink.




The Oxygen 61 USB MIDI controller delivers next-generation functionality from M-Audio®, the leading innovator in mobile music production technology. Oxygen 61 features eight assignable knobs and nine assignable sliders, plus dedicated transport and track select buttons. DirectLink mode automatically maps these controls to common DAW functions* including transport, mixer, track pan and plug-in parameters. Built-in factory presets offer support for popular virtual instruments right out of the box—no complicated setup required. Velocity-sensitive keys and a sleek, compact design round out a portable keyboard that’s perfect for both production and performance. No other MIDI controller in this price range has so much functionality while remaining easy to use.*For a list of DAW applications currently compatible with DirectLink mode, visitwww.m-audio.com/directlink.







Streamlined Session Control

Featuring eight assignable knobs, nine assignable sliders, dedicated transport controls and track up/down buttons, Oxygen 61 gives you total control over your session—allowing you to stay engaged in the creative flow of recording and mixing music rather than being interrupted by the constant back and forth between QWERTY keyboard and MIDI controller. DirectLink mode automatically maps Oxygen 61 controls to common DAW parameters*—while factory presets provide instant mapping to popular virtual instruments including Xpand!™2, Hybrid™, Velvet®, Strike®, Oddity, ImpOSCar and MiniMonsta. Use the dedicated Select buttons to quickly switch MIDI channels and presets for deep tactile control over multitimbral software instruments. Interfacing a MIDI controller with your software doesn’t get any easier than this.
Professional Quality
M-Audio pioneered the category of mobile MIDI keyboard controllers, and we continue to be the best-selling name in the game. In fact, M-Audio controllers are used by more professional producers and players than any other brand on the market. Thanks to continued innovation over the course of nearly a decade, you’ll find that the Oxygen 61 controller has a solid, reliable build—and puts as much musicality into the keyboard as it does into the complement of other MIDI controls.



Pro Tools Compatible
The Oxygen 61 MIDI controller offers out-of-the-box integration with Pro Tools® software—the industry standard DAW found in professional, project and personal studios around the world. With DirectLink, the Oxygen 61 controls instantly map to key parameters in the Pro Tools Mixer, Edit and Transport windows—as well as the powerful suite of virtual instruments bundled with Pro Tools. Together, Oxygen 61 and Pro Tools software provide streamlined workflow in a formidable system with tons of interface options and industry-standard file compatibility.






Full Features






61 velocity-sensitive keys





8 MIDI-assignable knobs





9 MIDI-assignable sliders





6 dedicated transport controls





dedicated track up/down buttons





DirectLink mode automatically maps controls to common DAW parameters





factory presets map controllers to popular music software:

Xpand!2
Hybrid
Velvet
Strike
Oddity
ImpOSCar
Minimonsta







unique Select buttons for on-the-fly step-through of presets, program changes and MIDI channels





4 velocity curves and 3 fixed velocity settings





sustain pedal input





class-compliant with Windows XP, Windows Vista and Mac OS X





USB bus powered



Compatibility






MME





Mac OS X Core MIDI







Minimum System Requirements (PC)






Windows XP (SP3)*





1GHz Intel or AMD**





512MB RAM





Windows Vista 32 , 64bit (SP1) / Win7 32, 64bit





1.6GHz Intel or AMD**





1GB RAM





128MB video card





* Home and Professional Edition only. Windows Media Center Edition is not supported.** CPU may be higher for laptops.





M-Audio suggests you also check the minimum system requirements for your software, as they may be greater than above.







Minimum System Requirements (Mac)






Mac OS X 10.4.11 or 10.5.6





Macintosh G4 1GHz**





512MB RAM





G4 accelerator cards not supported





** CPU may be higher for laptops.





M-Audio suggests you also check the minimum system requirements for your software, as they may be greater than above.






Specifications






MIDI Data from variable controllers:
MIDI Control NumberRPN/NRPNProgram, Bank LSB, Bank MSBPitch BendGM/GM2/XG SysEx Messages





MIDI Data from buttons/switches:
Note OnNote On/Off toggleMIDI CC On/Off toggleProgram, Bank LSB, Bank MSB presetsMIDI Machine Control functionsGM/GM2/XG SysEx messages





weight:
7.5lbs. (3.4kg)





size:
35.7" L x 9.4" W x 3.7" H
