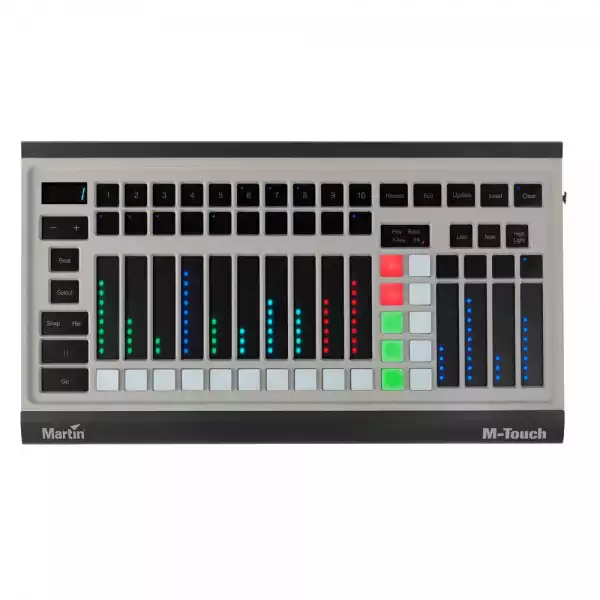

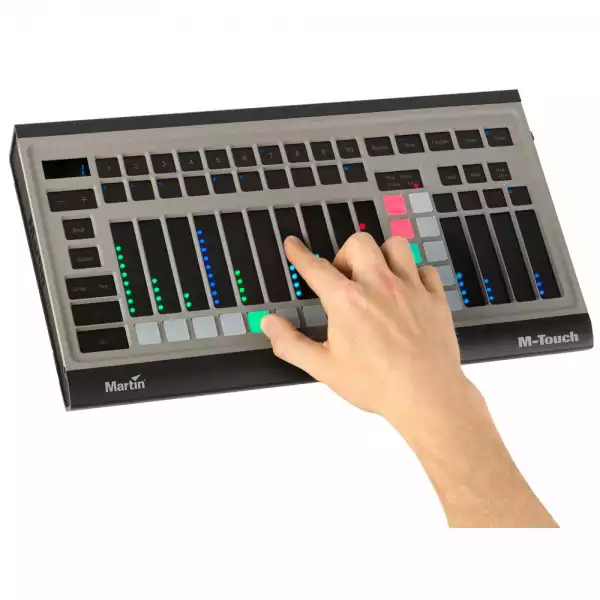

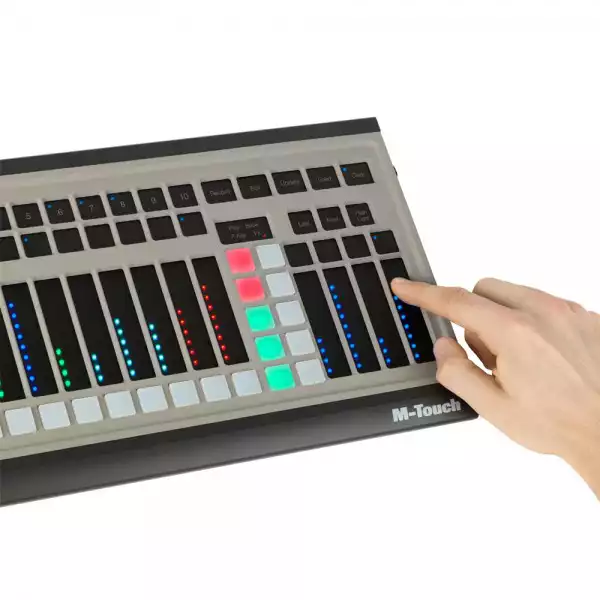

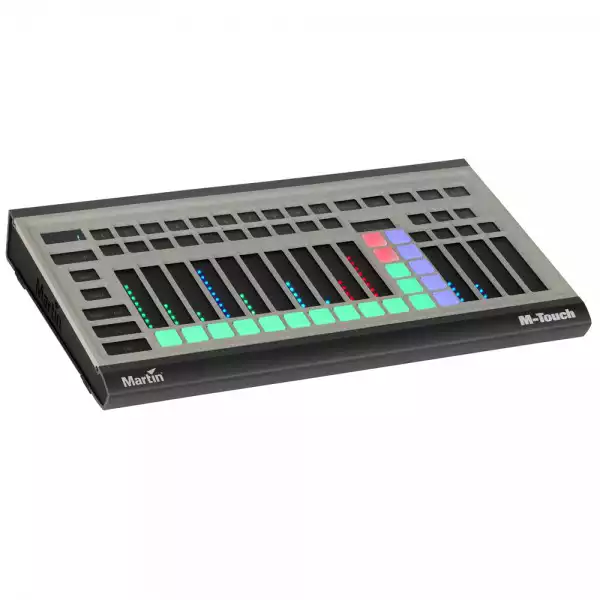

Martin M-Touch is a powerful yet simple control surface for the Martin M-Series controllers, the most affordable professional lighting solutions on the market. Fully compatible with all M-Series consoles and M-PC software, Martin M-Touch is a plug-and-play solution with an innovative control surface like no other lighting console.
14 FSR faders allow control of playbacks and fixture parameters while 20 velocity-controlled pads allow for new types of effects. Additional programming buttons such as Record, Edit, Update, Load and Clear are accessible directly from the M-Touch control panel. Martin M-Touch comes with one DMX 512 Universe for direct control of any compatible DMX device.
14 FSR faders allow control of playbacks and fixture parameters while 20 velocity-controlled pads allow for new types of effects. Additional programming buttons such as Record, Edit, Update, Load and Clear are accessible directly from the M-Touch control panel. Martin M-Touch comes with one DMX 512 Universe for direct control of any compatible DMX device.
Tech Specs
PhysicalLength:394 mm (15.5 in.)
Width:218.5 mm (8.6 in.)
Height:46.5 mm (1.8 in.)
Weight:1.5 kg (3.3 lbs.)
Width:218.5 mm (8.6 in.)
Height:46.5 mm (1.8 in.)
Weight:1.5 kg (3.3 lbs.)
Control/User InterfaceBank Navigation Up/Down with numerical display
Main Go section::Snap, Release, Pause and Go buttons
Command Buttons::Record, Edit, Update, Load, Clear
Multifunction Mode Select button
Fixture Selection buttons::Last, Next, Highlight
4 x Parameter Select buttons
4 x Parameter Adjust touch faders
10 x Function velocity pads
Main Go section::Snap, Release, Pause and Go buttons
Command Buttons::Record, Edit, Update, Load, Clear
Multifunction Mode Select button
Fixture Selection buttons::Last, Next, Highlight
4 x Parameter Select buttons
4 x Parameter Adjust touch faders
10 x Function velocity pads
Playback10 x Playback touch faders with 3 buttons
(2 x touch pad, 1 x velocity pad)
(2 x touch pad, 1 x velocity pad)
System integrationUnlocks 1 x DMX universe when connected to M-PC™
ConstructionHousing:Aluminum, steel, plastic
Mounting:VESA 75x75, 100x100
Security::K-Lock locking slot
IP Rating::IP20
Mounting:VESA 75x75, 100x100
Security::K-Lock locking slot
IP Rating::IP20
ConnectionsDMX data link::1 x 5-pin locking XLR
Windows PC:USB 2.0
Windows PC:USB 2.0
ElectricalPower source::5 VDC over USB
Maximum current:500 mA
Maximum current:500 mA
ThermalOperating temperature::0° – 50° C (32° – 122° F)

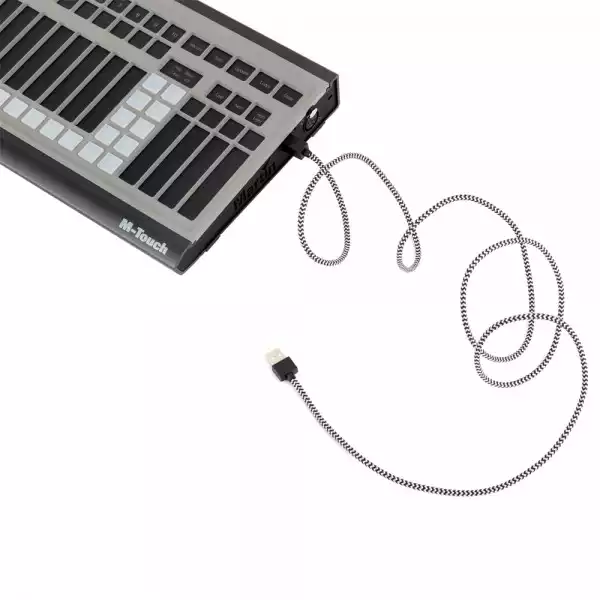

Included ItemsUSB cable 1.5m (4.9 ft.)
Ordering InformationMartin M-Touch:P/N 90737040
