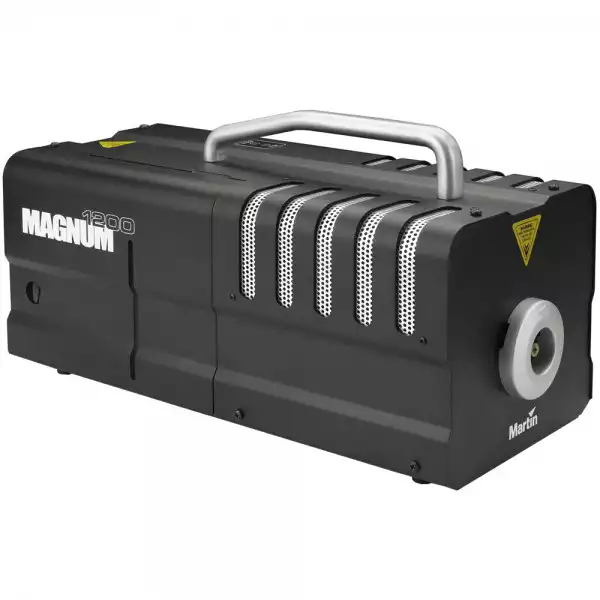

The Magnum 1200 delivers a heavy punch of fog. It's built tough to meet the rugged demands of 24/7 nightlife.With the option to add a DMX controller, the Magnum 1200 uses an 850 W heat exchanger to produce 290 m3 of fog.
ToughThe delivery of a continuous and even level of fog and the incorporation of soft-start electronics means that the Magnum 1200 operates at a very low noise level. Built rugged yet lightweight and conveniently portable, the Magnum 1200 offers substantial cost and maintenance benefits over a long operational life.
Remote controlSupplied with a timer remote control and featuring the same machine-saving overheat protection as Martin's larger machines, the economically-priced Magnum 1200 will provide years of maintenance-free operation.

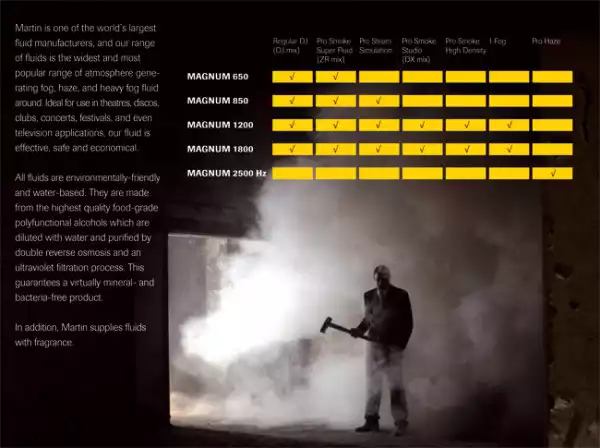

Fluid optionsThe Magnum 1200 has a 2.3 liter fluid capacity, and a variety of fluid options are available for different applications. Martin offers the widest range of atmosphere-generating fog fluid around. Specially formulated and water-based, all fluids are effective, safe, and economical. * Continuous output * 290 m³/min fog output * 850 W heat exchanger * 8 min heat-up time * Optional flying kit * 2.3 liter fluid capacity * Different fluid options for different applications * DMX with optional DMX interface module * Internal remote control storage * Timer and output level remote control PhysicalLength: 450 mm (17.7 in.)Width: 205 mm (8.1 in.)Height: 244 mm (9.6 in.)Dry weight: 10 kg (22.0 lbs.)
PerformanceMax. fog output (approx.): 290 m3 per minuteMax. operating time at full output (approx.): 90 minutesOperating time: Continuous, automatic level adjustmentWarm-up time (approx.): 8 minutes
Control and ProgrammingControl options: Remote control (supplied), DMX with optional DMX interface moduleRemote control features: Instant or timer-controlled variable output
ConstructionHousing: Steel & aluminumHeat exchanger: 850 W, direct thermal protection
Fluid SystemFluid pump: Oscillating piston, high pressureOnboard fluid capacity: 2.3 lFluid consumption at peak output: 50 ml per minute
InstallationOrientation: Floor or flying kit
ConnectionsRemote control: RJ-45DMX (with optional DMX interface): 3-pin locking XLRPower cable entry: 3-pin IEC
ElectricalAC power (EU models): 220-240 V nominal, 50 HzAC power (US models): 110-120 V nominal, 60 HzMain fuse (220-240 V power): 5 AT (slow blow)Main fuse (110-120 V power): 10 AT (slow blow)
ThermalMaximum ambient temperature (Ta max.): 40° C (104° F)Exterior surface temperature, steady state: 50° C (122° F)Max. nozzle temperature: 200° C (392° F)
