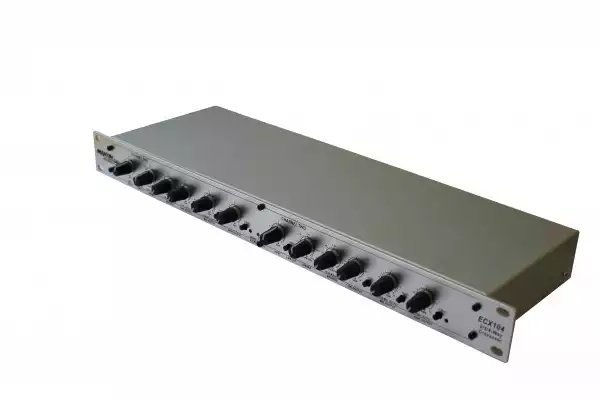

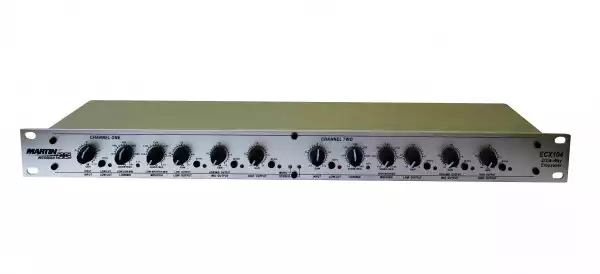

MARTIN WISMAN ECX 104
Garantiramo najnižu cijenu na tržištu!
U slučaju da pronađete isti proizvod po povoljnijoj cijeni,
molimo Vas da nas kontaktirate na:
info@player.hr
World class performance 24dB per octave Linkvitz-Riley filters
Absolutely flat summed amplitude responze, zero phase difference
Separate sub-woofer section with independent frequency control
Individual output level controls for all bands
individual phase reverse switches for instant phase correction
Switchable 40Hz low filter on each input for low-frequency driver protection

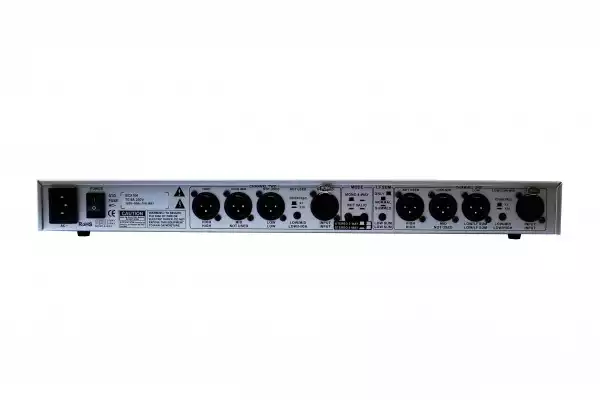

servo-balanced, XLR connectors for all inputs and outputs
Ultra low-noise audio operational TI084 amplifiers for outstanding sound performance
High-quality components and exceptionally rugged construction for long life and reliability
INPUTS
Connectors XLR
Type Electronically servo-balanced, HF filtered
Impendance >50 Khom @ balanced, >25 Khom @ unbalanced
Max input level +22dB
CMRR >40dB (typical), >55dB @ 1KHz
OUTPUTS
Connectors XLR
Type Electronically servo-balanced
Impendance 200 Khom @ balanced, 100 Khom @ unbalanced
Max output level +20dB @ balanced, +26dB @ unbalanced
PERFORMANCE
Brandwith 20Hz to 20Khz +/-0.5dB
Frequency response 5Hz to 60Khz +/-3dB
Signal noise ratio ref: +4dB, 20Hz to 20Khz, unweighted
Mode stereo mono
Low output >93dB >93dB
Mid output 95dB
High output >91dB >91dB
Crosstalk High to Low <93dB
High to mid <94dB
Mid to low <95dB
CROSSOVER
Filter type Likwitz-Riley, 24db/octave, state-variable
Stereo mode frequencies x1 x10
Low/High 45 to 960 Hz 450Hz to9.6Khz
Mono mode frequencies x1 x10
Low/mid 45 to 960 Hz 450Hz to 9.6Khz
Mid/High 45 to 960 Hz 450Hz to 9.6Khz
POWER SUPPLY
Mains voltage AC110V/220V;120V;220V;230V Refer to the nameplate on the rear panel
power consumption <15W
Fuse T500mA 250V
Mains connection Standard IEC receptable
PHYSICAL/WEIGHT
Dimensions apprpx 44.5mm x 482.6mm x 217mm
Weight approx 3Kg
