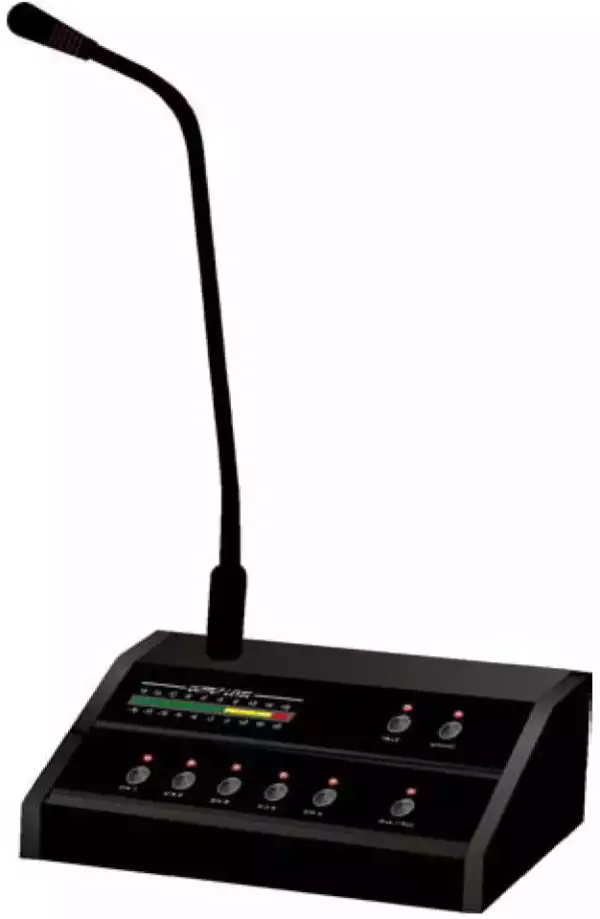

5 Zone Paging Console

GMZ 100 is remote paging console with 5 zone mixer amplifier
TPM 240Z, whose communication distance up to 1kms. The
paging console could be power supplied by the mixer within 50 meters,
while extra DC 24V power supply is needed when distance is longer than
50 meters. The paging console provides a direct zone and paging control over
the amplifier's output.

GMZ 100 Features
* Remote paging console with input priority over Mic1 and siren/chime except  for EMC input and TEL input
* Condenser microphone type
* 2/4 tone selectable pre-announcement chime
* Each 5 zone, all zones, talk and chime functional buttons.
* Volume control over chime, Mic and master
* 10 segment LED amplifier output level meters
* DC power socket and DC 24V input
* Extra DC power supply is needed when communication distance is more than 50 meters
Specifications




Model




GMZ 100



Mic Input Section
(Mic 1~4 In@1KHz)


Input Sensitivity
Impedance


-50dB/600Ω balanced




S/N Ratio


Better than 65dB




Frequency Response
 (±3dB)


50Hz~16KHz, -3dB




THD


Less than 0.1%




Output


0.775V/600Ω




Power Supply


DC 24V




Weight


960g (Without Microphone)




Dimensions


197x115x43.5mm

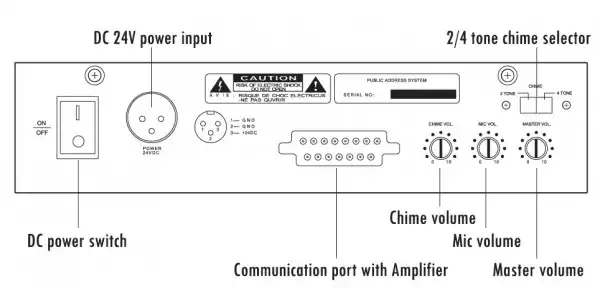

Rear Panel
